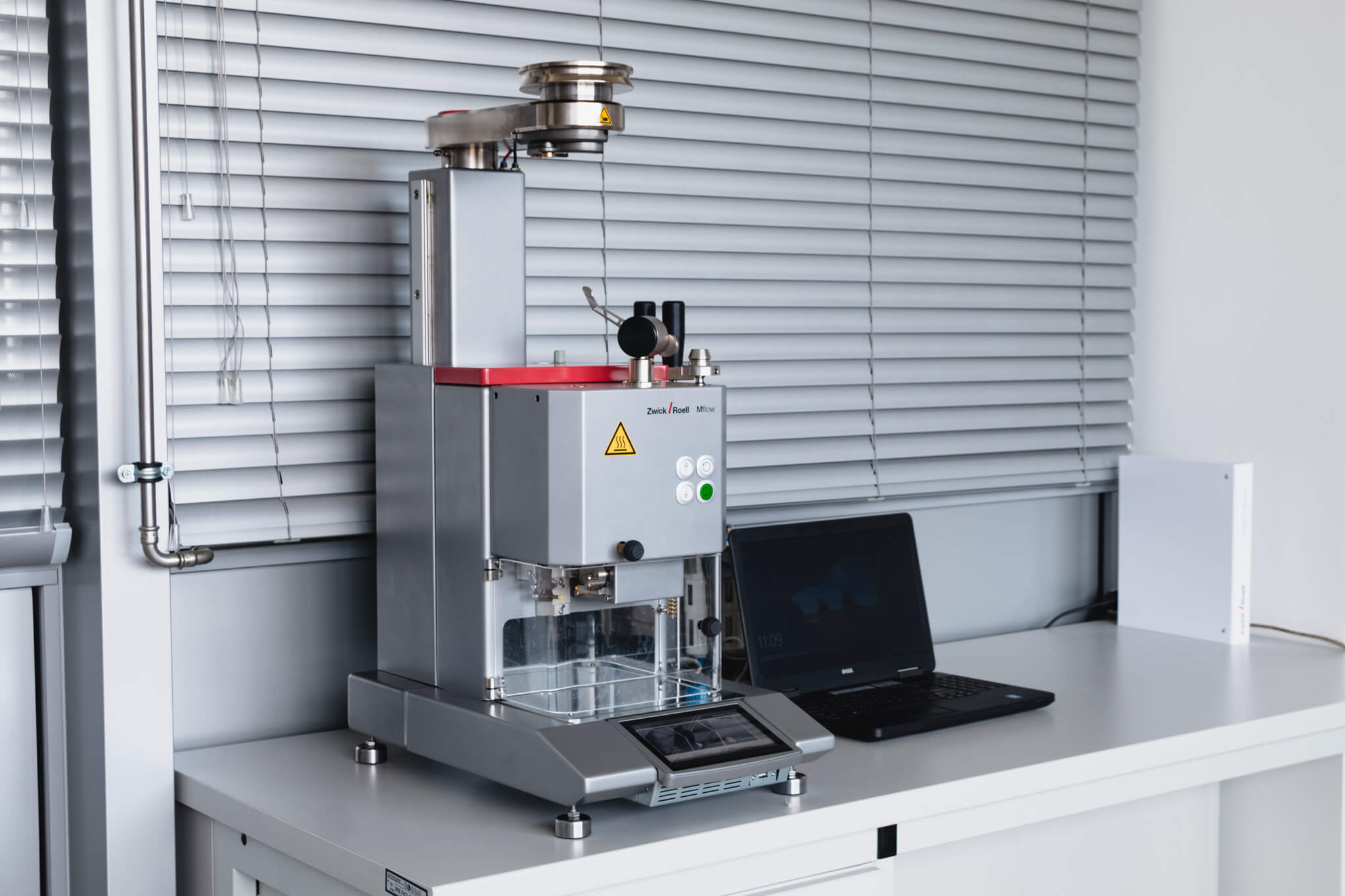

ZwickRoell Mflow extrusion plastometer

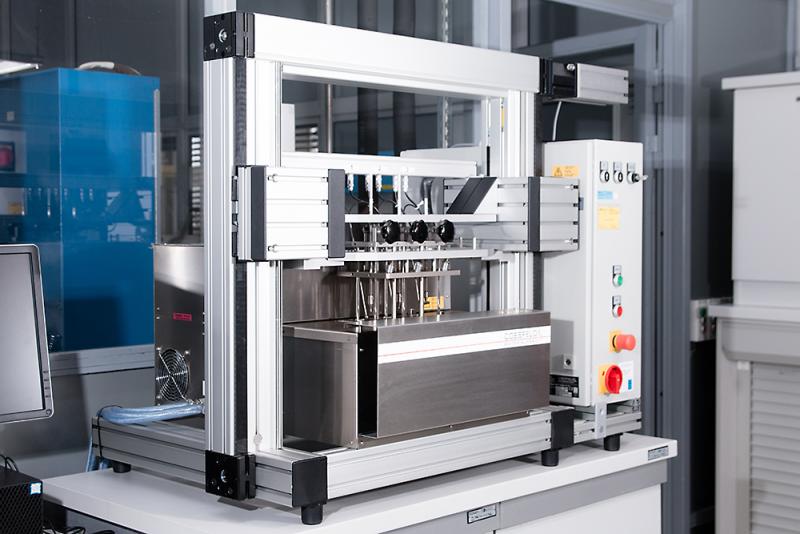

Coesfeld Vicat/HDT test device

This device determines the softening temperature (VICAT) of thermoplastic materials, as well as the heat deflection temperature (HDT) of fibre-reinforced plastics, thermosets or hard rubber.

Fischer coating thickness meter

Fischer Dualscope FMP40 coating thickness meter

This universal instrument enables measurement of coatings on steel and iron (F) and on non-ferromagnetic metals (NF) to be performed, due to automatic substrate material recognition and the integration of both measurement methods. Furthermore, it enable measuring duplex coatings (lacquer/zinc) on steel simultaneously, displaying the values for the lacquer and zinc coatings individually.

The image above presents our meter with the FGAB1.3 coating thickness probe, which determines the thickness of materials through the magnetic induction method (on ferromagnetic substrates). This method is in accordance with the standards set forth in PN-EN ISO 2178:2016-06, PN-EN ISO 2361:1998, and PN-EN ISO 2808:2020-01, method 7B2.

Additionally, BOSMAL possesses the FTD3.3 coating thickness probe, which determines coating thickness via the eddy current method (on non-ferromagnetic substrates), in accordance with the standards set forth in PN-EN ISO 2808:2020-01, method 7C.

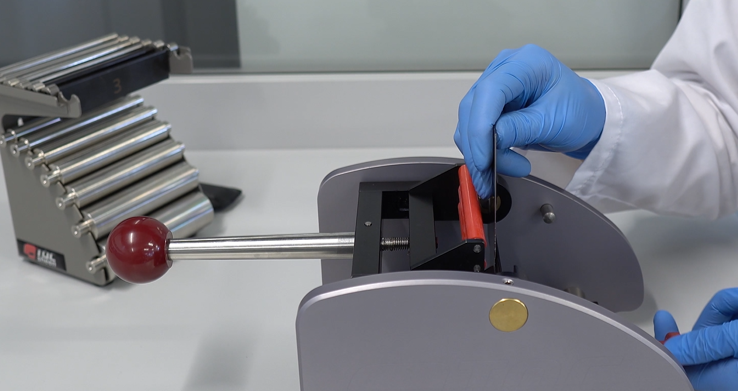

Flexibility strength tester according to ISO 1519

This tester is used to determine the elasticity, elongation and adhesion of coatings during a bending test. The tester is designed to meet the requirements of ISO 1519. A 50×100 mm test plate is deformed over a shaft of specified diameter. The evaluation of the coating for cracks and/or separation from the substrate is carried out visually using an illuminated magnifying glass at 10× magnification.

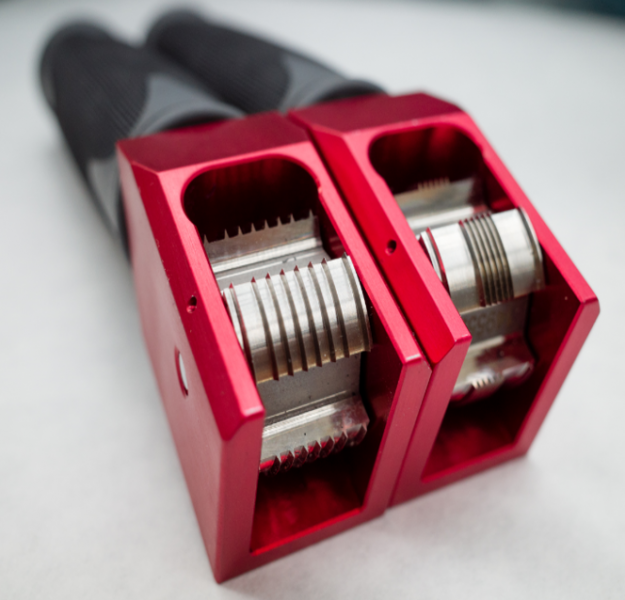

Single- and multi-blade knives for cross-cut testing

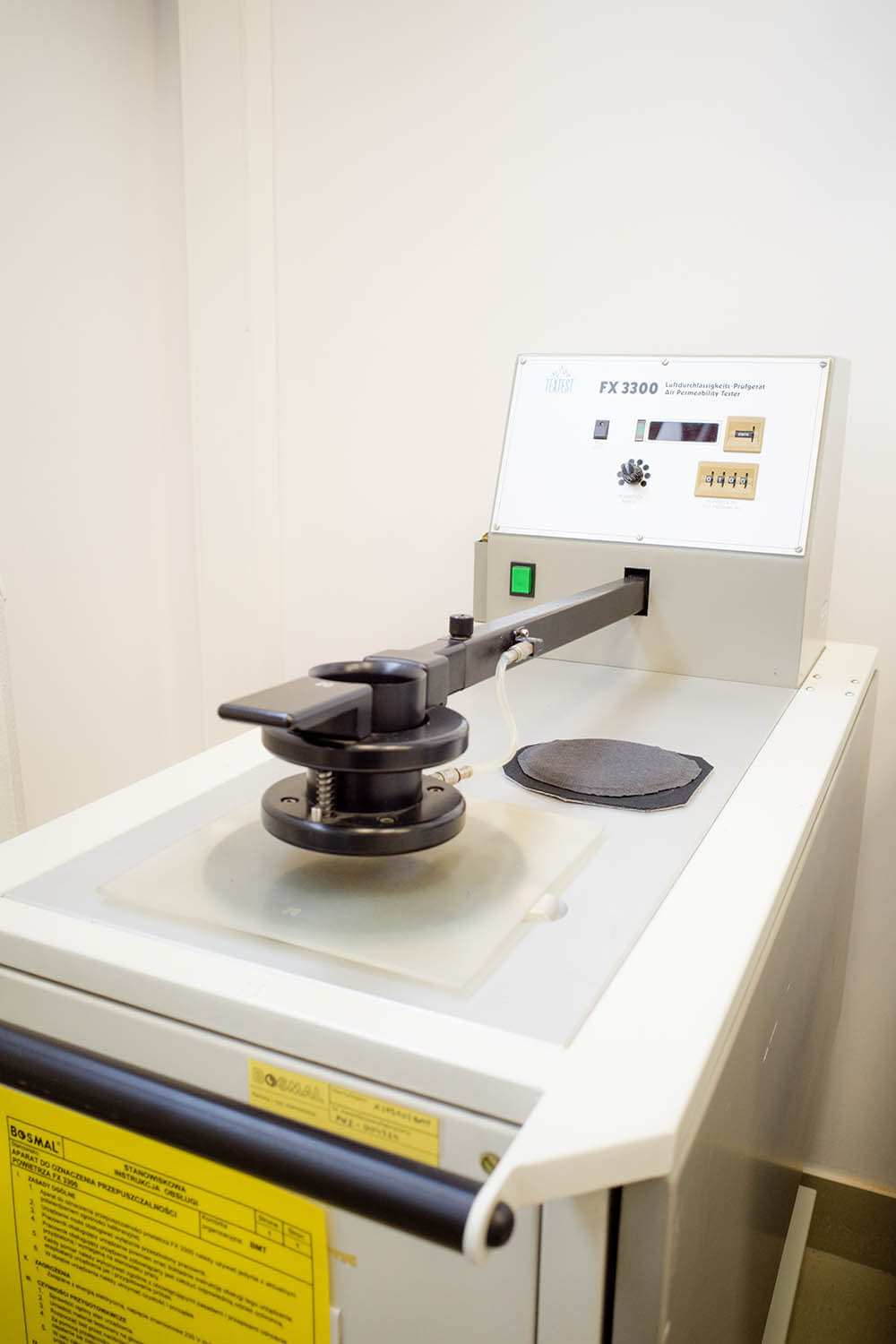

Textest AG FX 3300 air permeability tester

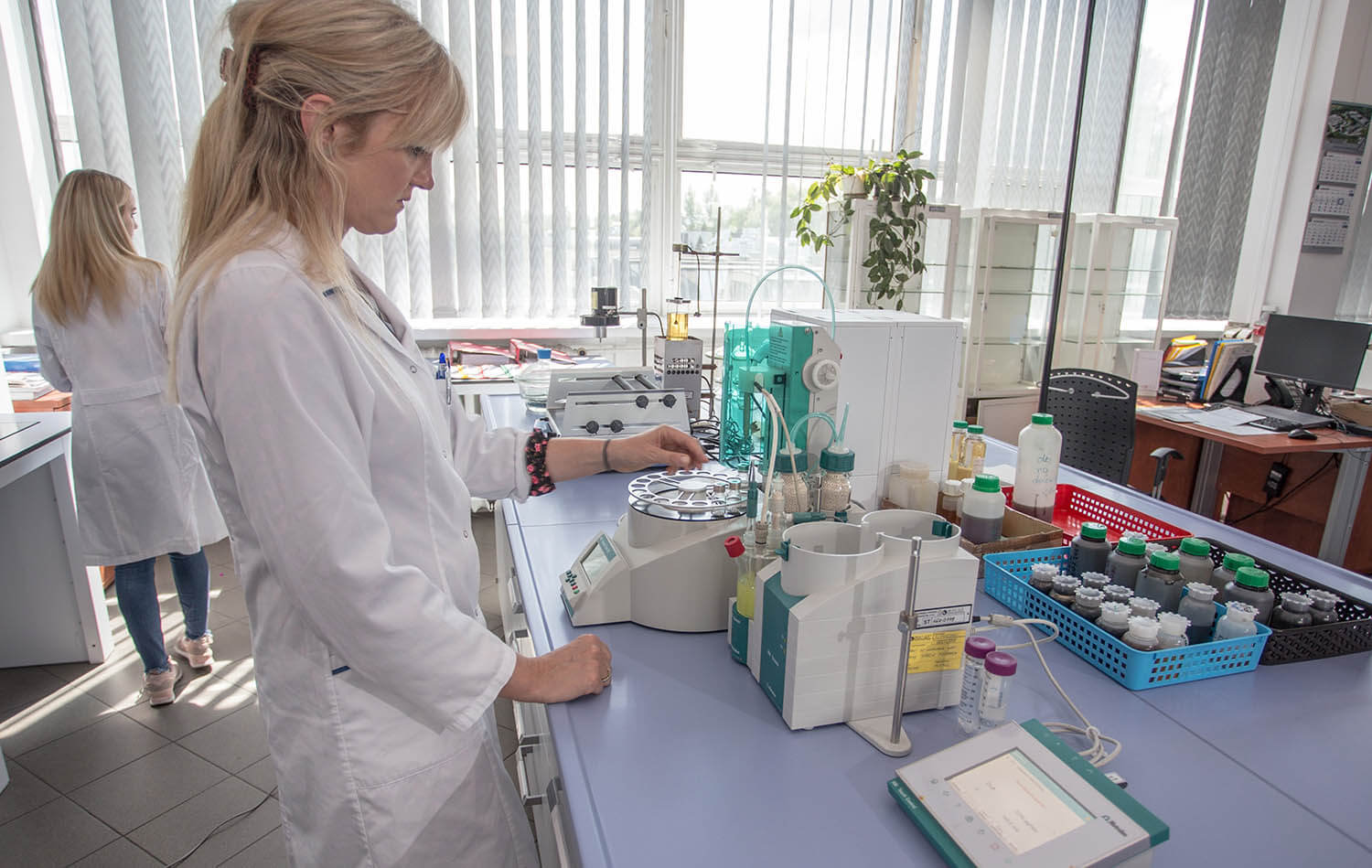

Apparatus for the determination of water via the Karl Fischer method

The device enables the determination of water content by volumetric and coulometric methods, at any concentration level (ppm/%). It allows the determination of water in samples of plastics, rubbers, composites, lubricants, petroleum products, paints, adhesives, etc., with the possibility of gas flow (10-150 mL /min; N2, dry air or other gas).

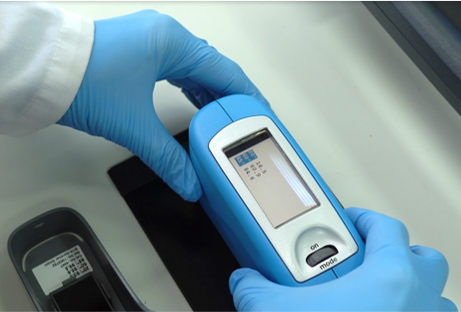

BYK micro-Tri-gloss 20°/60°/85°

This device combines 20°, 60° and 85° in one glossmeter.

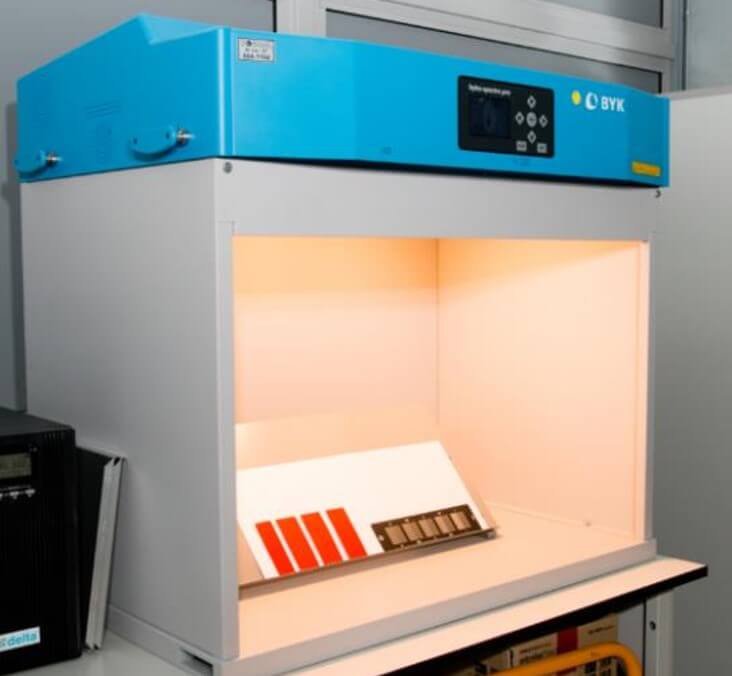

BYK Byko-spectra chamber for visual assessment of colour

Chamber for visual assessment of colour, also using a grey scale.
The chamber is equipped with 7 light sources.

Equipment for testing the impact resistance of products

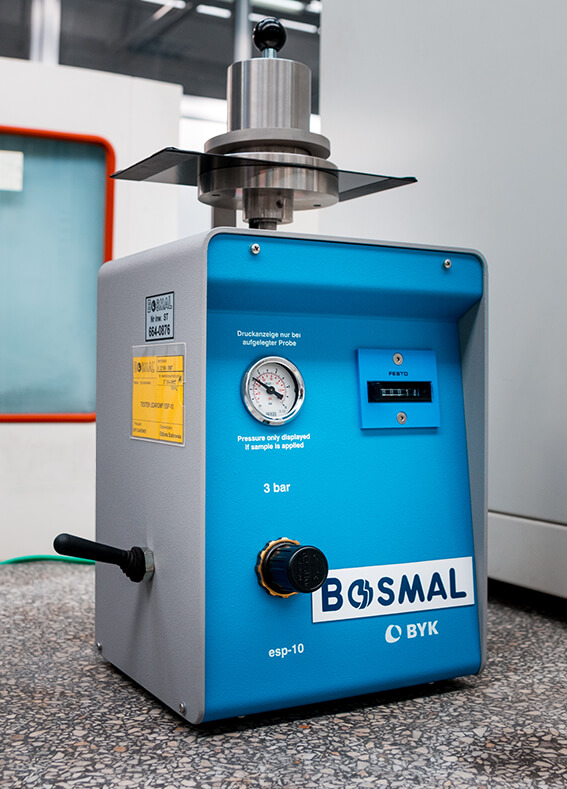

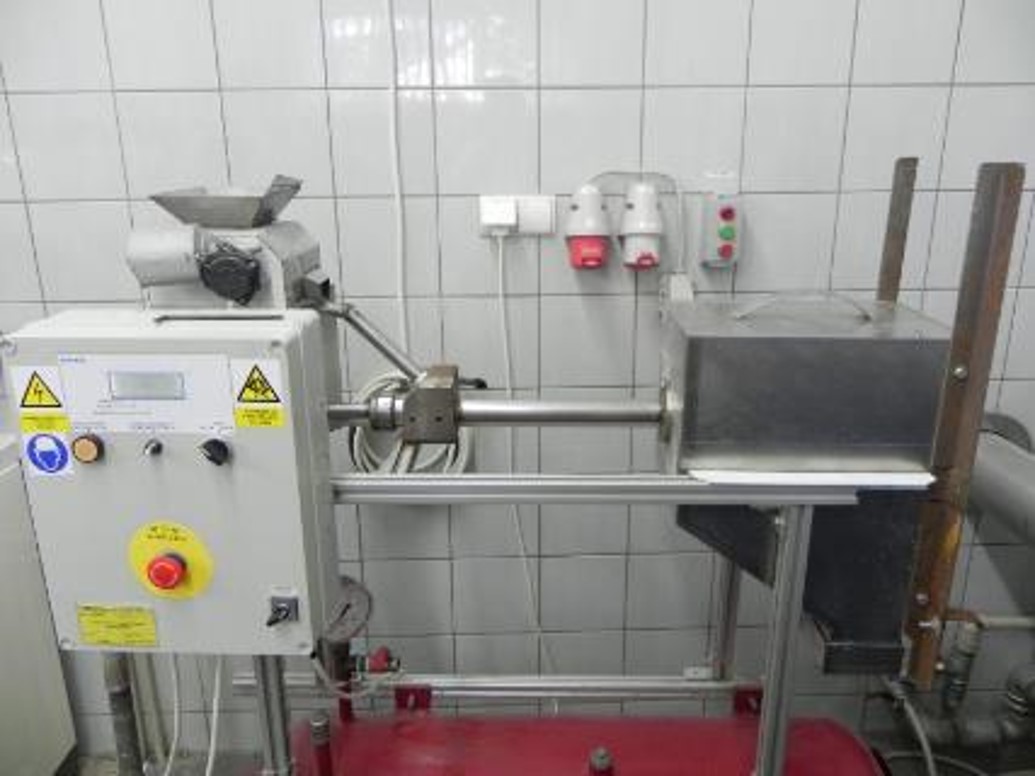

Device for testing the impact resistance of products – the so-called single impact test

Device for testing the impact resistance of products – the so-called multi-impact test

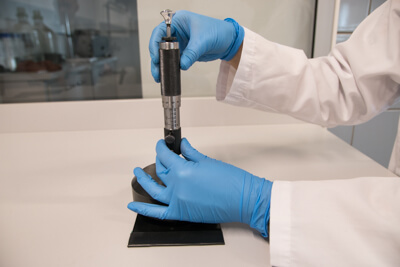

Device for testing the impact resistance of products – the so-called pistol test

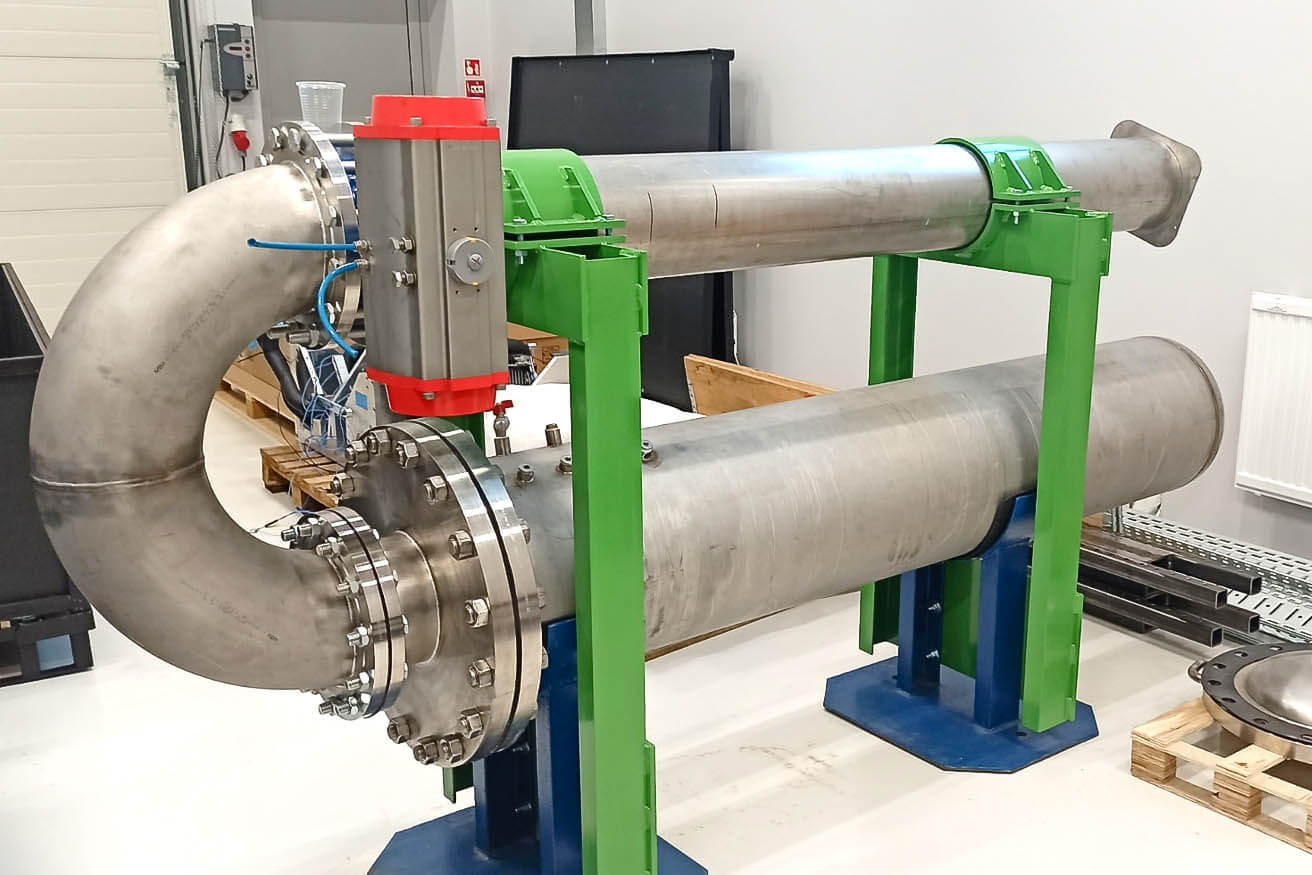

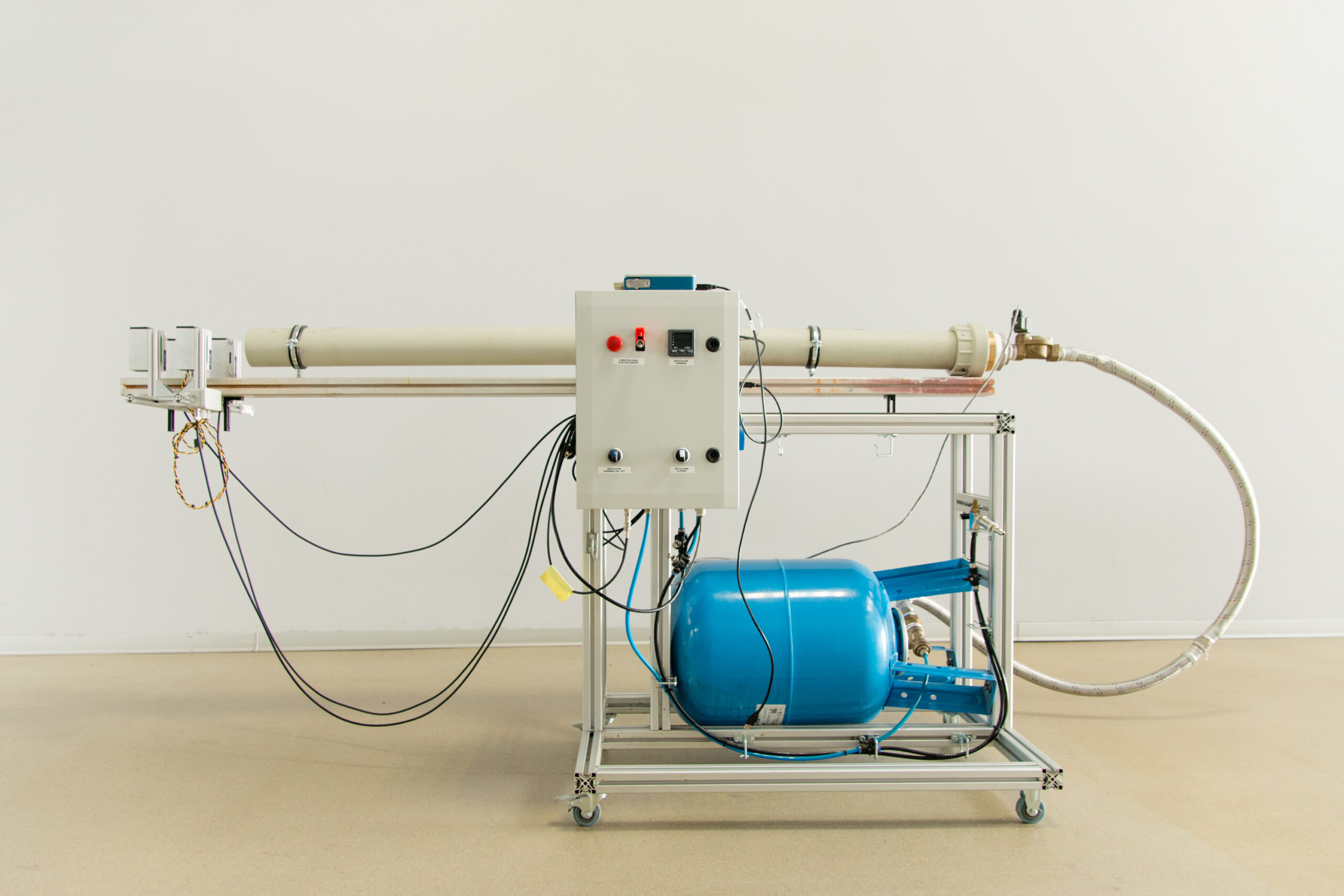

Device for testing the impact resistance of products – tests for resistance to hail

Device for testing the impact resistance of products – tests for resistance to ice block impact

Equipment for testing of coating resistance to abrasion and scratches

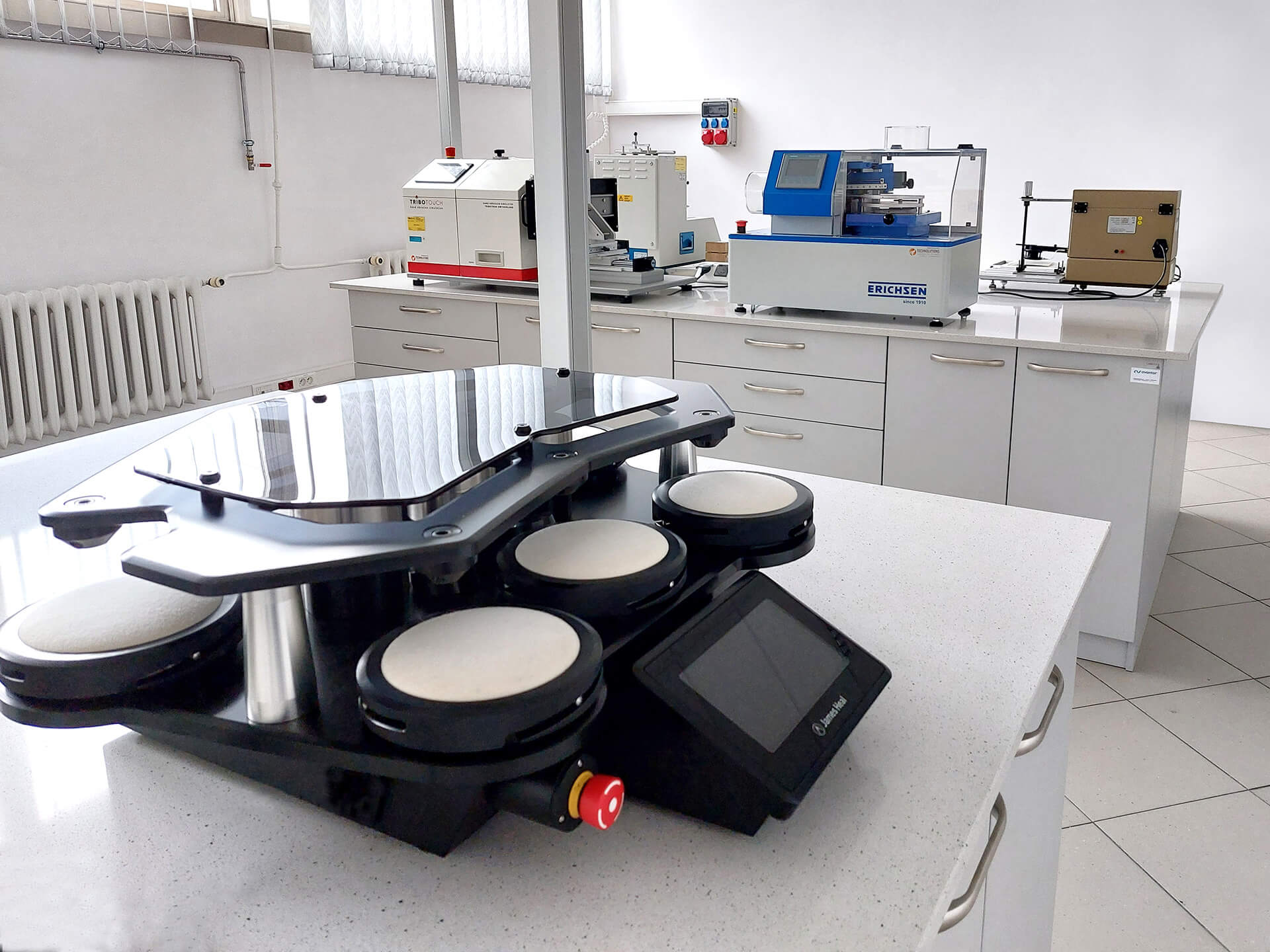

Abrasion resistance – Martindale test – Martindale Abrasion & piling tester

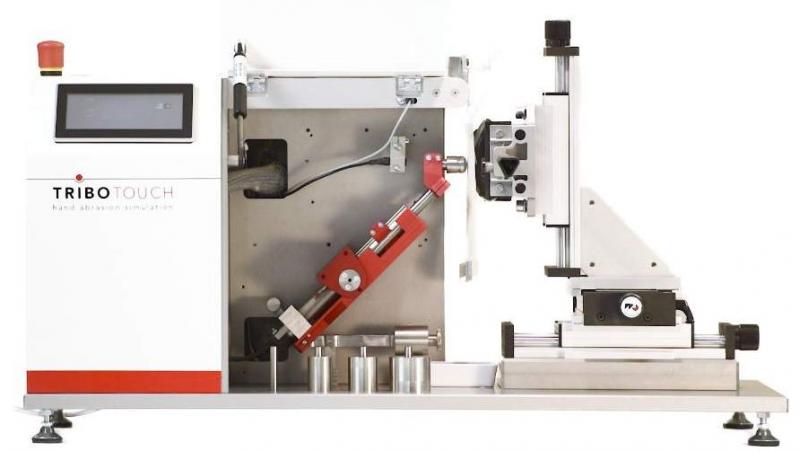

Simulation of rubbing with fingers – Tribotouch device

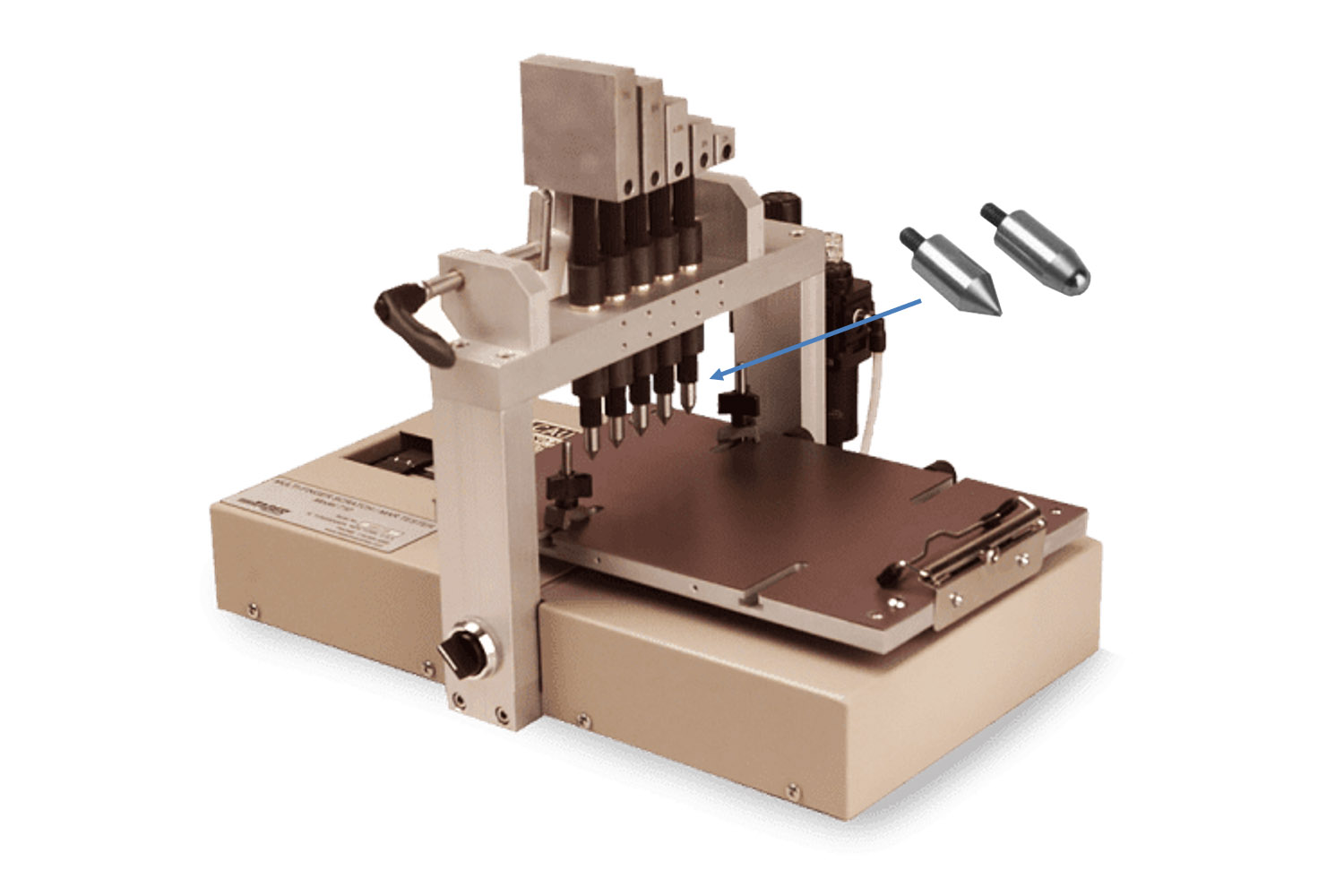

Scratch resistance – Taber Multi-Finger tester

Scratch resistance – Erichsen scratch resistance tester

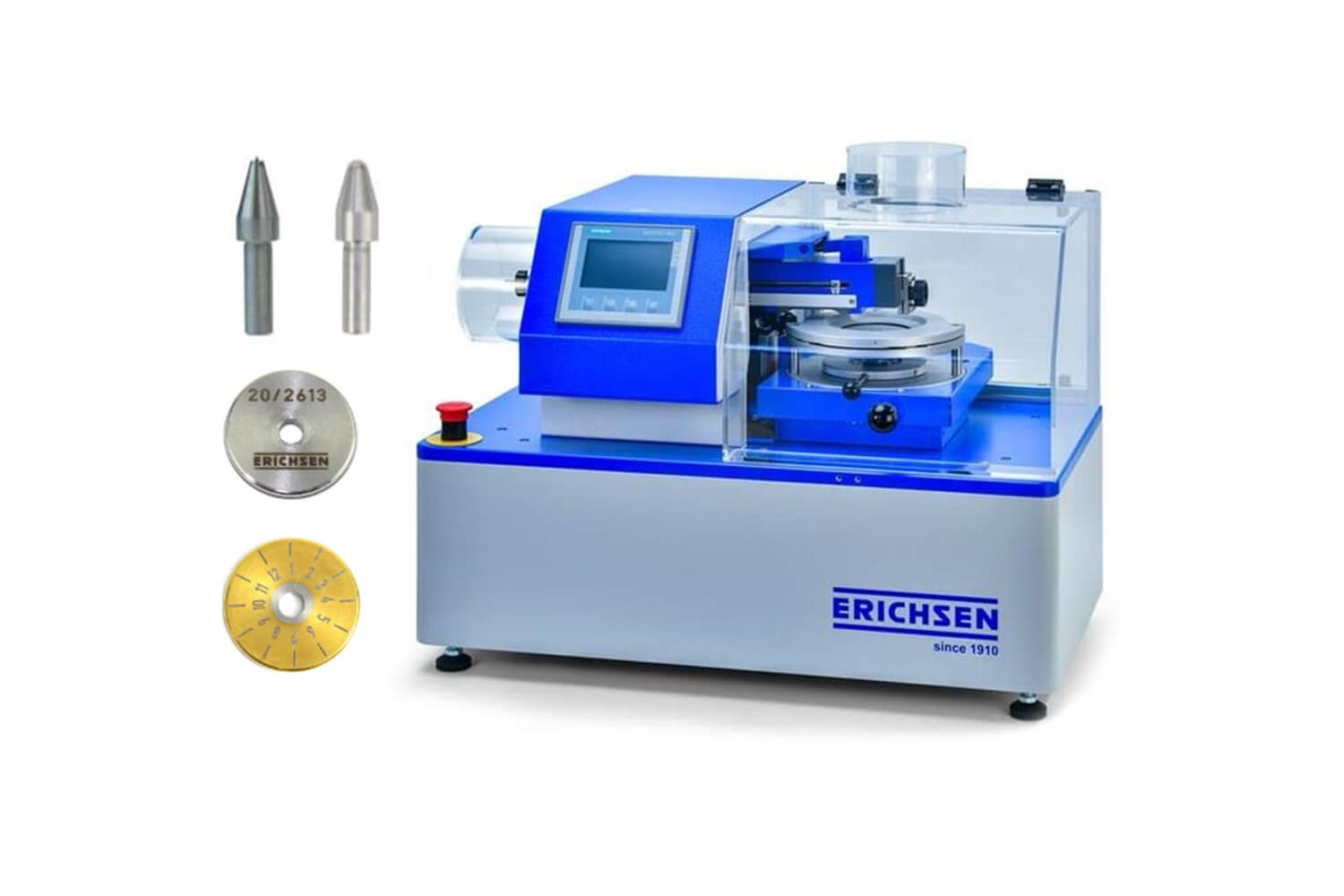

Erichsen 430P-Smart scratch resistance tester

Abrasion test apparatus – Linear abrasion resistance tester – Taber Linear Abraser

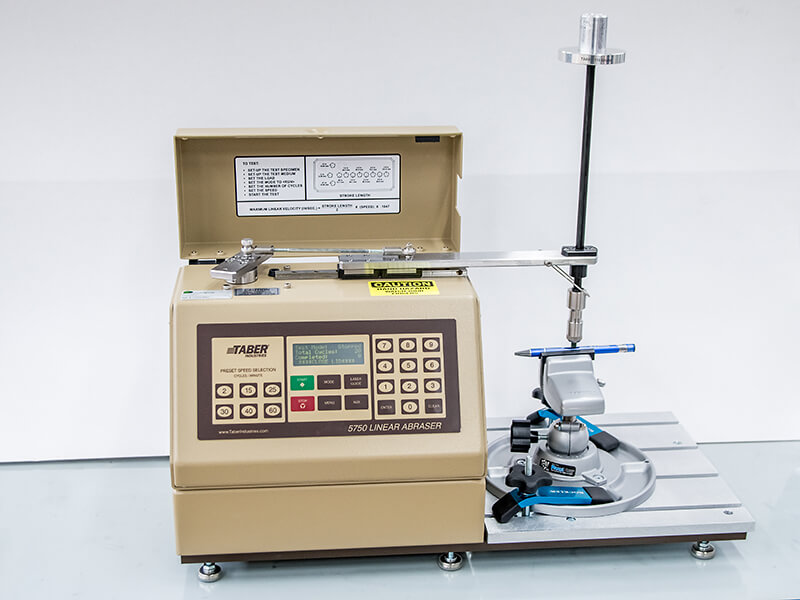

Taber Model 5750 Linear Abraser

Abrasion test apparatuses – Rotational abrasion tester – Taber Abraser

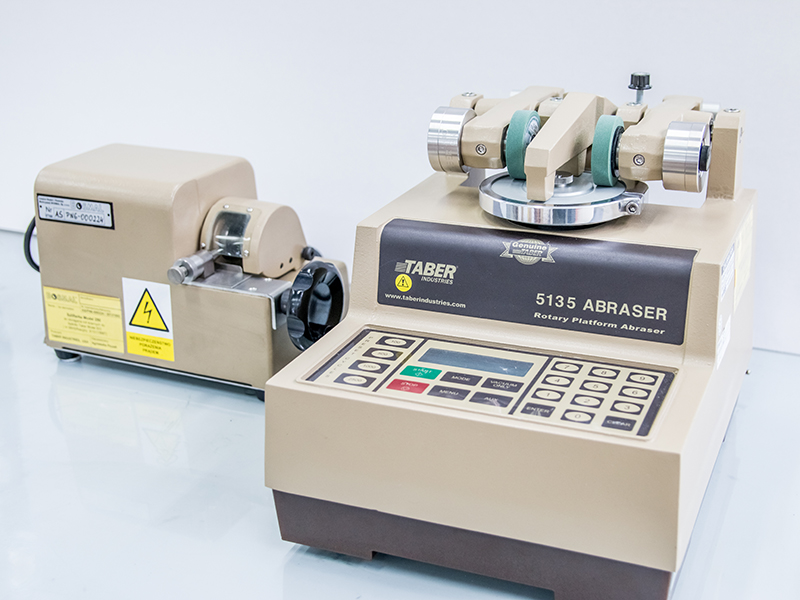

Taber Model 5135 Rotary platform abrasion tester

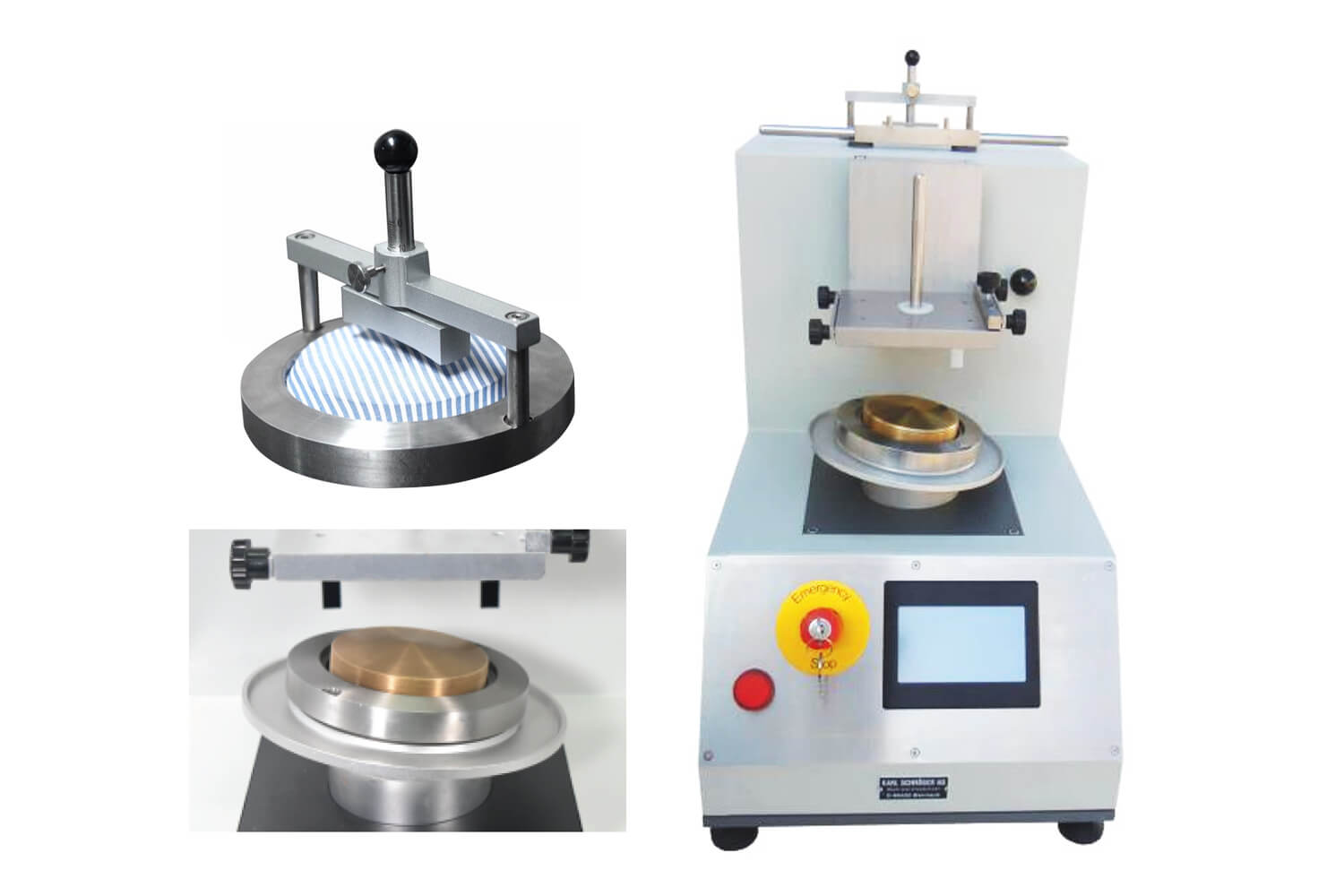

Abrasion resistance evaluation – Schopper method – Schopper abrasion tester

Schopper abrasion tester

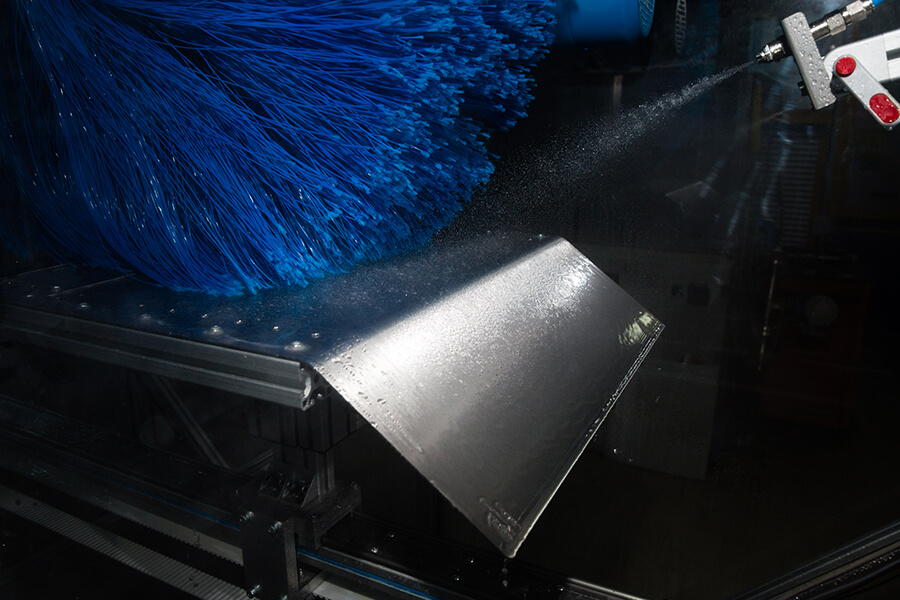

Laboratory car wash – simulation of conditions in an automatic car wash

Test methods for abrasion resistance of coatings by falling abrasive

Flammability testing equipment

UL94 Firetesting Technology flammability test chamber

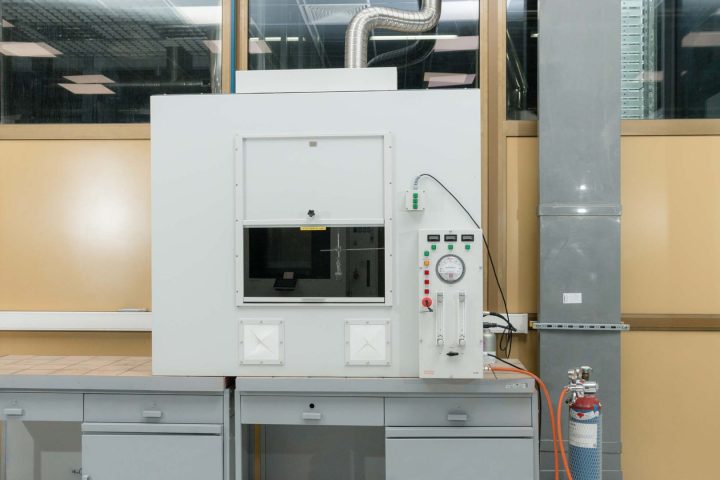

UL 94 standard flammability test chamber

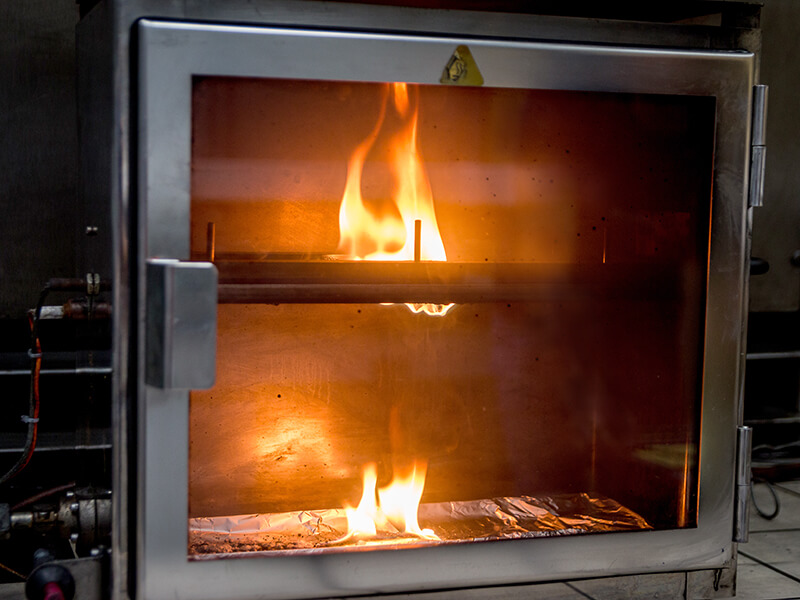

WAZAU BKF horizontal flammability test chamber

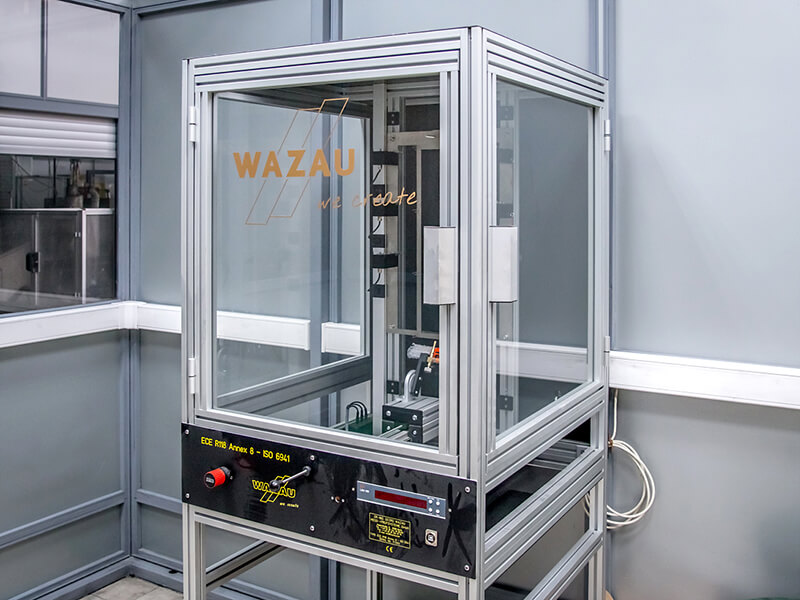

WAZAU vertical flammability test chamber

Equipment for testing mechanical properties

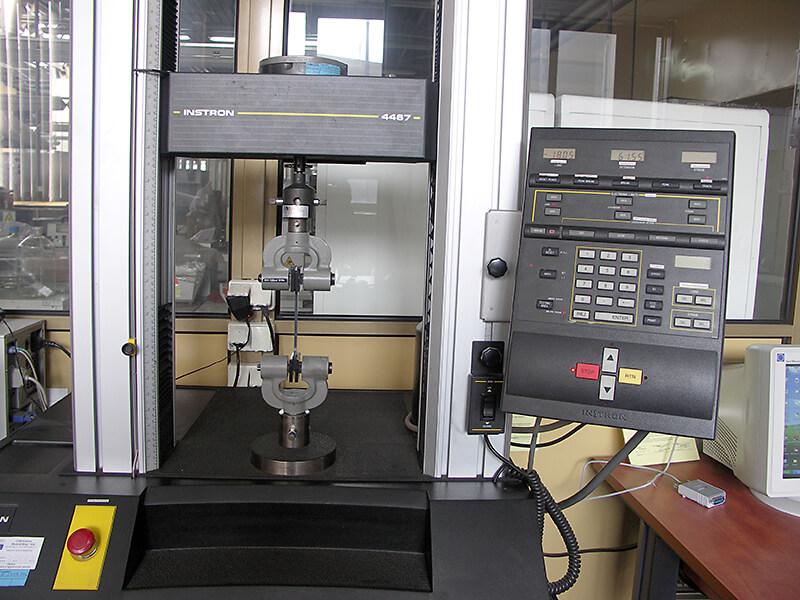

Instron 4467 tensile testing machine

  • equipped with measuring heads: up to 500 N and up to 30 kN and an extensometer
  • enables testing at temperatures from -70°C to 250°C
  • allows determination of (among other properties): tensile strength, tear strength, permanent deformation after compression, hysteresis under compressive stress, strength under static bending, modulus of elasticity under bending

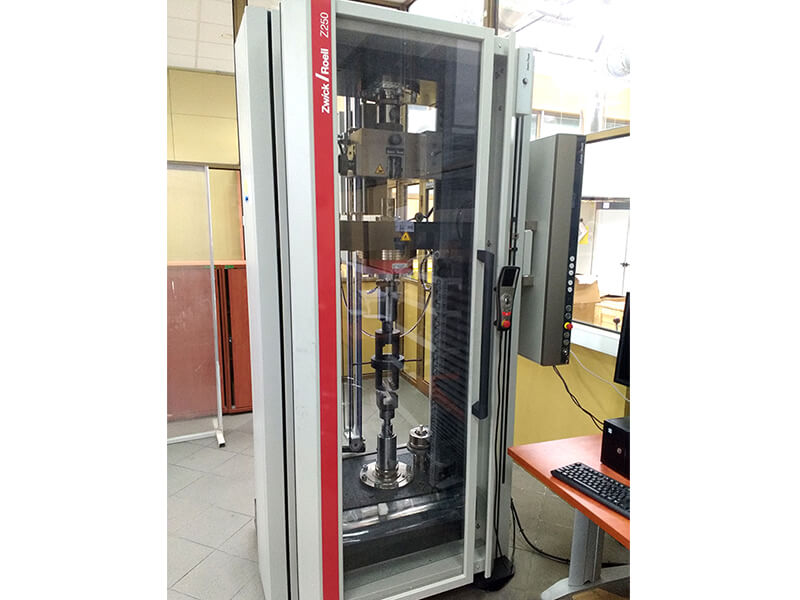

Zwick 250 kN Allround floor and testXpert II software

The device enables execution of tests such as:

Stretching tests according to PN-EN ISO 6892-1, method A and B

  • resistance, Rm
  • plasticity limit, Re
  • contractual plasticity limit, Rp
  • lengthening, A
  • necking, Z

Sintered products’ resistance to crushing using the squeezing method

  • according to PN-EN ISO 2739

Connecting element stretching tests

  • PN-EN ISO 898-1, apart from 9.13
  • PN-EN ISO 898-5, apart from 9.4
  • PN-EN 28839
  • PN-EN ISO 6157-2
  • PN-EN ISO 898-2
  • PN-EN ISO 2320

Propensity to plastic deformation

  • flattening method according to PN-EN ISO 8492
  • drift expanding method according to PN-EN ISO 8493

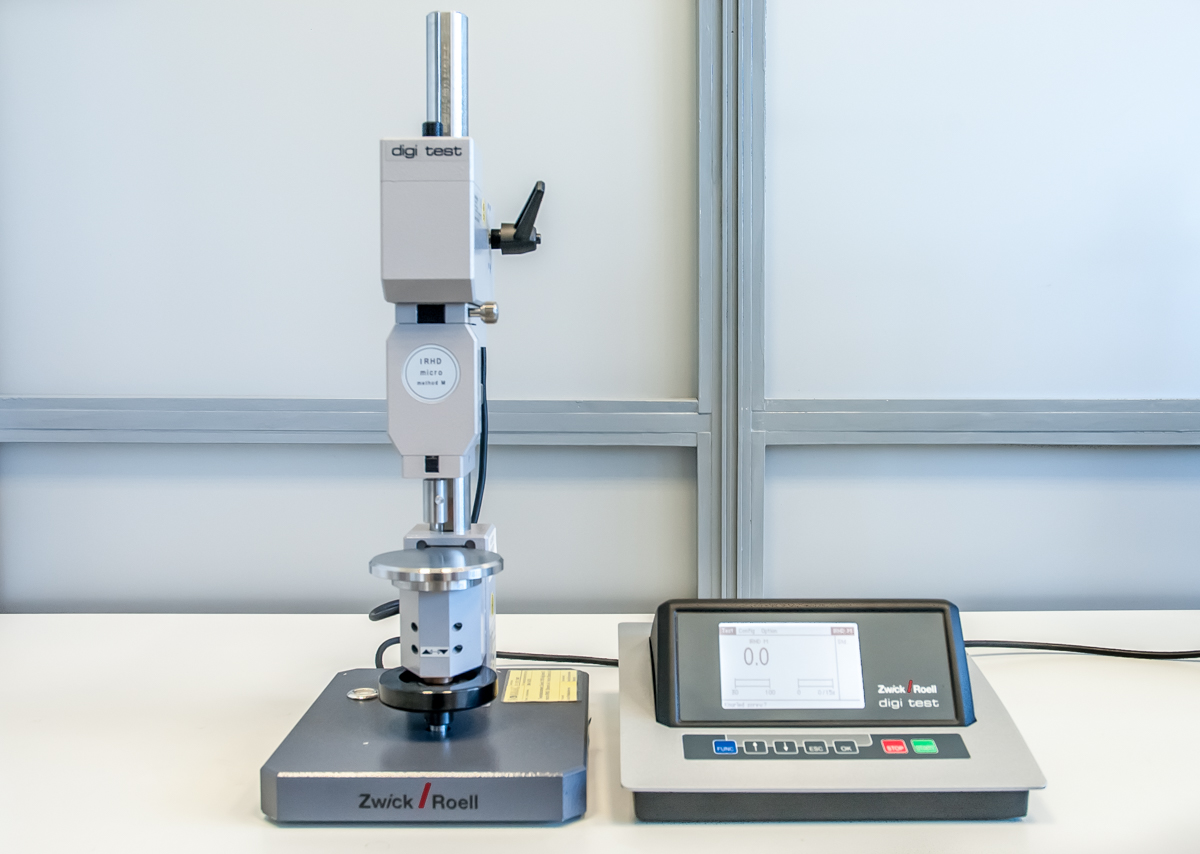

Zwick/Roell 3105 digi test hardness tester

  • hardness tester with interchangeable measuring heads in the range: Sh A, Sh AM, IRHD-M
  • determination/verification of elastomer hardness on standard samples (or products) in the delivery stage, as well as following specified ageing tests
  • Rockwell (hardness scales HRE, HRL, HRM, HRR) – measurement on 4 mm thick samples cut out from the product.

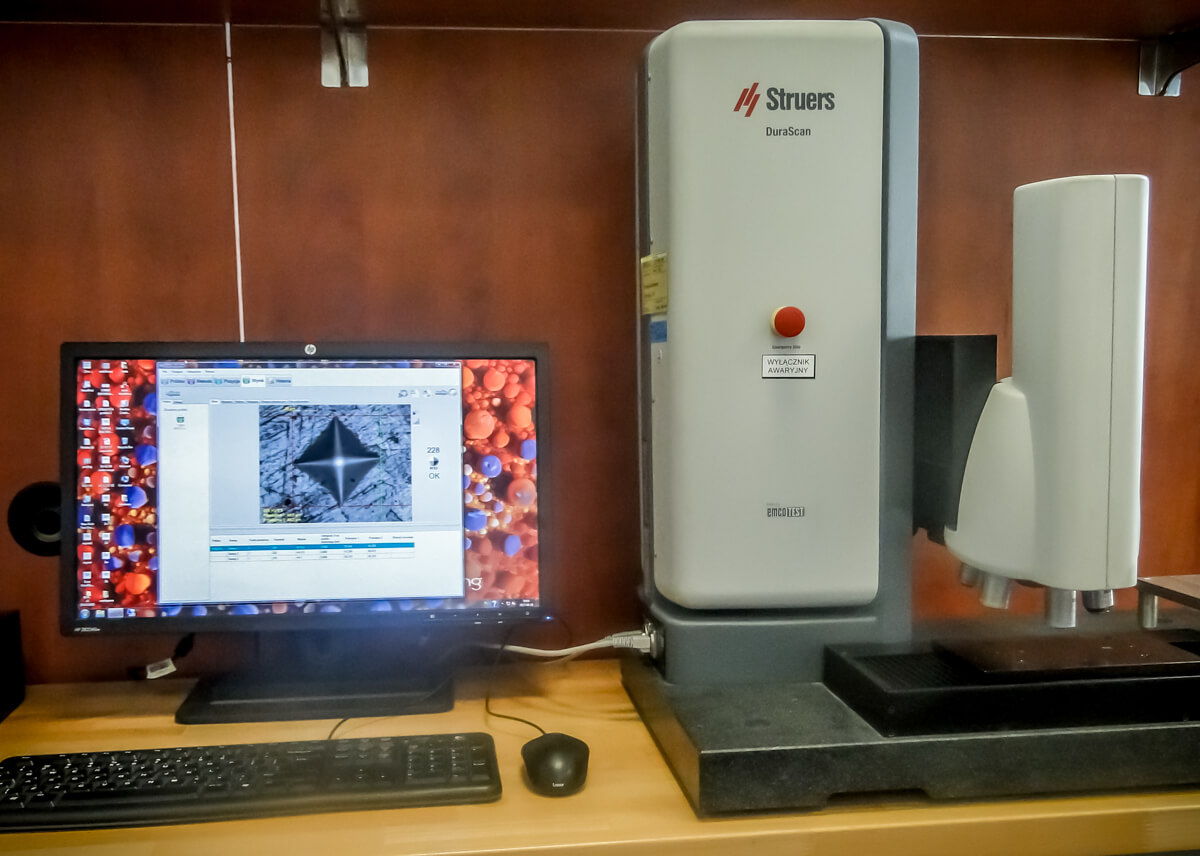

EMCO-TEST – DuraScan – 50 micro hardness meter

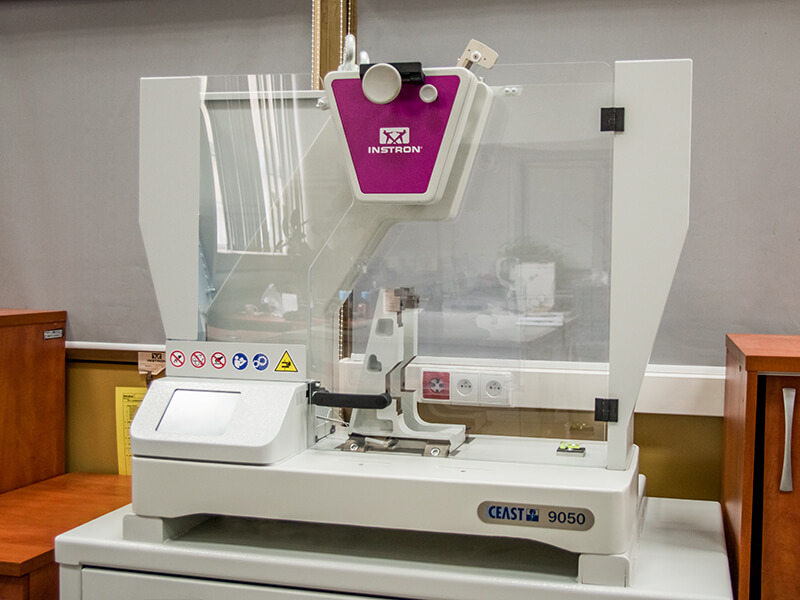

Instron Ceast 9050 pendulum hammer

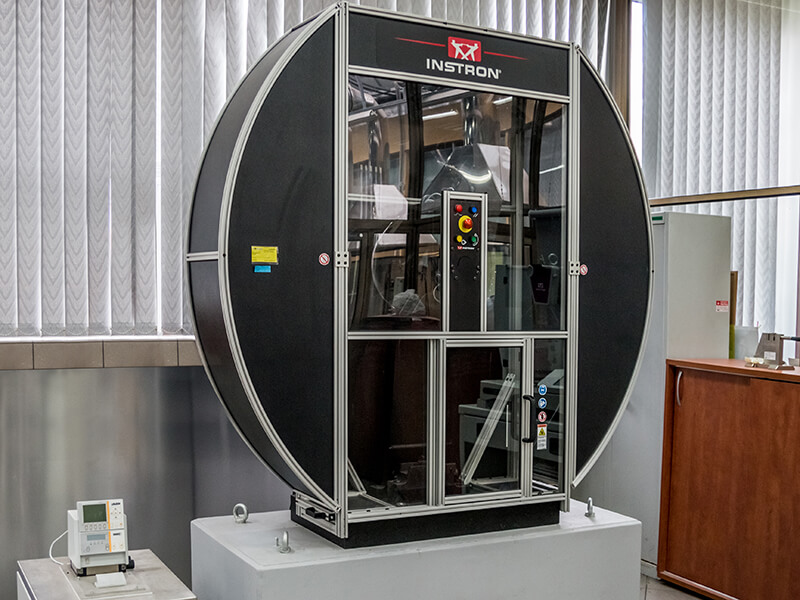

Instron 450MP pendulum hammer

Equipment for testing internal and external corrosion and erosion and the effects of corrosive gases

Corrosion test chambers (salt-humidity, salt-cyclic, Kesternich (SO2) chamber)

The laboratory has a number of corrosion chambers that meet various customers’ requirements:

  • salt fog and humidity test chambers
  • cyclic corrosion test chambers
  • Kesternich (SO2) chamber
  • internal and high flow corrosion test benches
  • noxious gas test chambers

We have chambers made by companies such as

  • Liebisch
  • ASCOTT
  • Weiss Technik
  • Heraeus
  • Vötsch
  • VLM
  • Kesternich
  • Olfasense

In addition, the laboratory is able to prepare a suitable test chamber or test stand to suit specific customer requirements.

Salt fog and humidity test chambers and cyclic corrosion test chambers

Chambers for testing the resistance of objects to external agents in artificial corrosive atmospheres (e.g. salt spray, immersion in corrosive solutions, defined climatic conditions, water condensate, etc.).

  • operating capacities: from 1 m3 to 2.5 m3
  • temperature range: from -20°C to 70°C
  • humidity range: from 20 to 98% RH and from ~95 to 100% RH
  • spray pressure: up to 3 bar
  • cyclic corrosion testing (CCT)
  • media: NSS, CASS, ASS, SWAAT, others.

Examples of evaluation methods used after testing, visual evaluation: evaluation of coating deterioration; evaluation of the degree of: blistering, rusting, cracking, peeling, chalking by the tape method, delamination and corrosion around the notch; colour change and grey scale, as well as many others.

Examples of evaluation methods used after mechanical testing (examples): notch grid test, determination of coating resistance to stone impact, multi-impact test, pistol test, determination of coating hardness by pencil method, and many evaluation methods.

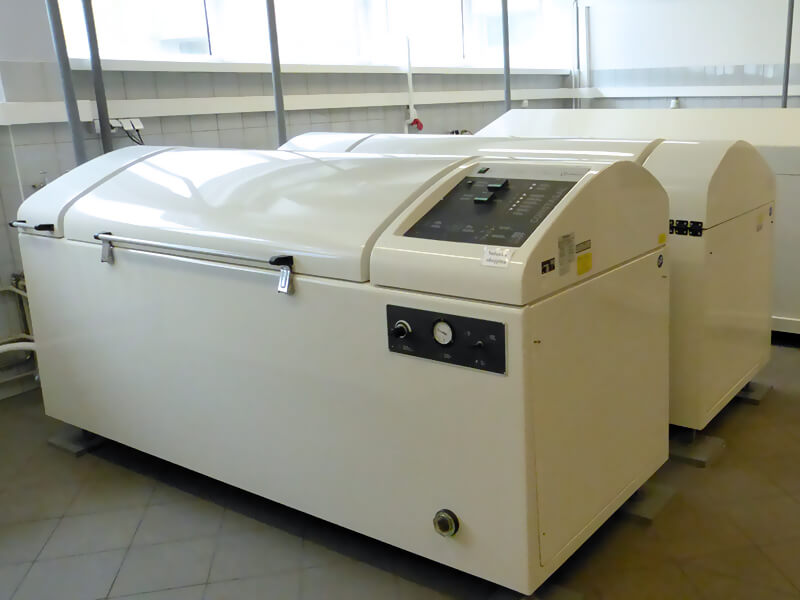

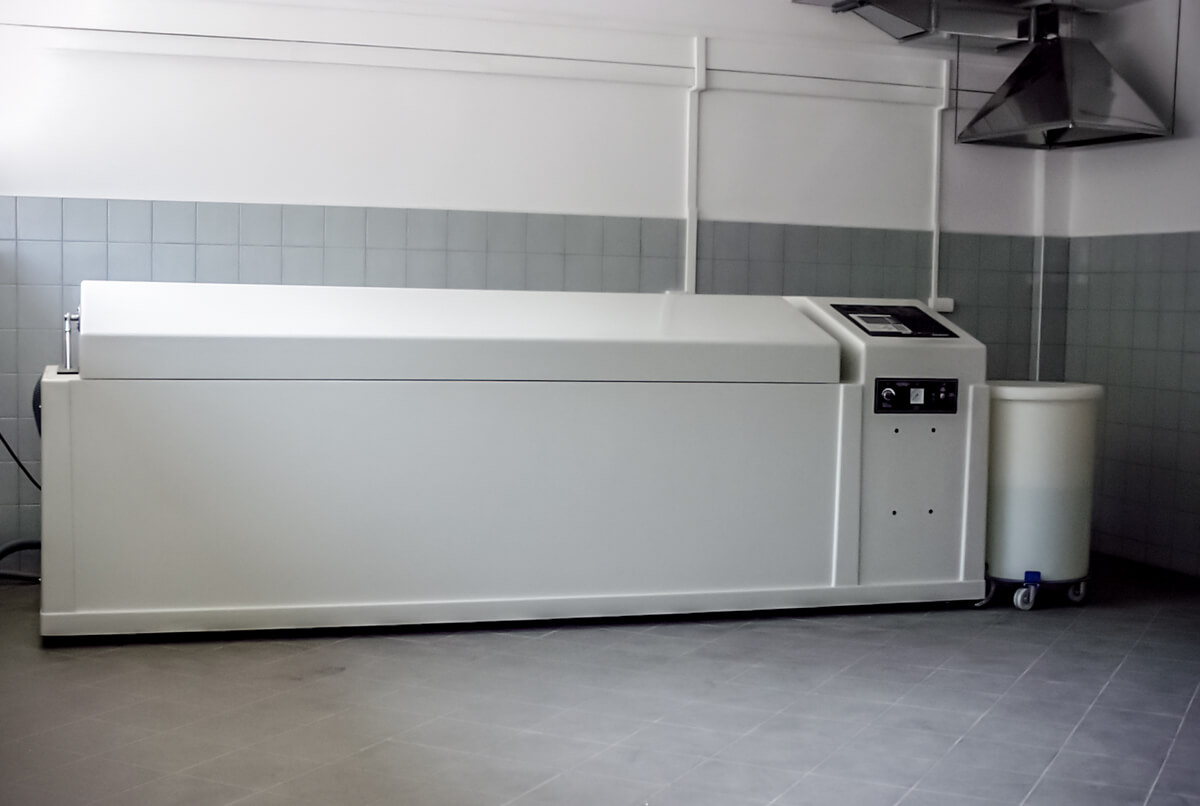

In the photo: Liebisch salt fog and humidity test chamber; 2500 l; working space (58×270×101) cm

  • Liebisch cyclic corrosion test chambers and salt fog and humidity test chambers; approx. 1000 l box; working space 40×140×65 cm
  • Ascott cyclic corrosion test chamber; 1000 l; working space 47×116×60 cm
  • Liebisch salt fog and humidity test chamber; 2500 l; working space 58x270x101 cm
  • Liebisch salt fog and humidity test chamber; 1000 l; working space 61×147×79 cm

Kesternich (SO2) chamber

It allows testing the resistance of objects in sulphur dioxide, water condensate, or salt spray environments, among others.

  • working volume: from 0.4 m3 (400 L) to 1.0 m3 (1000 L)
  • temperature range: from RT to 50°C
  • humidity range: from ~95 to 100% RH
  • spray pressure: up to 3 bar
  • media: NSS, CASS, ASS, SO2, others

Examples of evaluation methods used after testing, visual evaluation: evaluation of coating deterioration; evaluation of the degree of: blistering, rusting, cracking, flaking, chalking by tape method, delamination and corrosion around the notch; colour change, grey scale, as well as many others.

Examples of evaluation methods used after testing, mechanical testing (examples): notch grid test, determination of coating resistance to stone impact, multi-impact test, pistol test, determination of coating hardness by the pencil method, as well as many others.

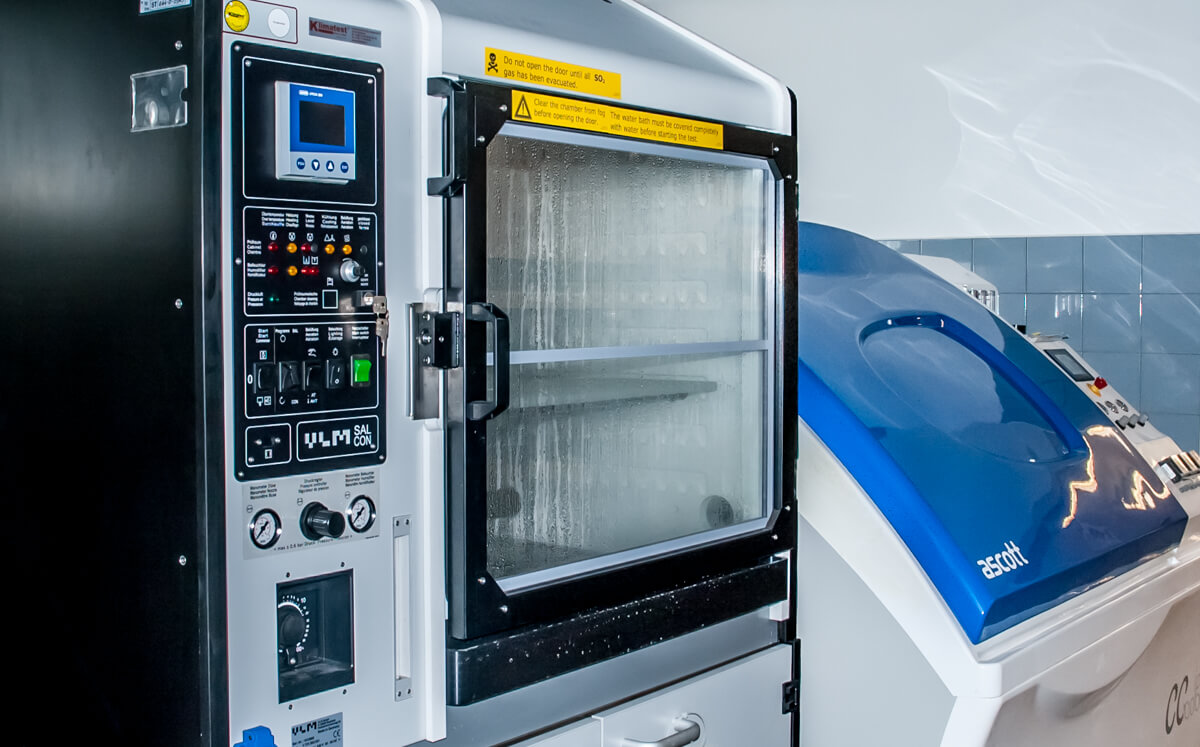

In the photo: Kesternich chamber; 400 l; working space (68×80×58) cm

Test benches for ageing and corrosion / internal erosion (internal and high flow corrosion)

These test stands and/or chambers are often built for a requested test.

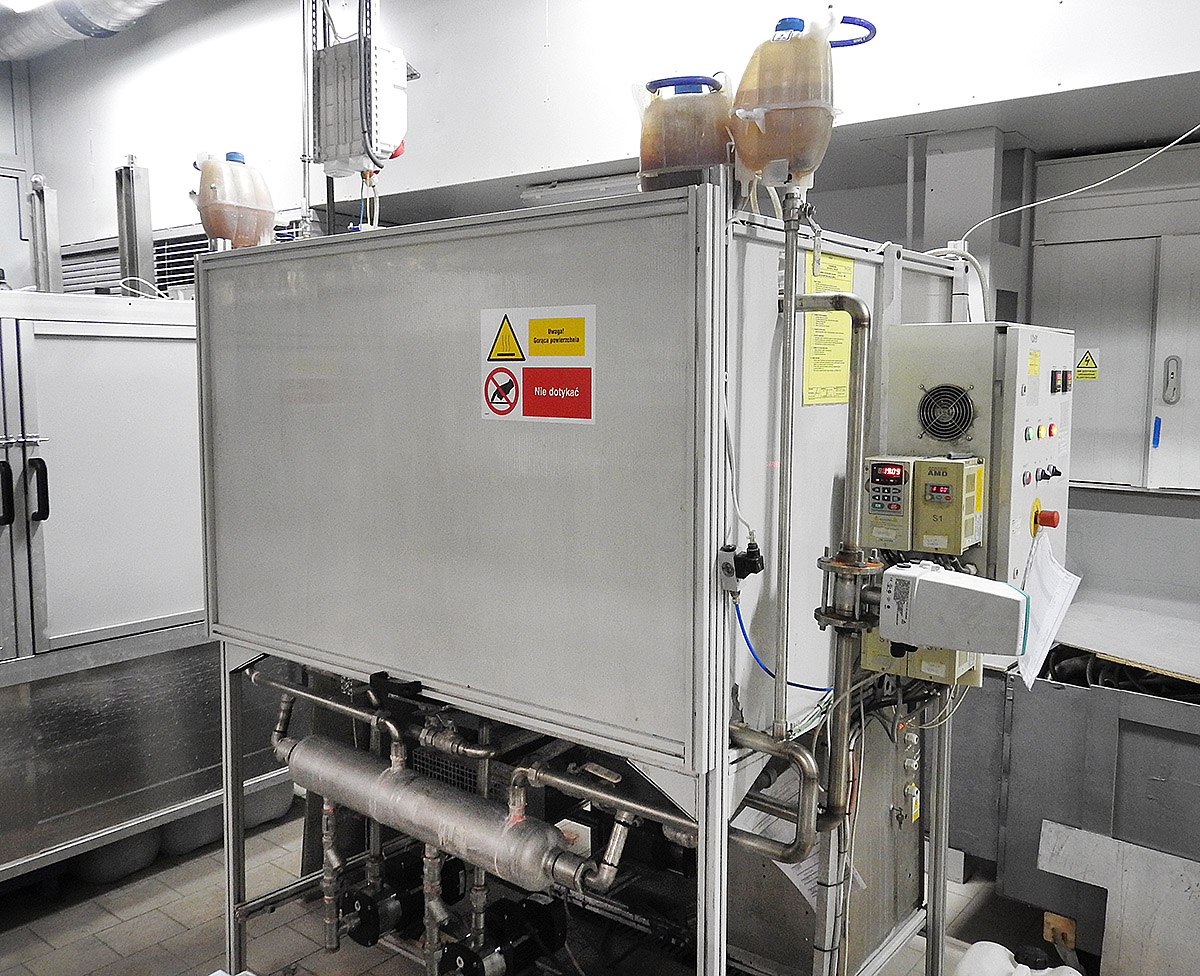

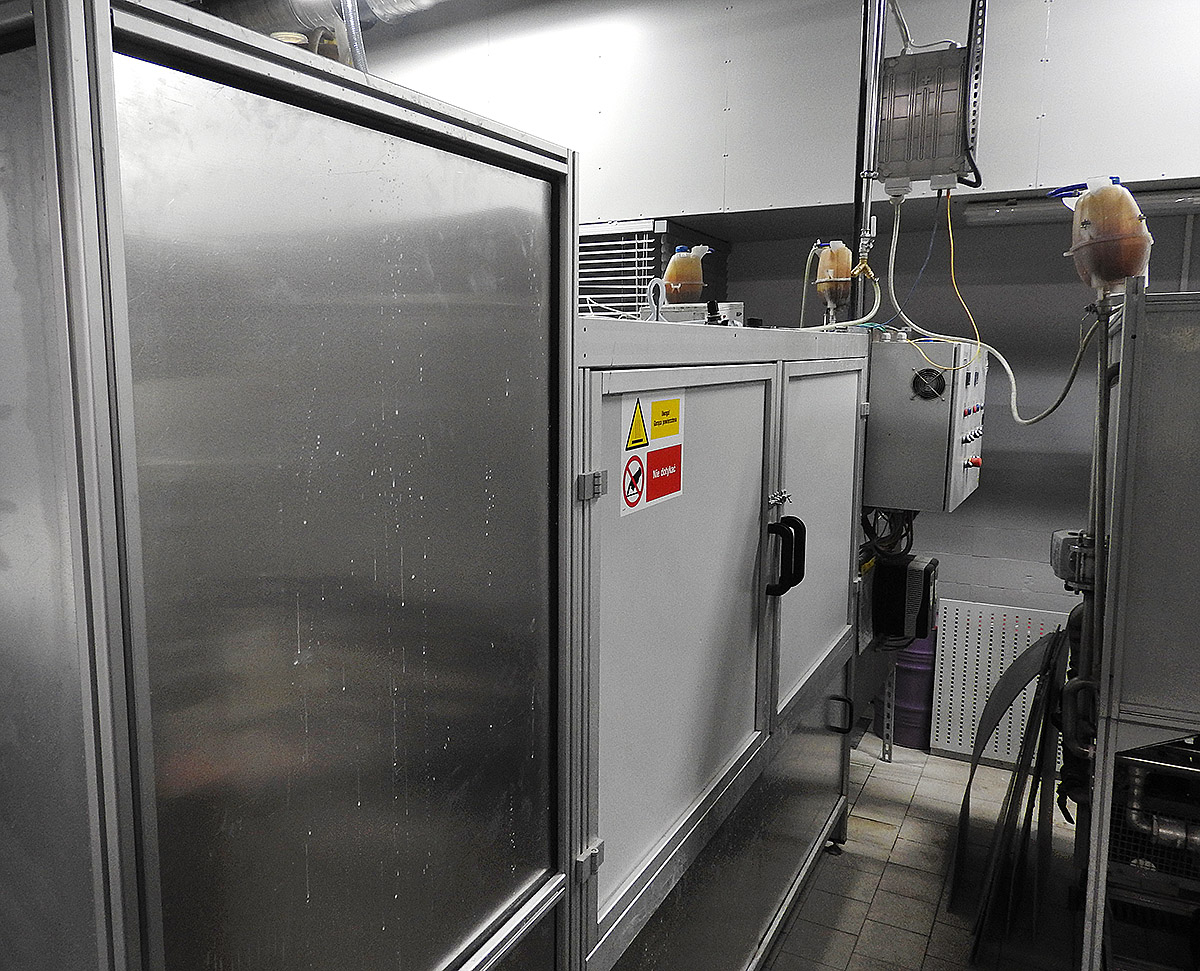

  • Test benches for ageing

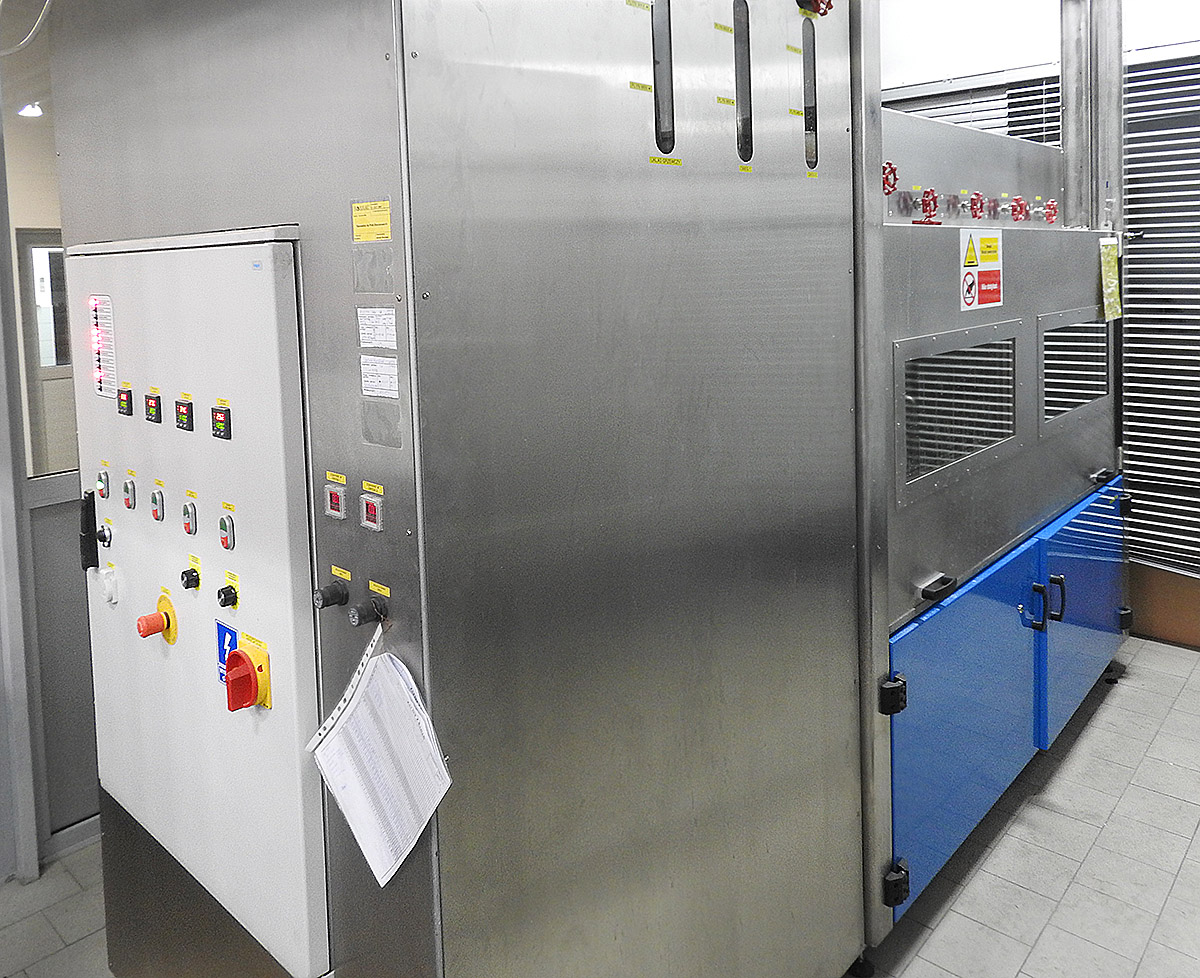

  • Test benches for ageing
  • Test benches for ageing

Noxious gas test chambers

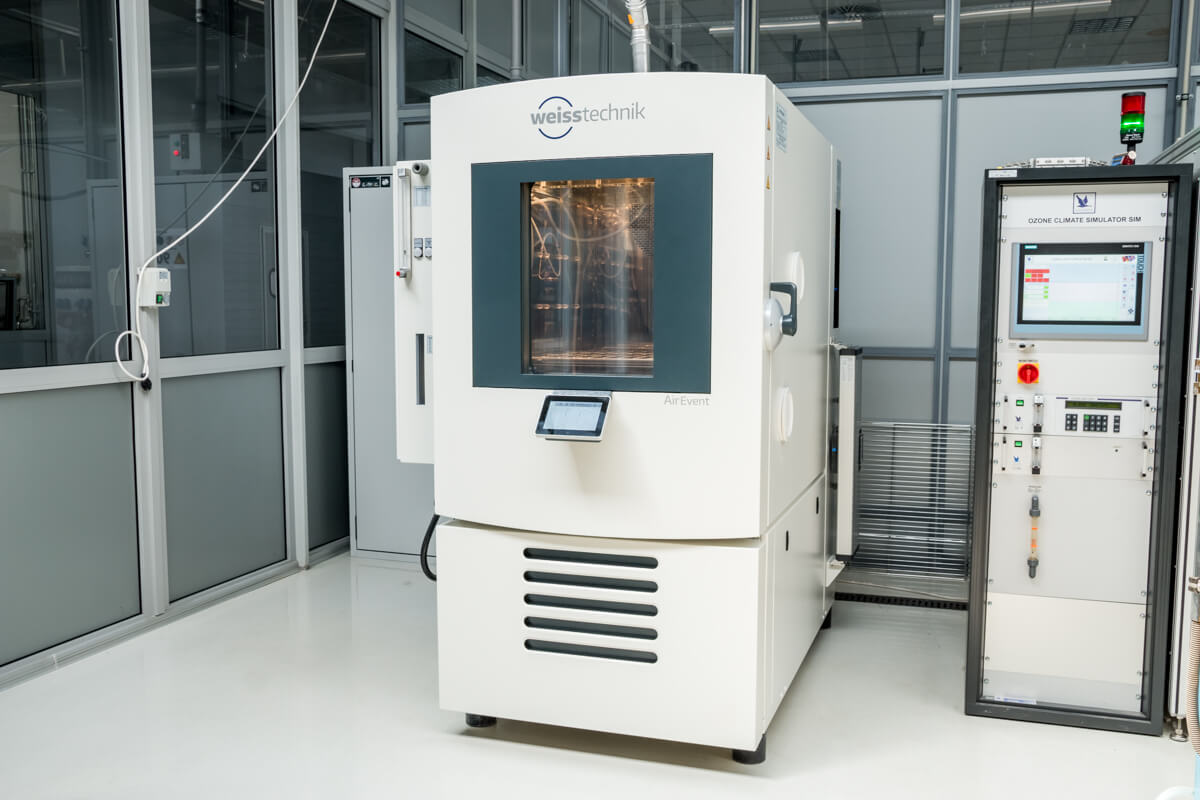

Weiss AirEvent Gas/600/0 corrosion gas chamber

Parameters and equipment

  • internal dimensions: 630×630×670 mm (W×D×H)
  • working volume: approx. 270 L
  • working temperature: from 10 to 90ºC
  • humidity: 10 – 98% RH
  • air exchange rate control by flow sensor: 3-4 times an hour
  • ventilated cabinet with extraction and gas dosing system
  • dosing of up to four noxious gases with 4 dosing lines, 1-100 ml/min
  • internal chamber for corrosion tests
  • SPM Flex gas concentration analyser for monitoring the current concentration of corrosive gases in the chamber
  • Honeywell SPM Flex gas concentration detector with chemcassettes

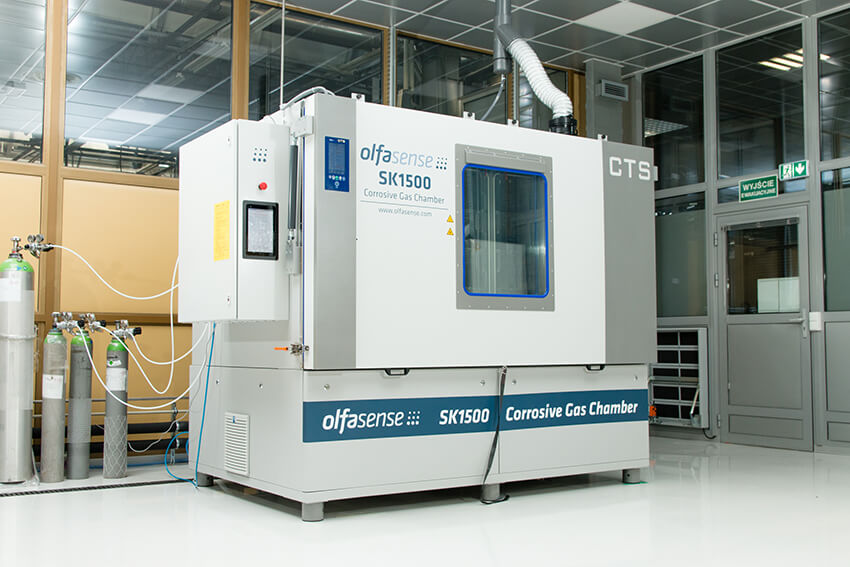

Olfasense SK1500 corrosion gas chamber

Parameters and equipment

  • internal dimensions: 1850×900×900 mm (W×D×H)
  • total volume: approx. 2800 L
  • working volume: approx. 1500 L
  • load capacity (bottom of test chamber): max. 75 kg/m2
  • load capacity (shelves in the test chamber): max. 20 kg/m2
  • working temperature: 10 – 60ºC
  • humidity: 10 – 80% RH
  • air exchange rate control by flow sensor: 3-5 times an hour
  • dosing of up to four noxious gases with 4 dosing lines, of 1-100 ml/min
  • up to four corrosive gases can be tested simultaneously in the atmosphere

Apparatus for testing resistance to environmental conditions – temperature, humidity and light, as well as ageing in an atmosphere with ozone

Temperature chambers and ovens

The institute has a number of temperature chambers of various temperature ranges and sizes. They allow testing or conditioning of objects at elevated or negative temperatures, ranging from -40°C to 300°C.

Dimensions (depending on the chamber) height×width×depth: from 700×650×604 to 1000×900×1600.

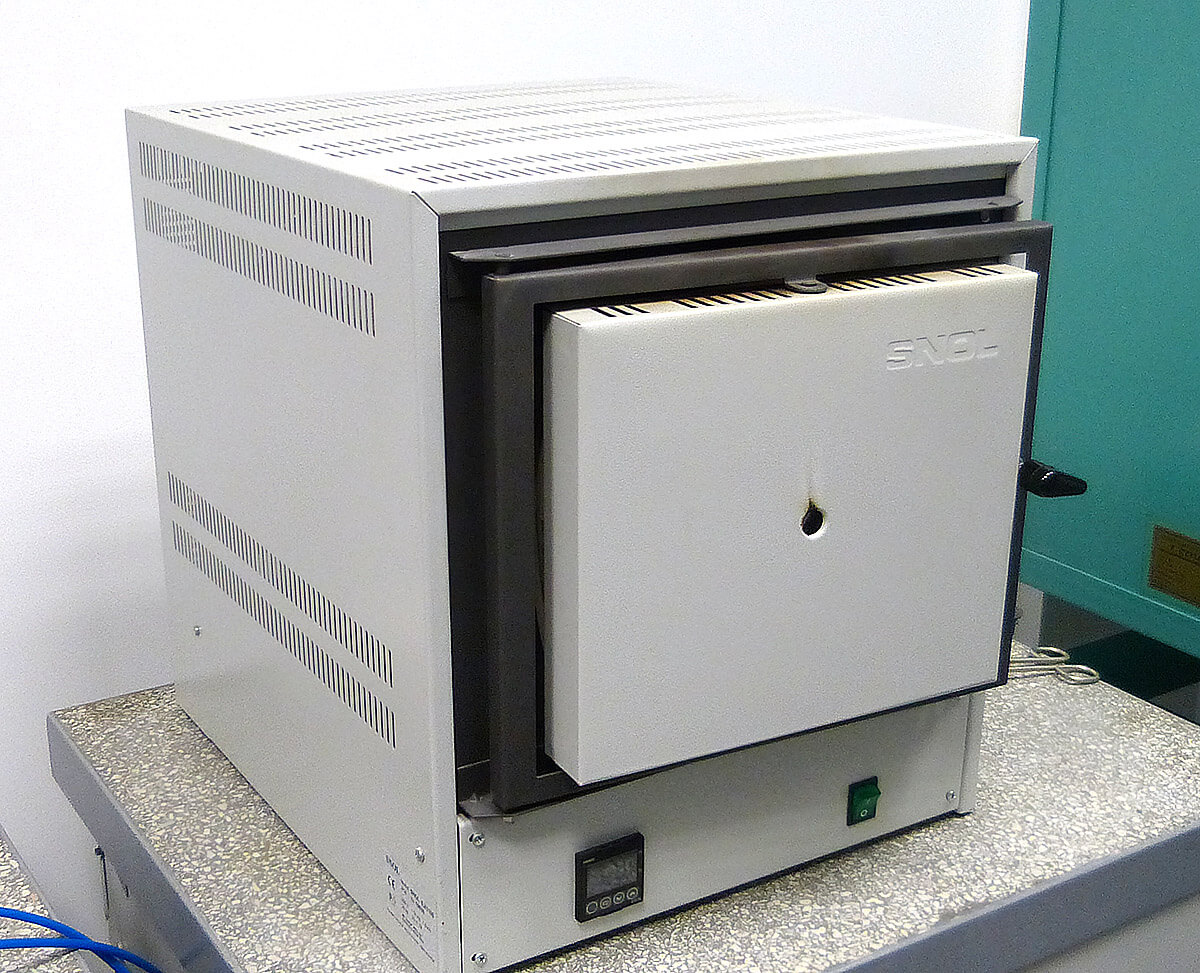

  • SNOL oven

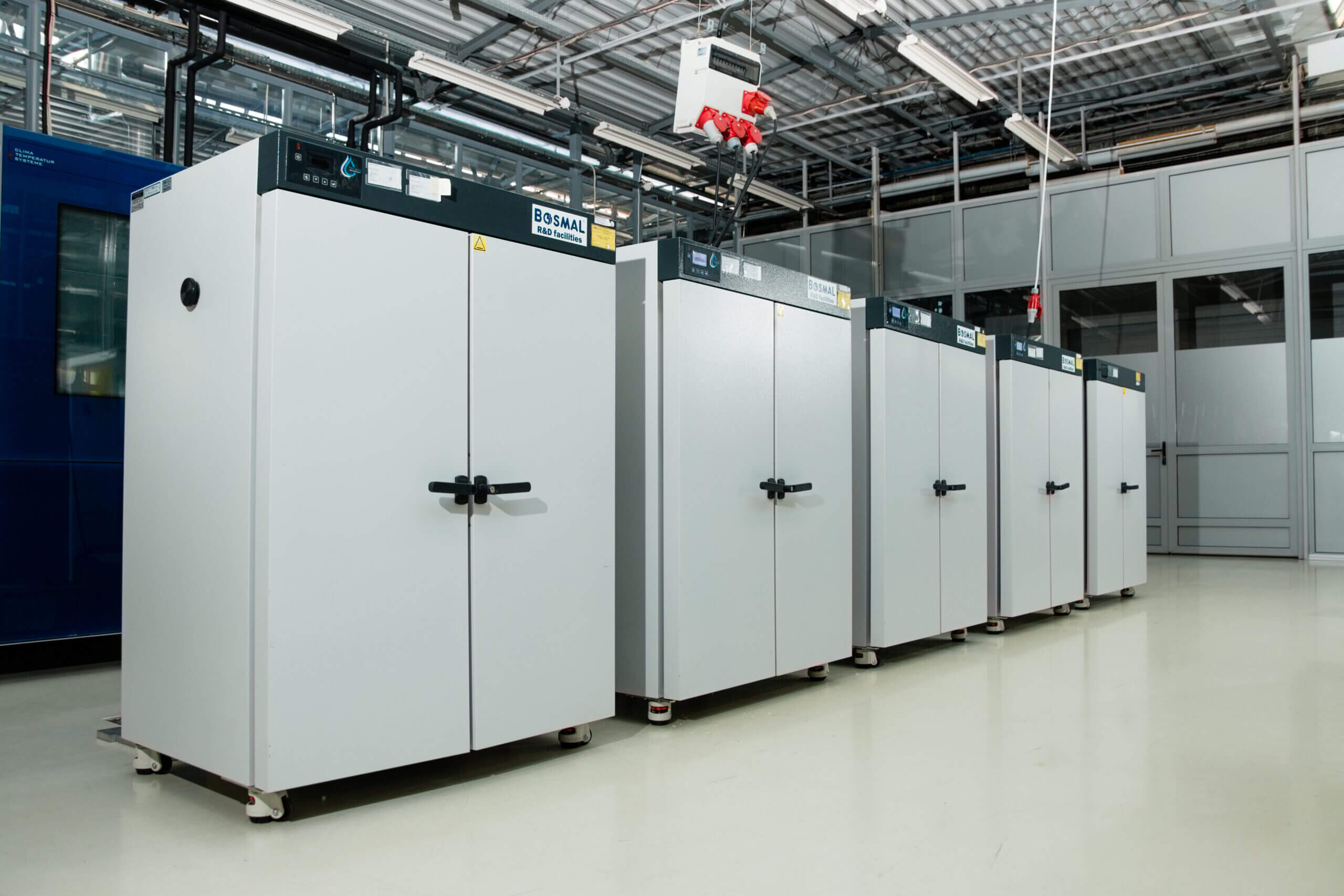

  • Temperature chambers made by POL-EKO

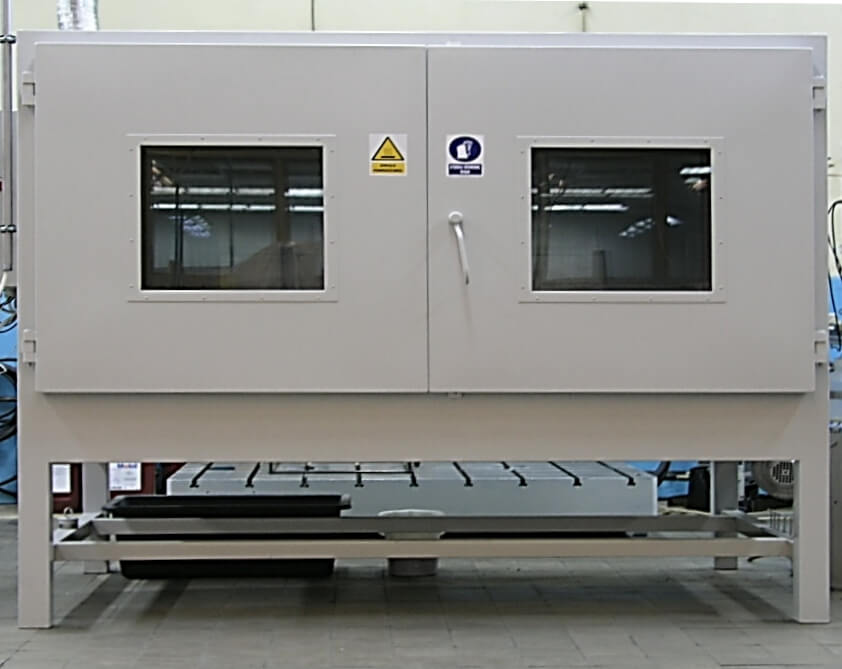

  • • Czarysz temperature chamber with pressure testing capabilities; allows testing at temperatures from ambient up to 275°C

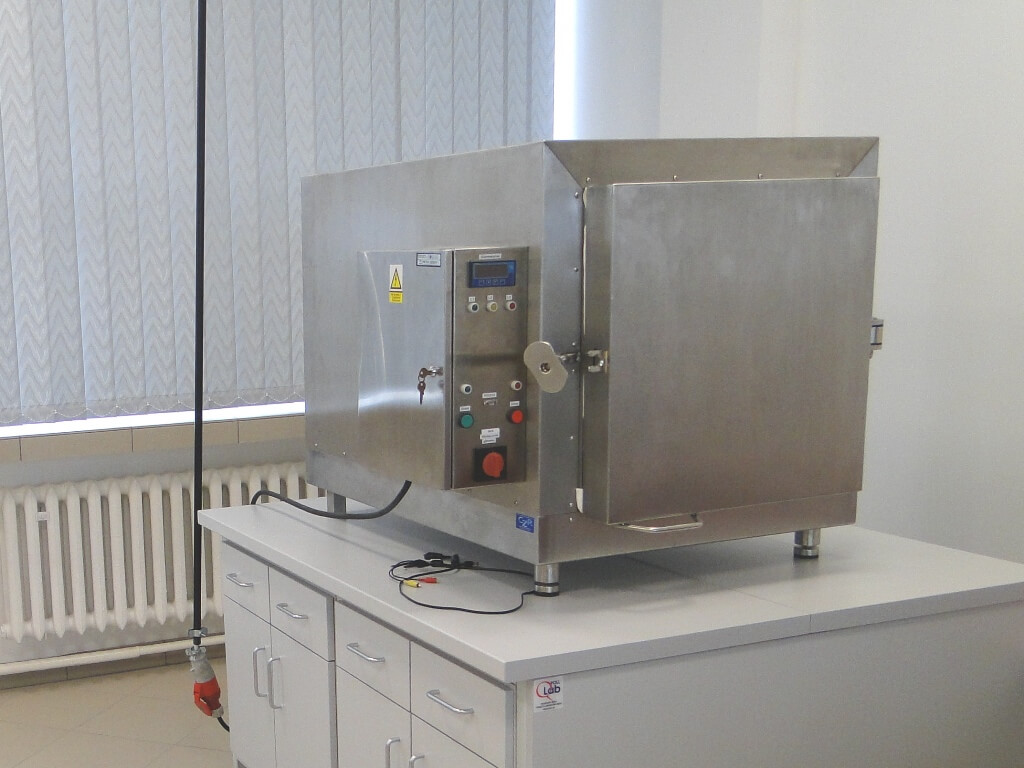

  • Mini SHED temperature chamber used for leak testing of automotive air conditioning systems – freon emission tests. Internal dimensions: 600×600×1000 mm

Climate chambers (including walk-in, low-temperature, high-temperature, object conditioning, large-size chambers)

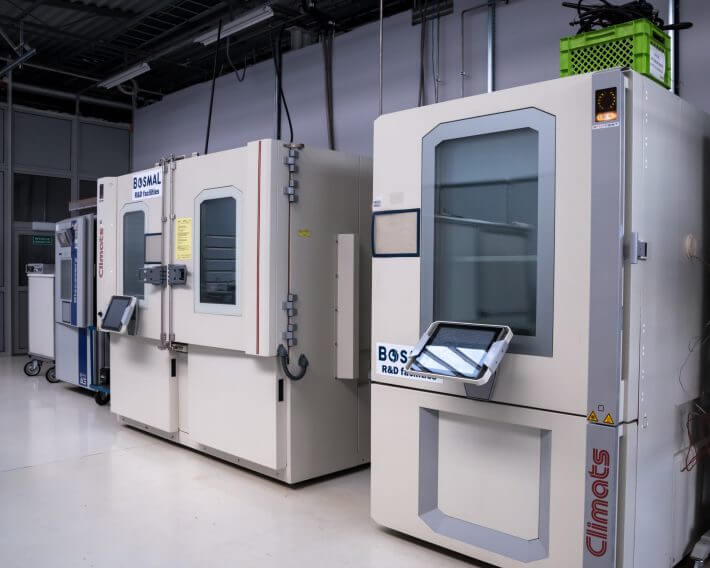

BOSMAL has a number of climatic chambers with different temperature ranges and sizes. They allow objects to be tested or conditioned under different climatic conditions:

  • temperature: from -70°C to 210°C
  • humidity: from 10 to 98% RH

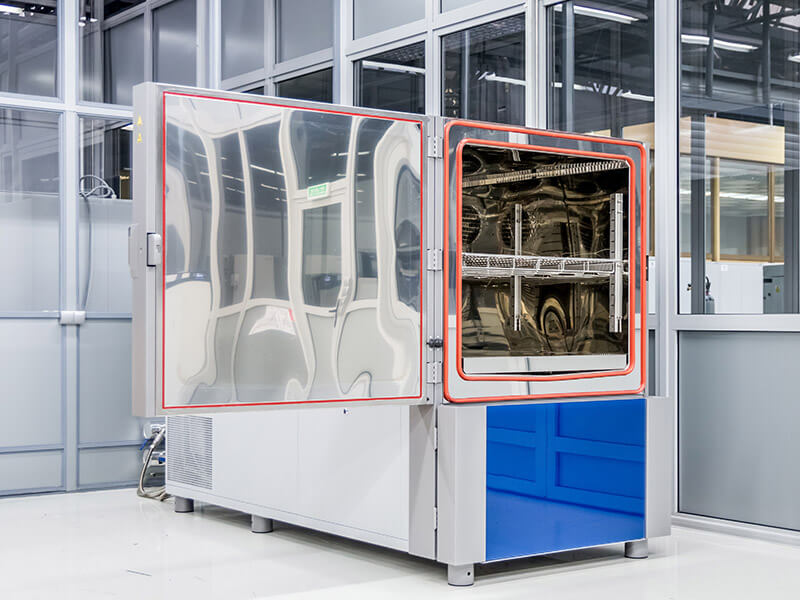

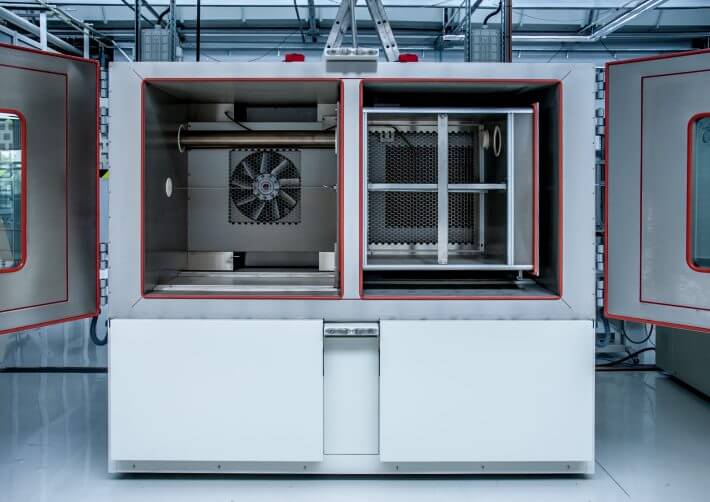

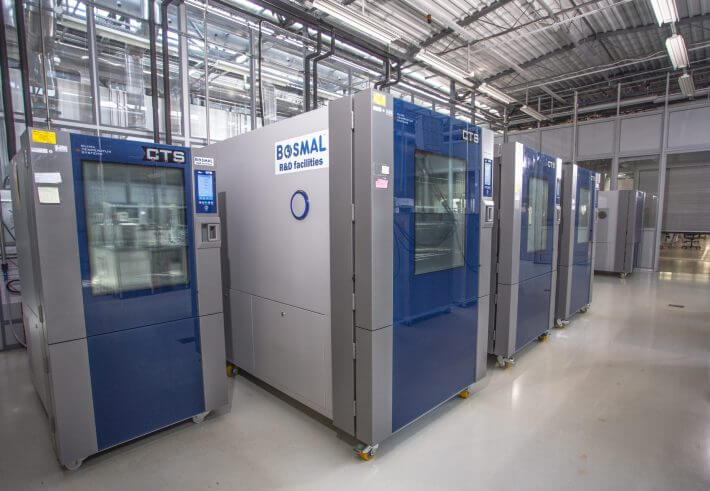

  • CTS climatic chamber

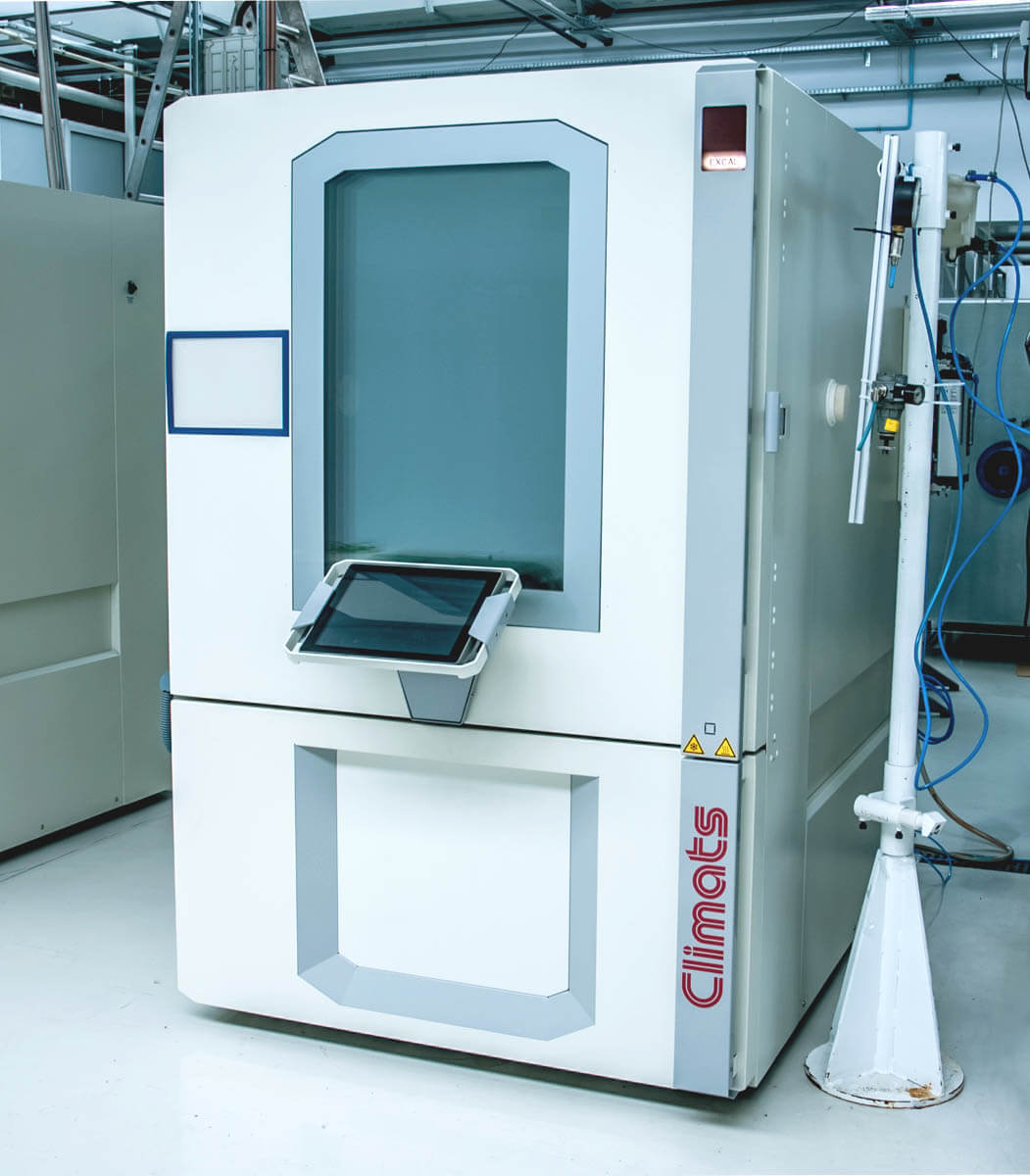

  • Climats climatic chamber

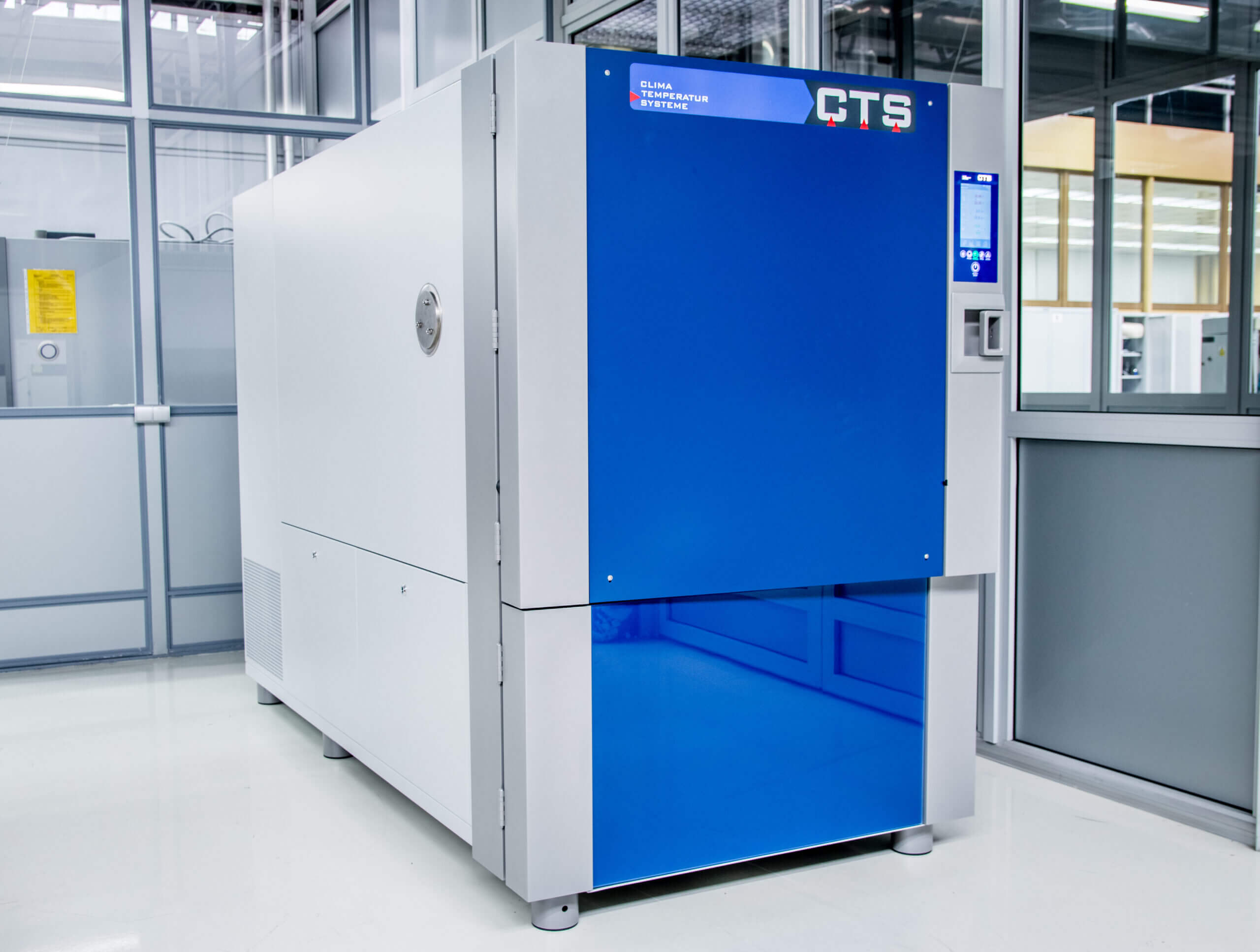

  • CTS climatic chamber
  • CTS climatic chamber

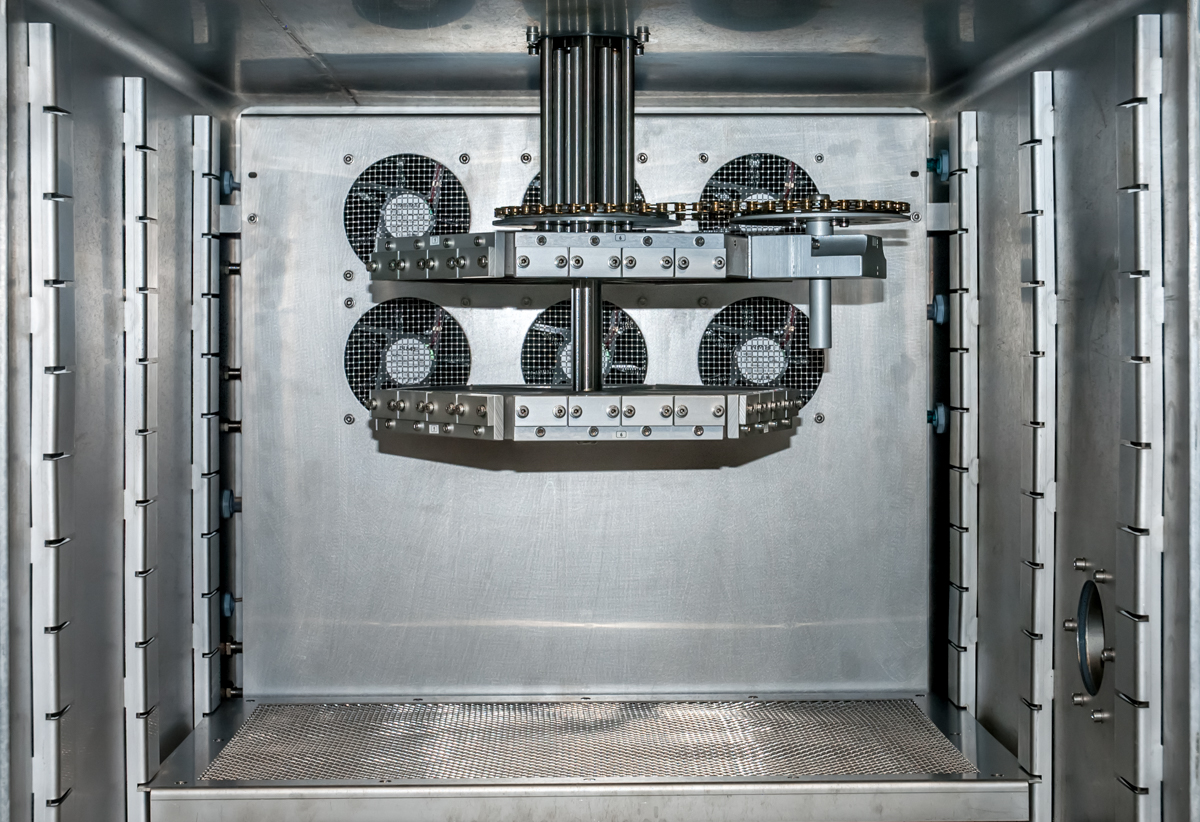

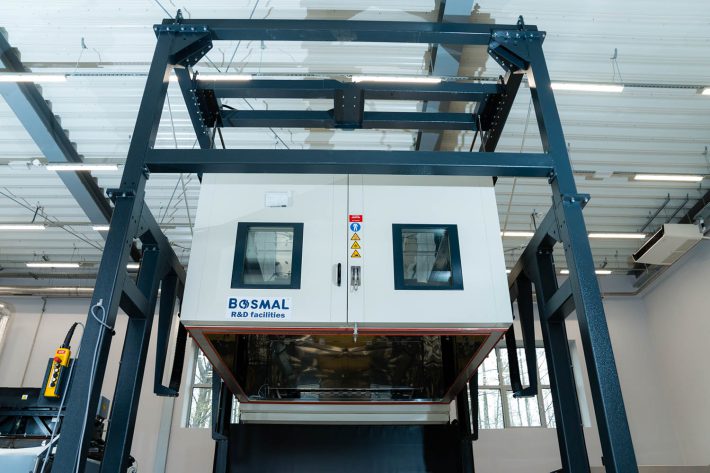

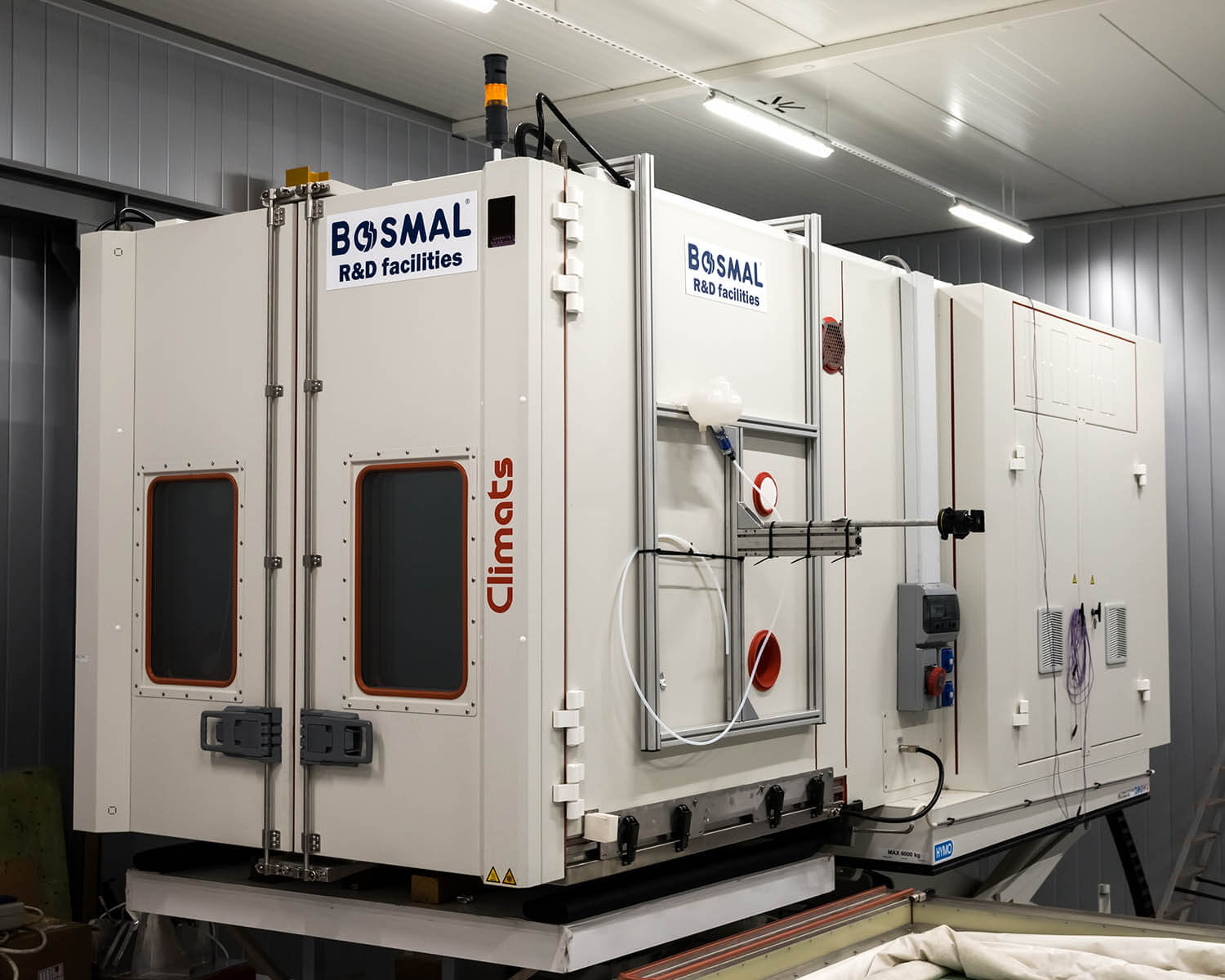

  • One of Climats climatic chambers adapted for vibration testing
  • One of Weiss Technik climatic chambers adapted for vibration testing

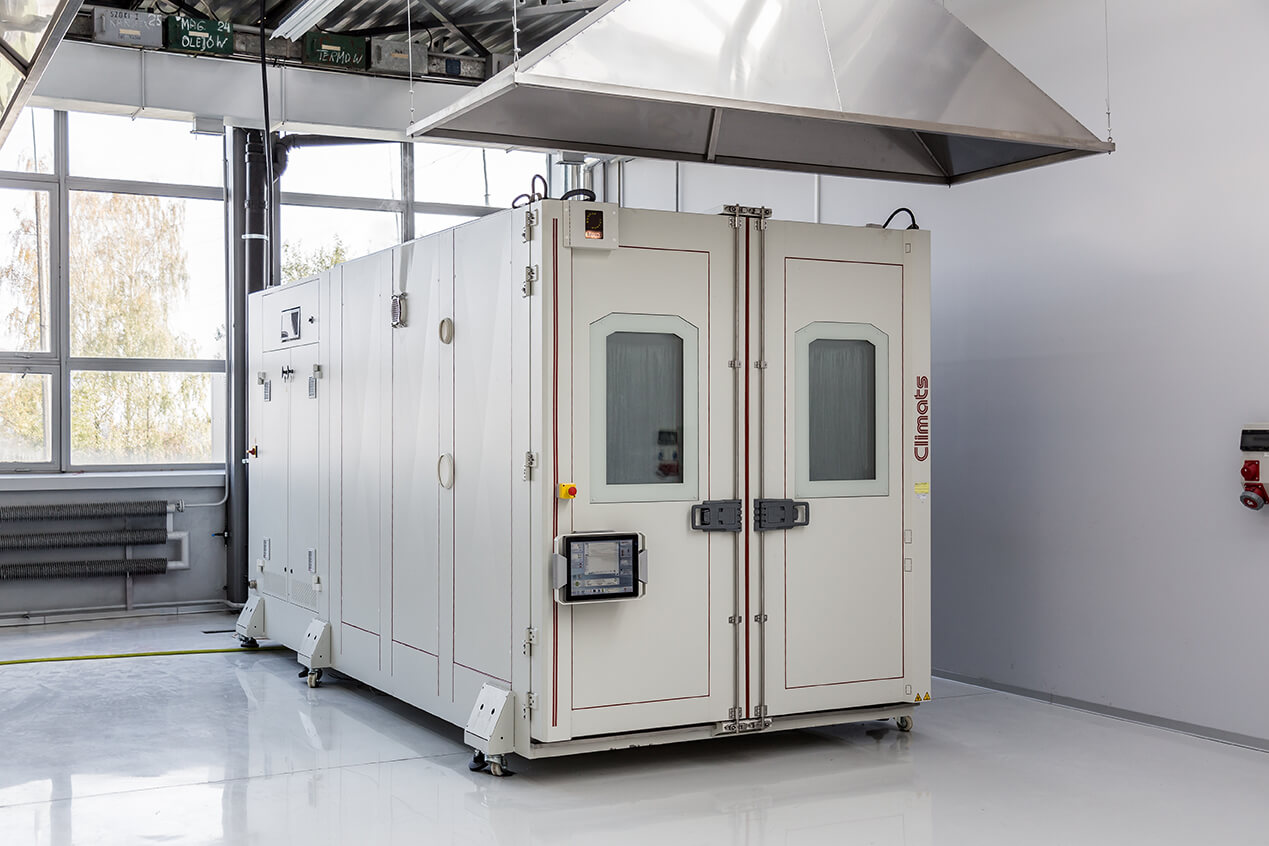

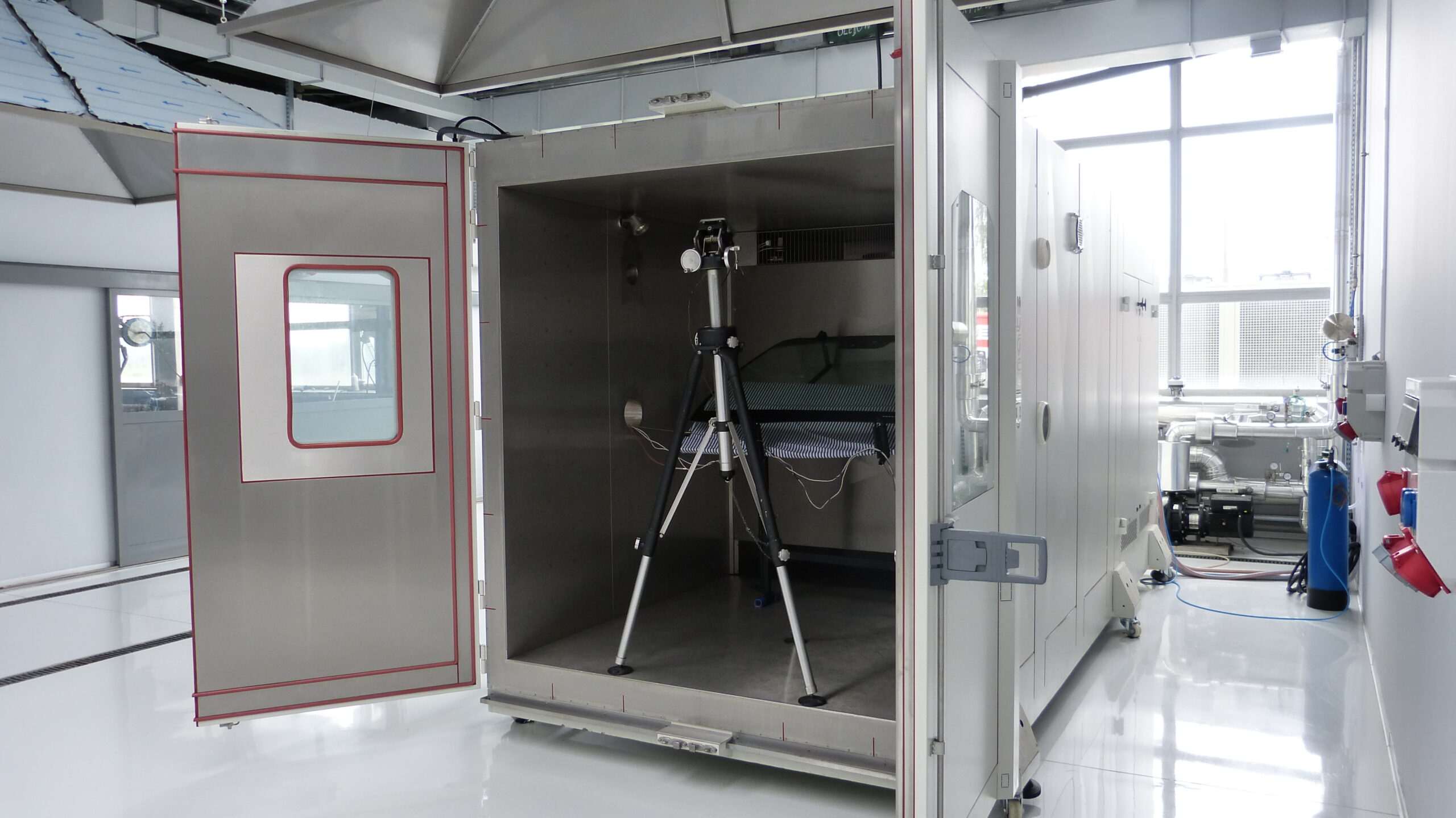

Climats walk-in chamber

  • Walk-in climate chamber
  • Interior of the walk-in climate chamber

Large-scale low-temperature, high-temperature and object conditioning chambers

Climate free-standing chamber

Parameters:

  • temp.: from -40°C to 75°C

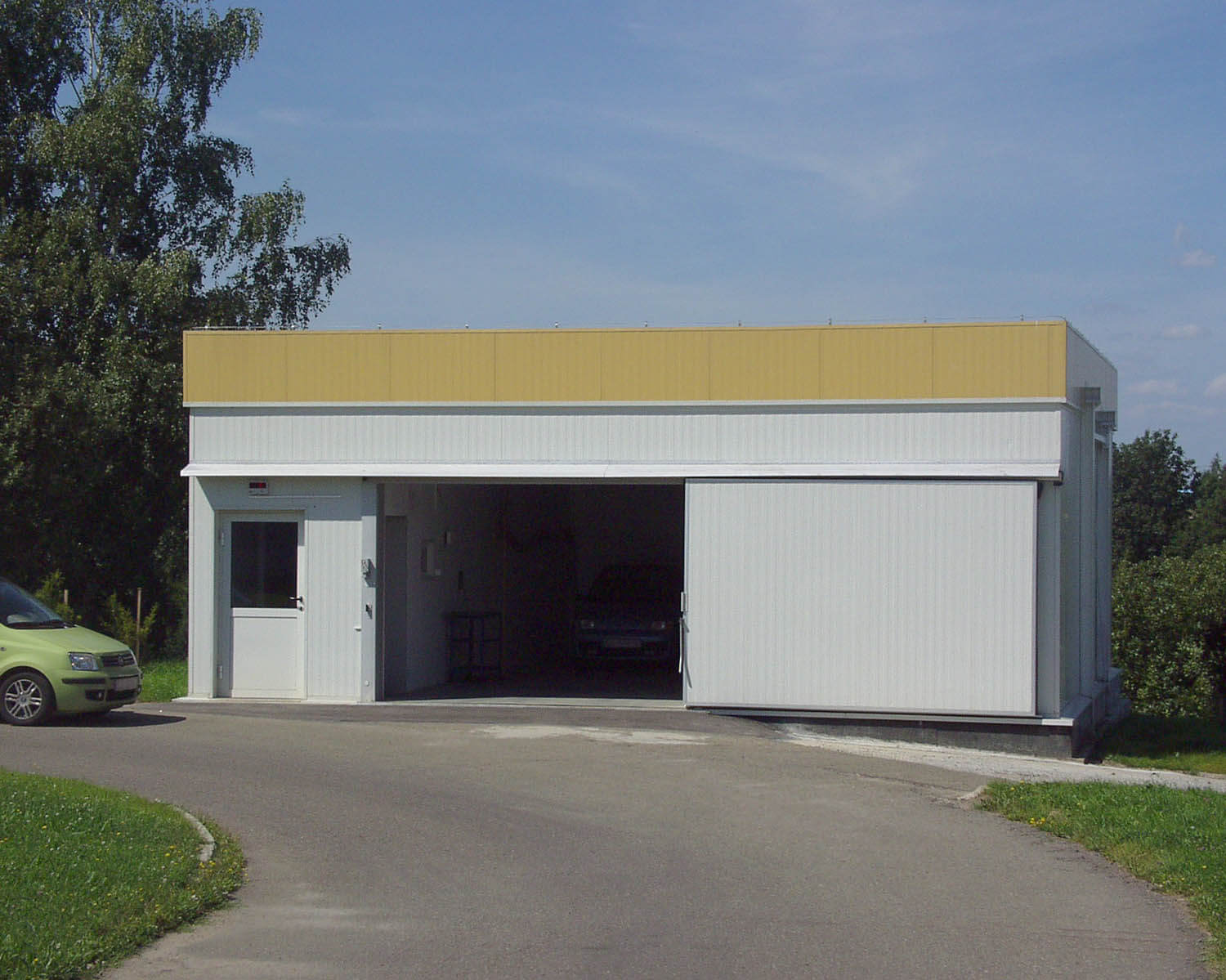

  • chamber dimensions (L×W×H): 8700×7100×3150 mm
  • door dimensions (W×H): 3600×2780 mm

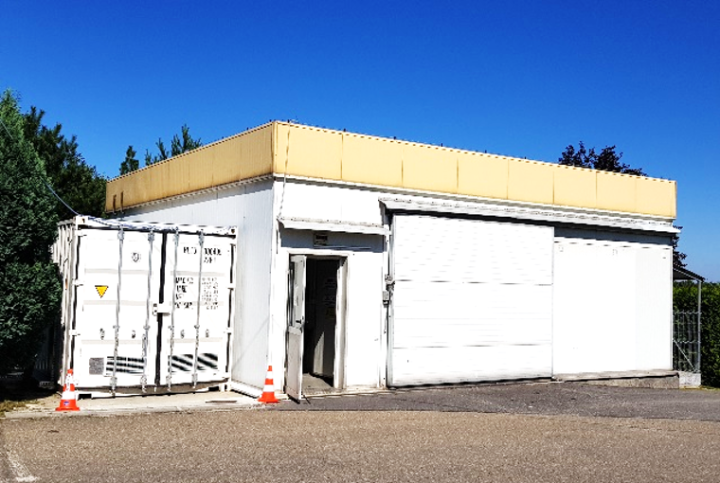

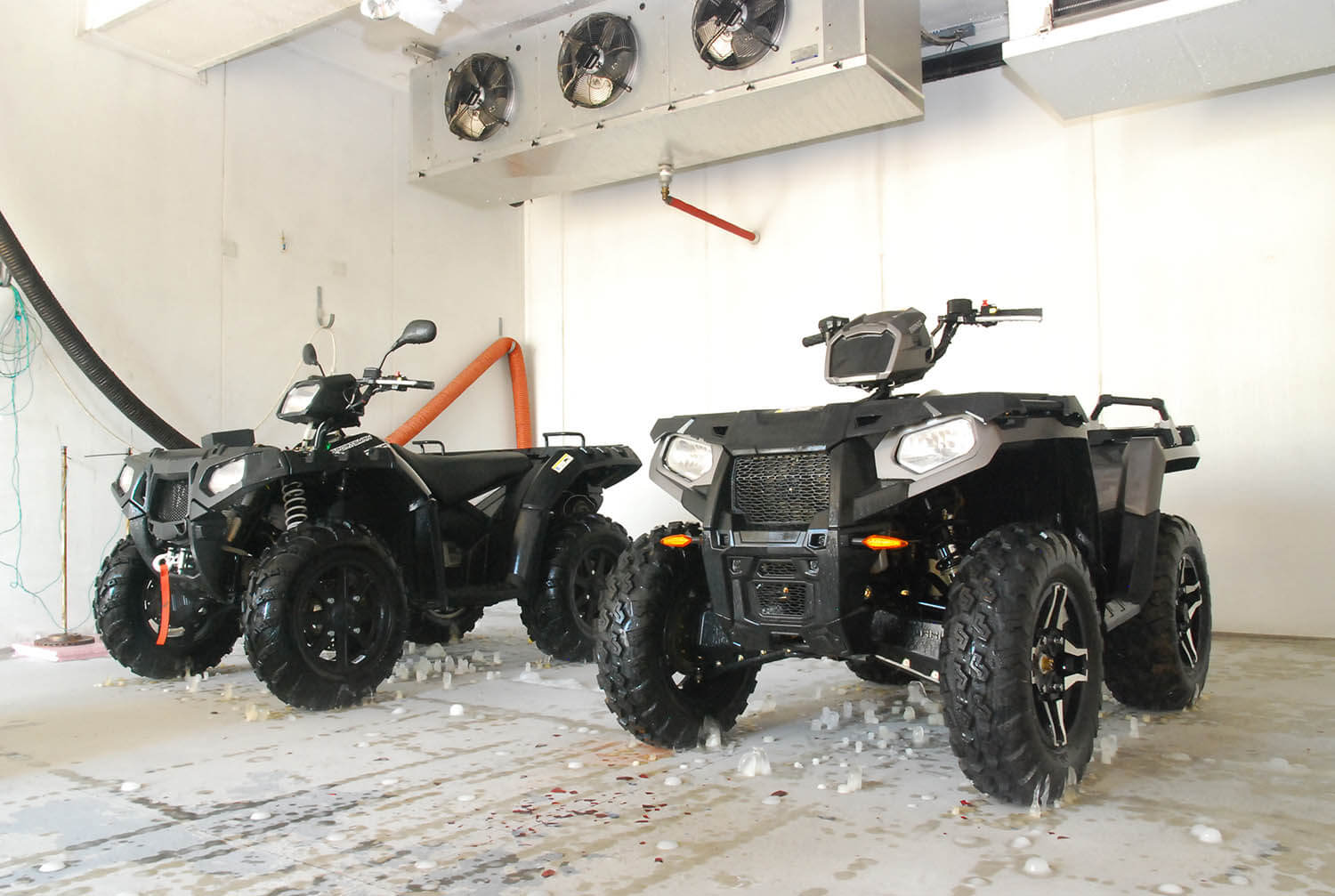

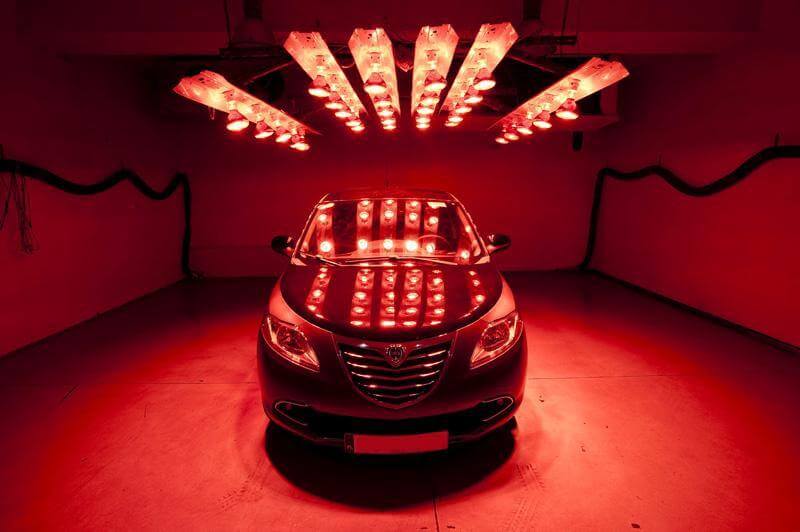

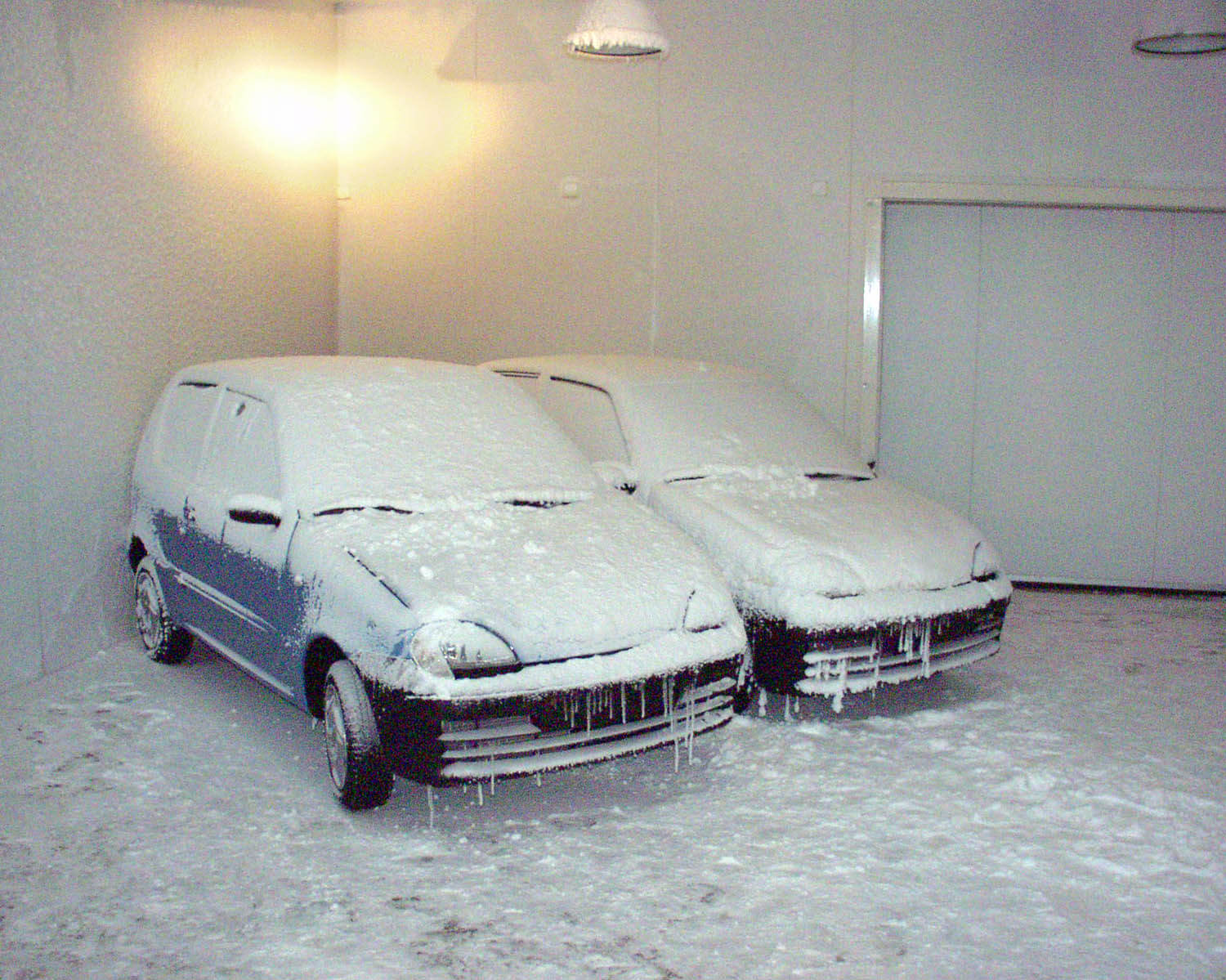

  • Testing in a large-sized climatic chamber
  • Testing in a large-sized climatic chamber
  • Testing in a large-sized climatic chamber
  • Large-sized climatic chamber

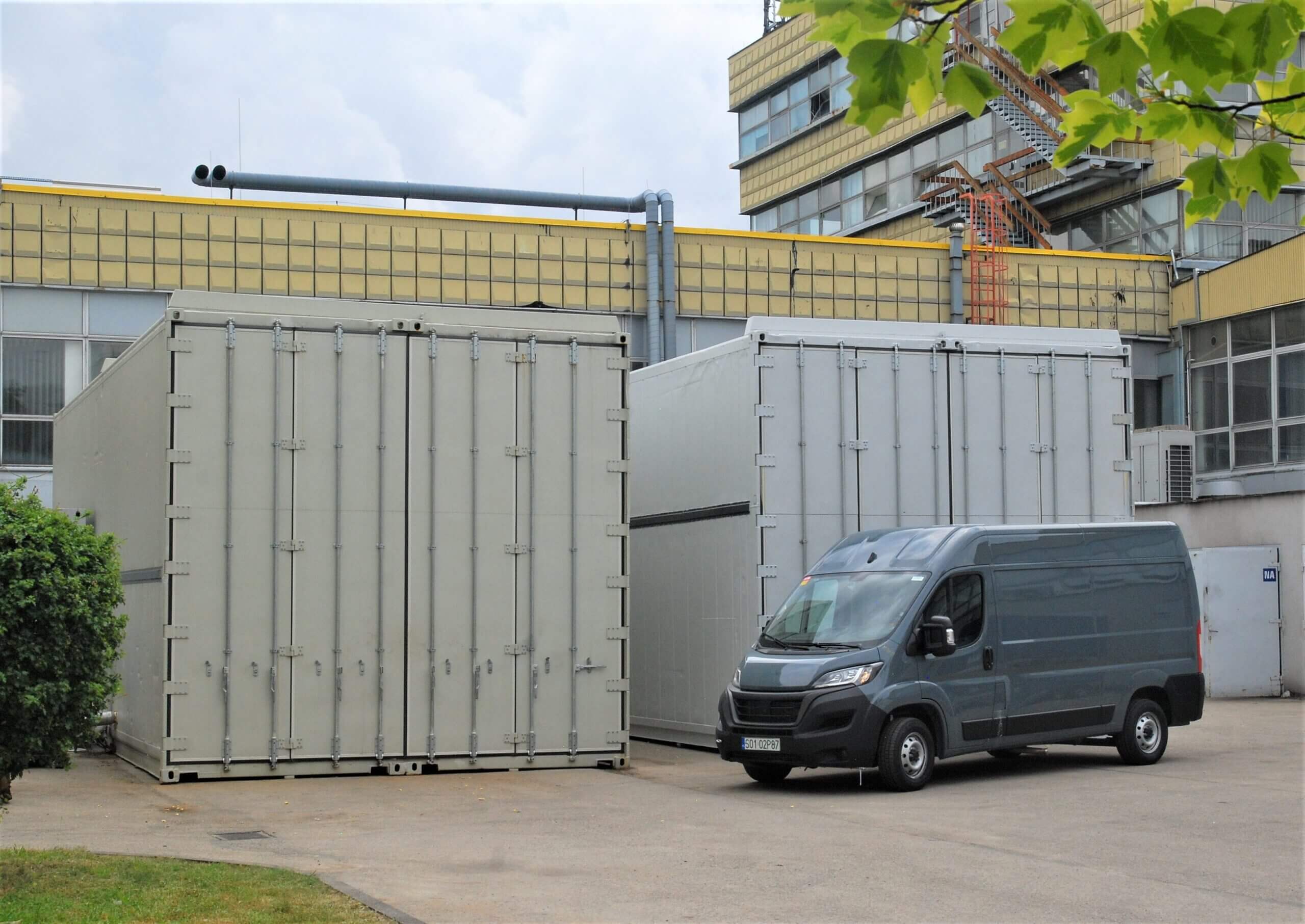

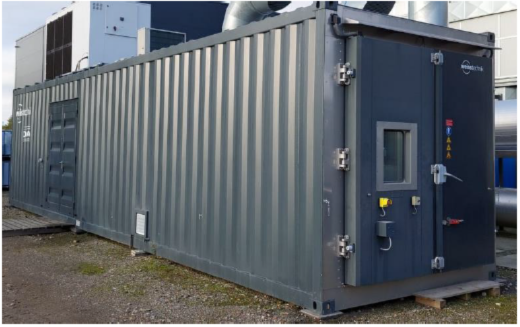

Climate free-standing low-temperature chamber

Parameters:

  • temp.: from -65°C to 65°C
  • possibility to set humidity at levels over 95% with +/-2% accuracy under steady-state conditions, at 55°C
  • chamber dimensions (L×W×H): 11500×4700×4200 mm
  • door dimensions (W×H): 4700×4200 mm

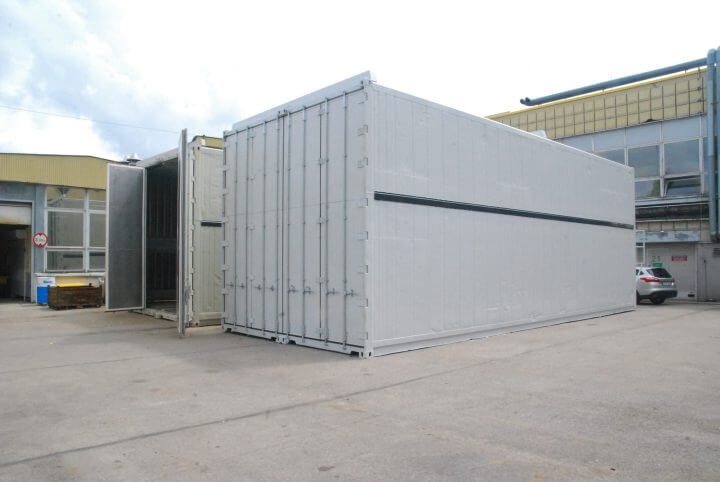

Climate free-standing high-temperature chamber

Parameters:

  • temp.: from 0°C to 65°C
  • possibility to set humidity at levels over 95% with +/-2% accuracy under steady-state conditions, at 55°C
  • chamber dimensions (L×W×H): 11500×4700×4200 mm
  • door dimensions (W×H): 4700×4200 mm

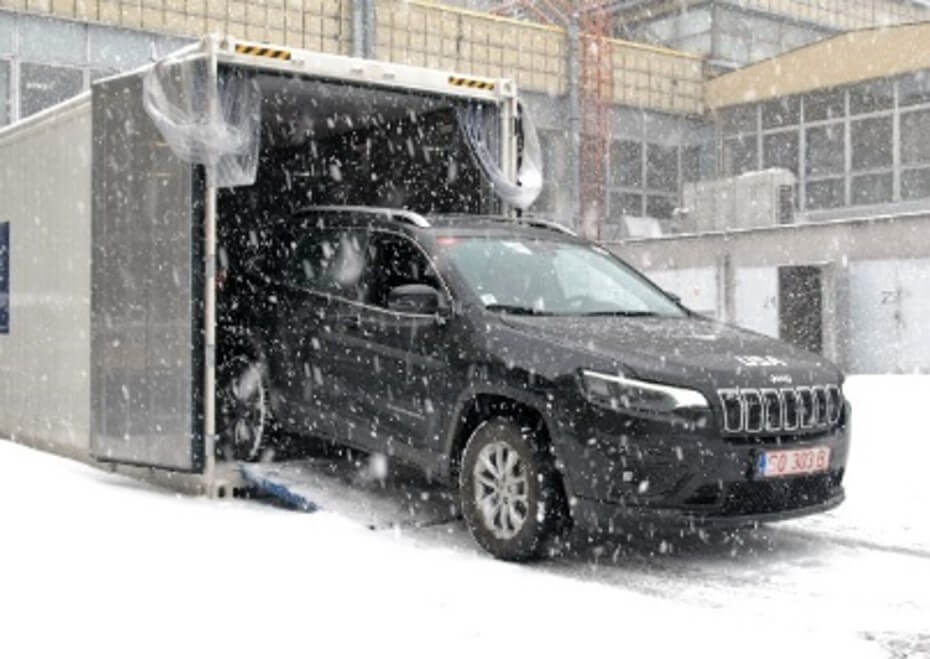

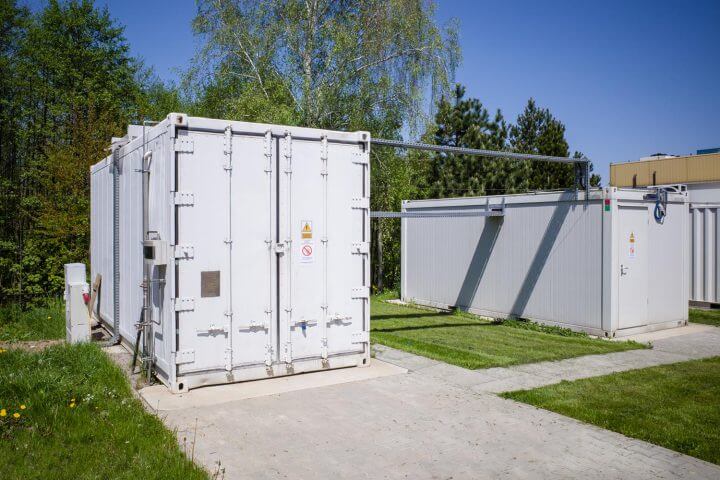

Two free-standing, 12-meter chambers for conditioning test objects (mainly vehicles) and performing tests at various ambient temperatures and humidity levels

Parameters:

  • temp.: from -35°C to 65°C
  • possibility to set humidity at levels over 95% with +/-2% accuracy under steady-state conditions, at 55°C
  • chamber dimensions (L×W×H): 11500×2285×2550 mm
  • door dimensions (W×H): 2285×2550 mm

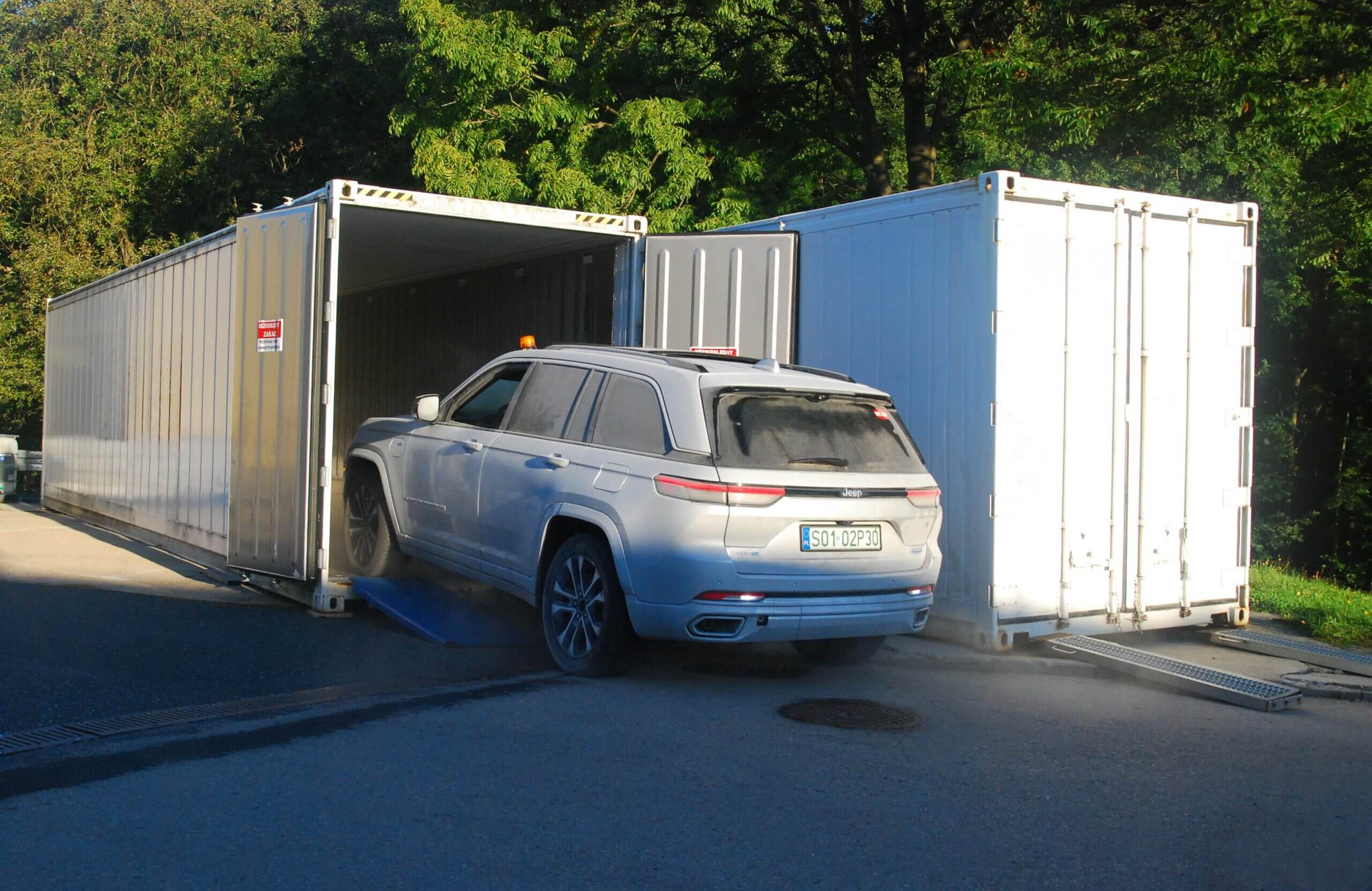

A free-standing, 12-meter chamber used for conditioning research objects (mainly vehicles)

Parameters:

  • temp.: from -35°C to 65°C
  • dimensions of the chamber (L×W×H): 11500×2285×2550 mm
  • door dimensions (W×H): 2285×2550 mm

Free-standing, 6-meter chamber for testing at various ambient temperatures

Parameters:

  • temp.: from -35°C to 65°C
  • humidity: up to 98%
  • dimensions of the chamber (L×W×H): 5500×2285×2550 mm
  • door dimensions (W×H): 2285×2550 mm

Chambers for testing the resistance of products to light and weather conditions

Exposure test chambers for laboratory light sources – Xenon arc lamps

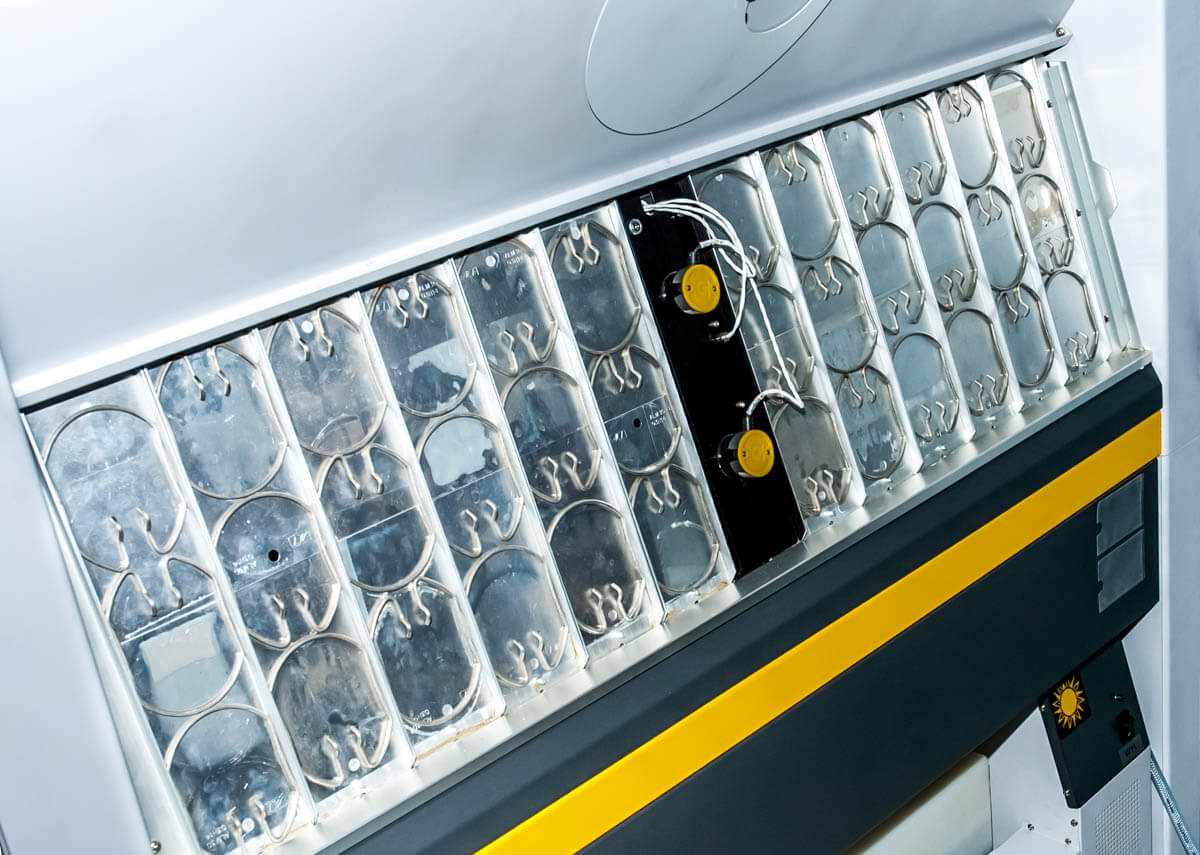

Xenon Weather-Ometer accelerated aging test chambers Ci 3000+i, Ci 4000 and Ci 4400 series from Atlas

The test method involves exposing samples to artificial atmospheric conditions (filtered xenon lamp light, temperature, humidity and overexposure) for laboratory simulation of the ageing processes that occur during natural weathering.

The chambers allow control of:

  • irradiance in W/m2 and light energy in MJ/m2
  • the temperature of the black thermometer and the temperature of the air in the chamber, in the range from 40° to 120°C
  • adjustment of relative humidity of the air in the range from 10 to 100% RH

Resistance to weather conditions is assessed by comparing the colour change of the tested working sample to a sample not exposed by means of a grey scale according to ISO 105-A02.

  • Xenon arc test chambers
  • Xenon Weather-Ometer Ci 4400

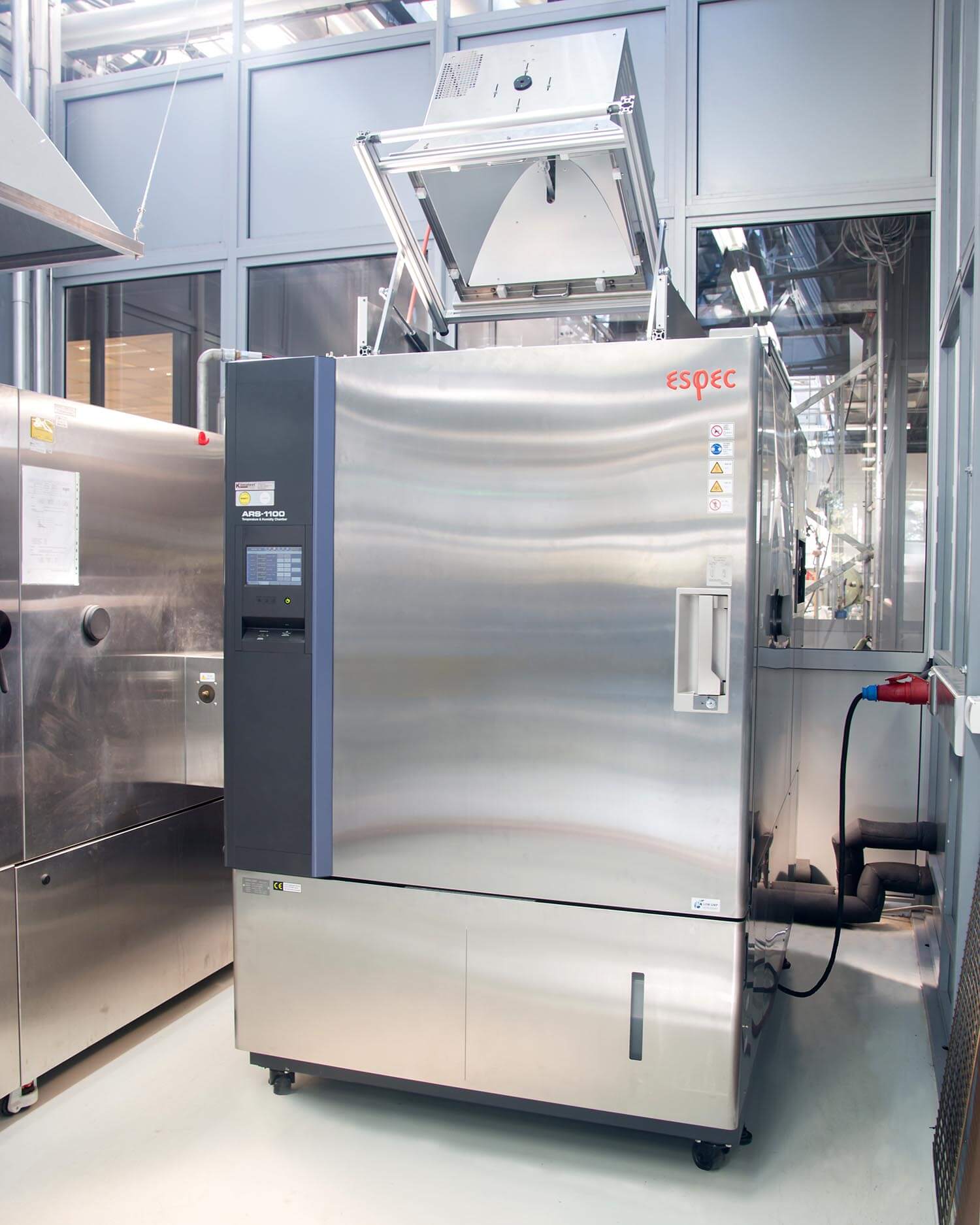

ESPEC Type ARS-1100 climatic chamber with MHG 2500W light module (metal halide lamp)

Chamber’s equipment:

  • Light module SolarConstant 2500W allowing solar radiation simulation

Basic chamber parameters:

  • temperature range: from -75°C to 180°C
  • humidity range: from 10 to 98% RH
  • innternal volume: 1100 L
  • chamber internal dimensions : 1100×1000×1000 mm (width×height×depth)
  • ESPEC Type ARS-1100 climatic chamber with MHG 2500 W light module (metal halide lamp)
  • Interior of ESPEC type ARS-1100 climatic chamber with MHG 2500 W light module (metal halide lamp)

Product UV radiation resistance tests

UVTest is an ageing chamber with 8 fluorescent UV lamps (UVA 340, UVB 313, UVA 351). The device is designed to test resistance to photo-oxidation, i.e. to ultraviolet (UV) radiation in its most destructive range – UVA and UVB, in conjunction with the condensation cycle.

The UVTest chamber allows control of the test parameters: the intensity of the UV radiation and the temperature the samples are exposed to during the test. Programming and monitoring of tests takes place through a built-in microprocessor controller with an LCD touch screen. High repeatability of tests is ensured by the ultraviolet (UV) calibration system.

  • range of radiation intensity adjustment: from 0.35 to 1.55 W/m2 for UV-A lamps and from 0.35 to 1.23 W/m2 for UV-B lamps,
  • black plate temperature (BPT) control range: 35-80°C for the light phase; 35-60°C for the condensation/coating phase.

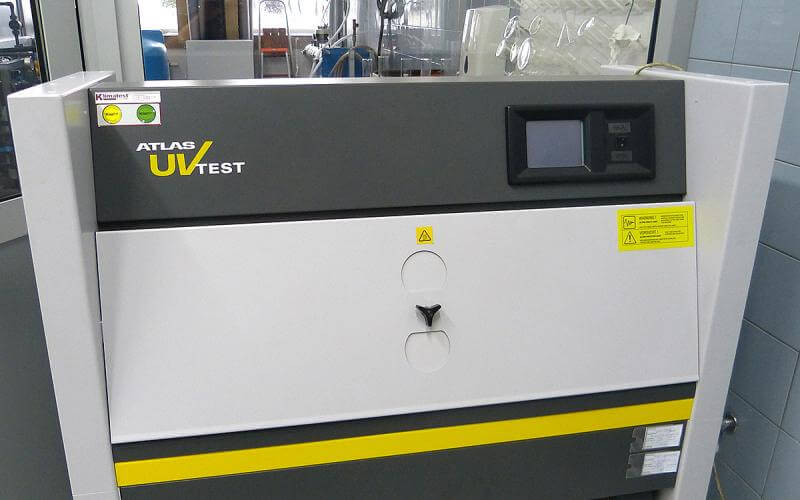

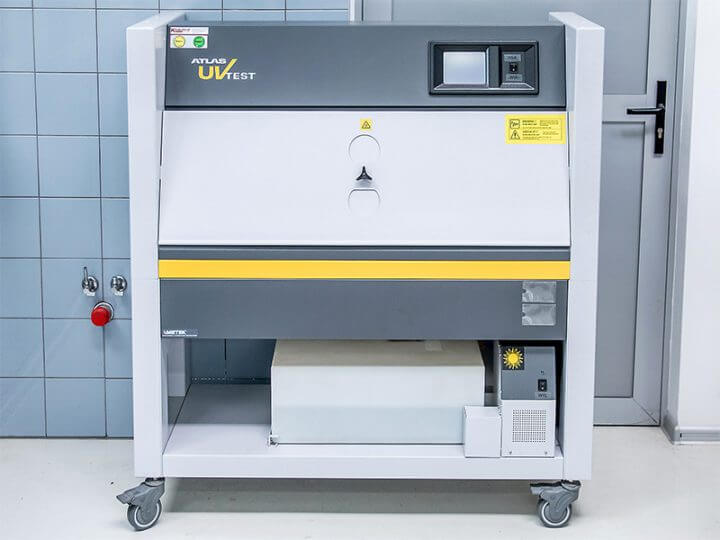

  • UVTest chamber
  • Interior of UVTest chamber

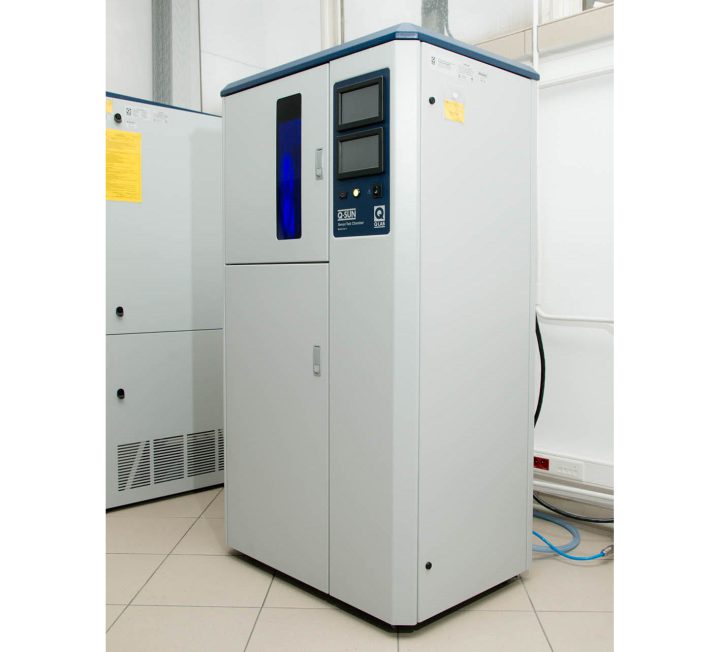

Q-SUN Xe-2-HBSE Xenon lamp aging chamber

The Q-SUN Xe-2 chamber, with a xenon lamp mounted inside a rotating drum with sample holders, is a device for ageing, light resistance and photo stability testing. It allows damage caused by exposure to the total spectrum of sunlight and rain to be reproduced. Within a few days or weeks, the Q-SUN Xe-2 test chamber can reproduce material damage that occurs over months or years under atmospheric conditions. The following test parameters are controlled:

  • spectrum (full range of sunlight)
  • irradiance
  • relative humidity (20-95%)
  • temperature in the chamber
  • reference temperature of a black thermometer
  • shower (front and back)

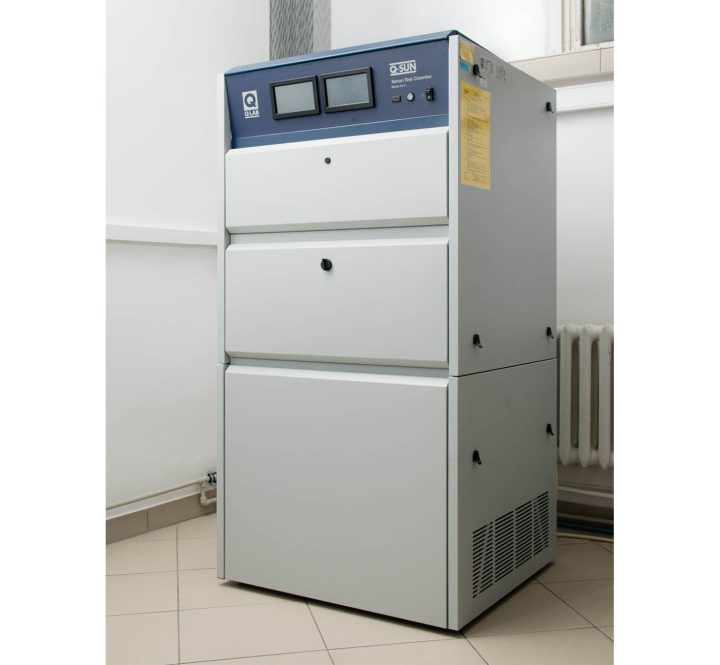

Q-SUN Xe-3-HBSE Xenon lamp aging chamber

The Q-SUN Xe-3 chamber, with 3 Xenon lamps placed over horizontally positioned samples, is a device for testing ageing, light fastness, colour fastness and photo stability. It allows damage caused by exposure to the total spectrum of sunlight and rain to be reproduced. Within a few days or weeks, the Q-SUN Xe-2 test chamber can reproduce material damage that occurs over months or years under atmospheric conditions. The following test parameters are controlled:

  • spectrum (full range of sunlight)
  • irradiance
  • relative humidity (20-95%)
  • temperature in the chamber
  • reference temperature of a black thermometer
  • spray on samples (simulated rain, spray on two sides, spray with other liquid)

Ozone ageing test chamber

ANSEROS SIM6300-TH Ozone resistance test chamber

The chamber assesses the resistance to cracking of a rubber or thermoplastic rubber subjected to static or dynamic tensile strains in the atmosphere with a certain concentration of ozone, temperature and humidity. The ozone chamber with a working volume of 310 litres also allows the testing of objects other than rubber or rubber in a wide range of ozone concentrations, from 25 to 1000 pphm.

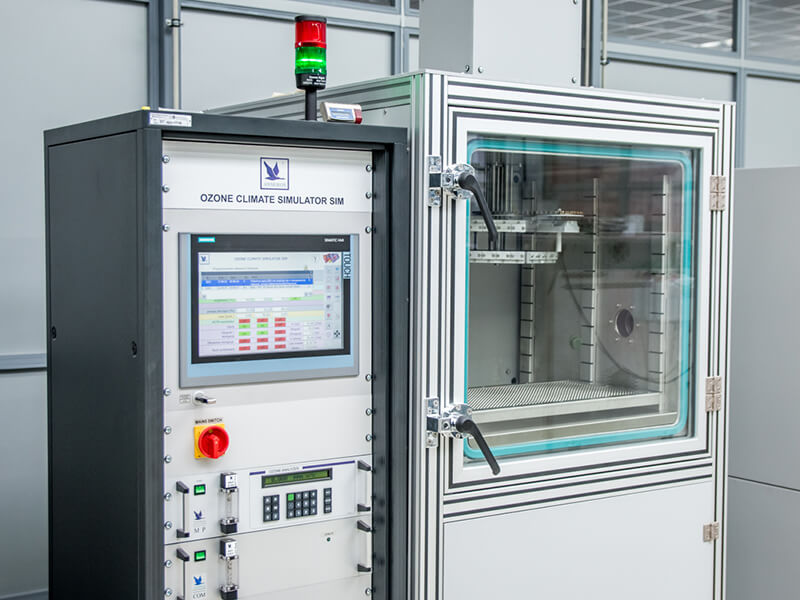

  • Anseros SIM6300-TH ozone chamber and 400/130 AB/DU-Oz ozonometer
  • • Interior of the ozone chamber with devices for static and dynamic testing

High-pressure and product tightness test chambers

High-pressure pulsation and burst test chambers

More details on the page: Pressure tests

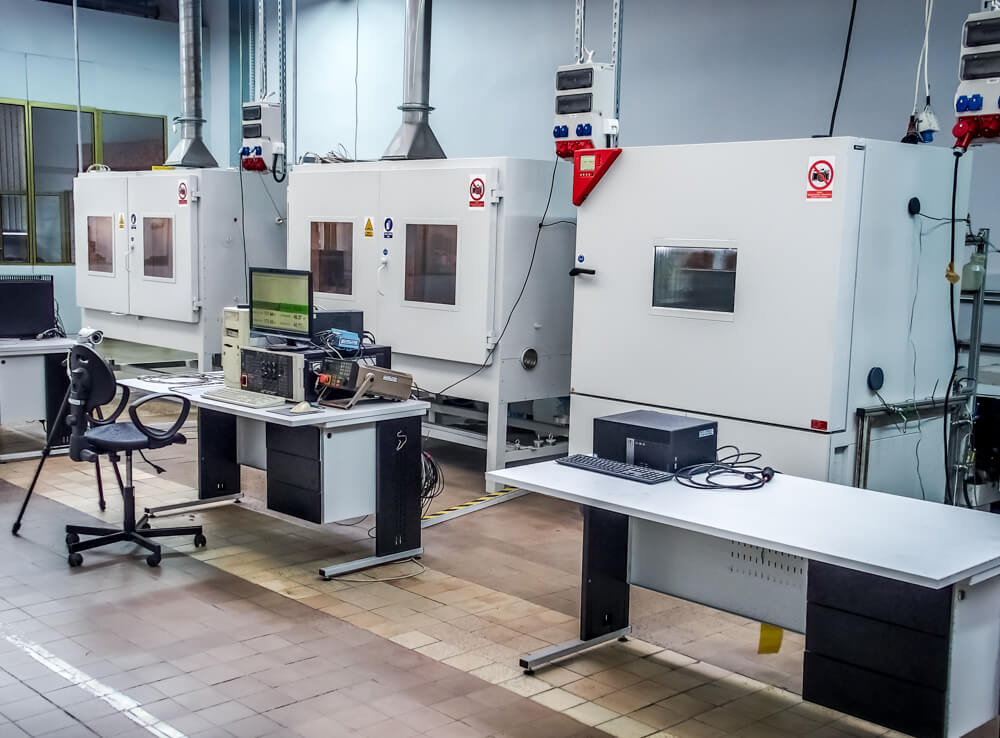

  • High-pressure pulsation and burst test chambers

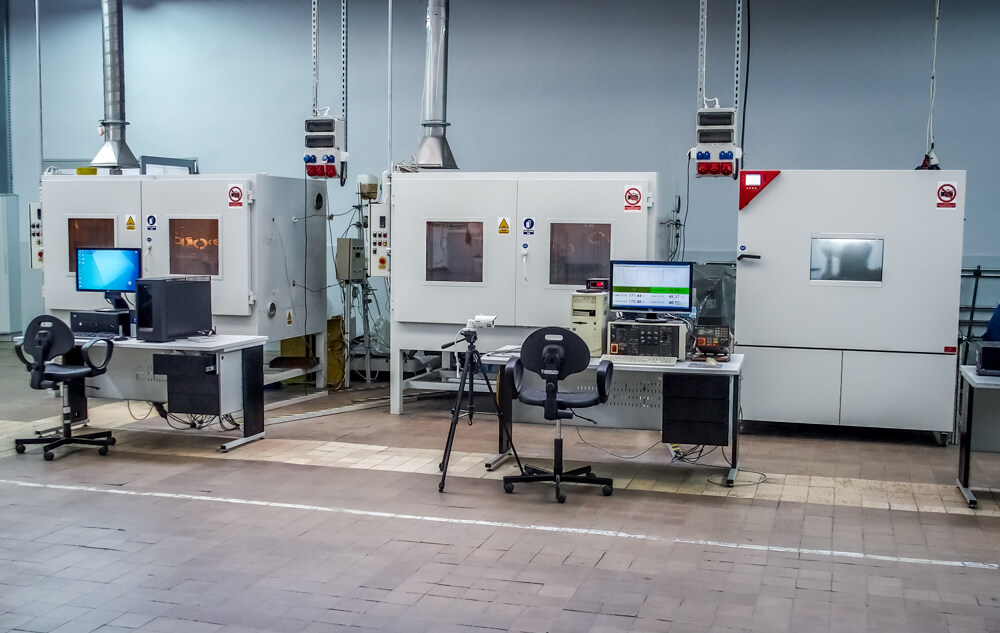

  • High-pressure pulsation and burst test chambers

Product tightness tests in chamber – helium tightness

Devices

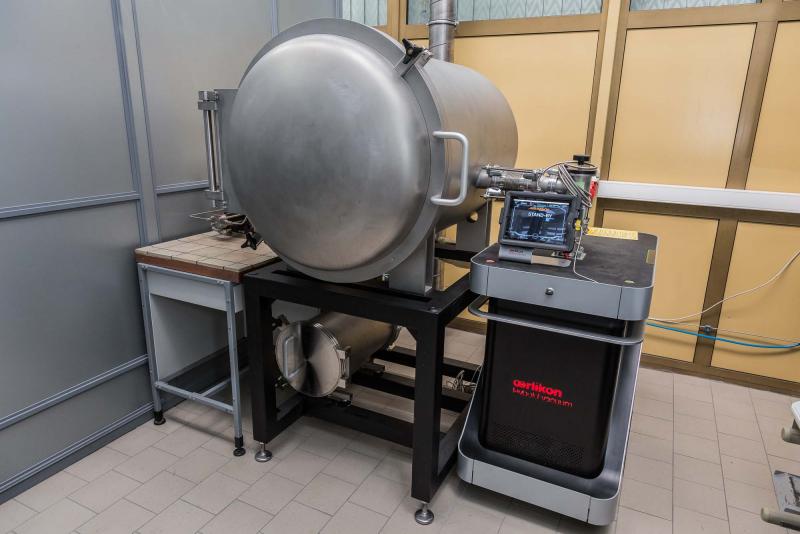

  • PHOENIX L500i helium leak detector (range from 1000 mbar∙l/s to <5×10-12 mbar∙l/s)
  • Haskel Ag-75 compressor, permitting helium pressures of over 400 bar to be achieved
  • test chambers: 300×300×500 mm; 800×800×1000 mm

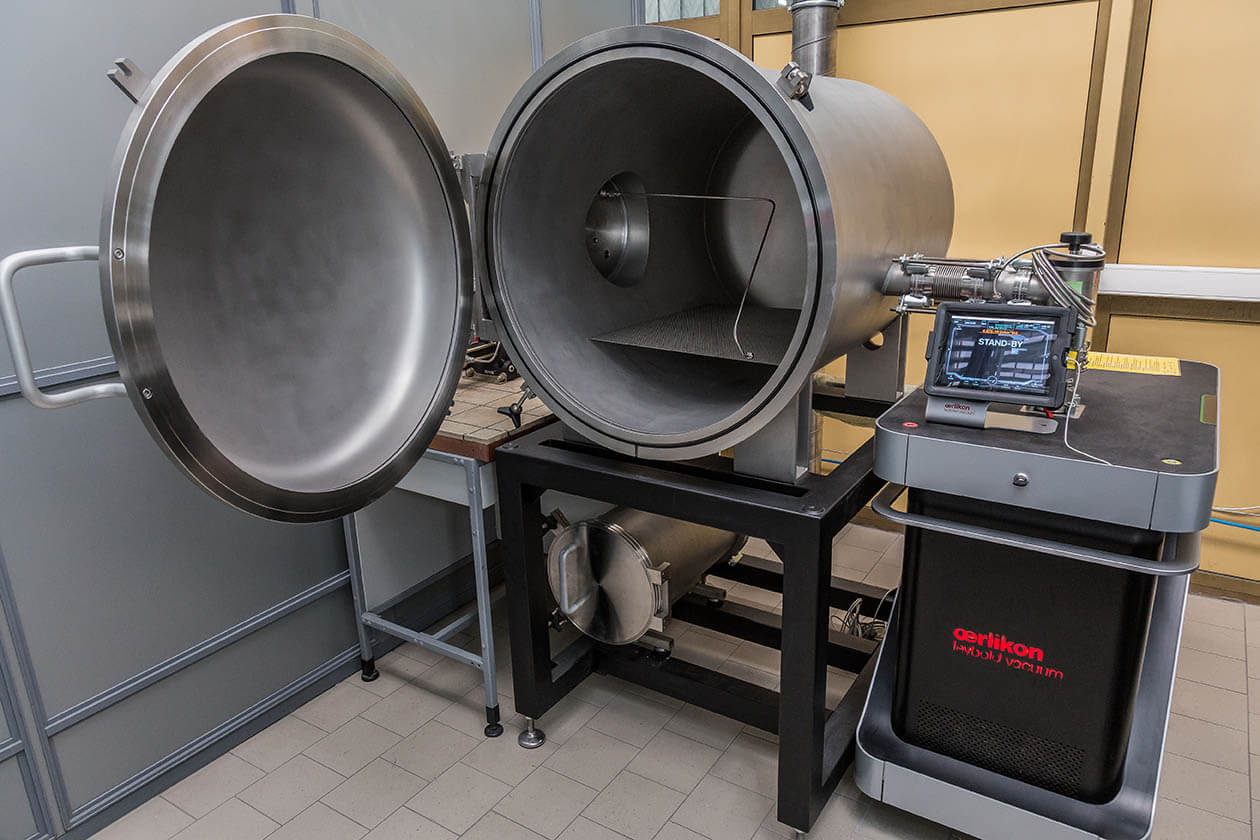

  • Helium leak detector and two test chambers
  • Helium leak detector and two test chambers

Shock test chambers

Climats shock chamber

The shock chamber is designed to expose the tested sample to thermal shocks. The device is a horizontal chamber, i.e. the working chambers are located next to each other.
The shock chamber enables execution of tests of the resistance of parts and devices to rapid temperature changes (temperature shocks). The shock test in the device is carried out by means of an automatically controlled elevator moving between chambers with two extreme temperatures: high and low. It is possible to perform an accurate simulation in accordance with various standards (including: PN-EN 60068-2-14, PN-EN 60068-2-1, PN-EN 60068-2-2 and others – in terms of the technical possibilities of the chamber).

Basic technical parameters of the chamber:

  • temperature range: from -70°C to 180°C
  • direction of basket movement: horizontal
  • basket capacity: 512 l
  • basket dimensions: (80×80×80) cm
  • max. basket load: 80 kg
  • max. adjustable transition time: 10 – 40 s
  • Climats shock chamber and climate chamber
  • Interior of Climats shock chamber

Back
to top
