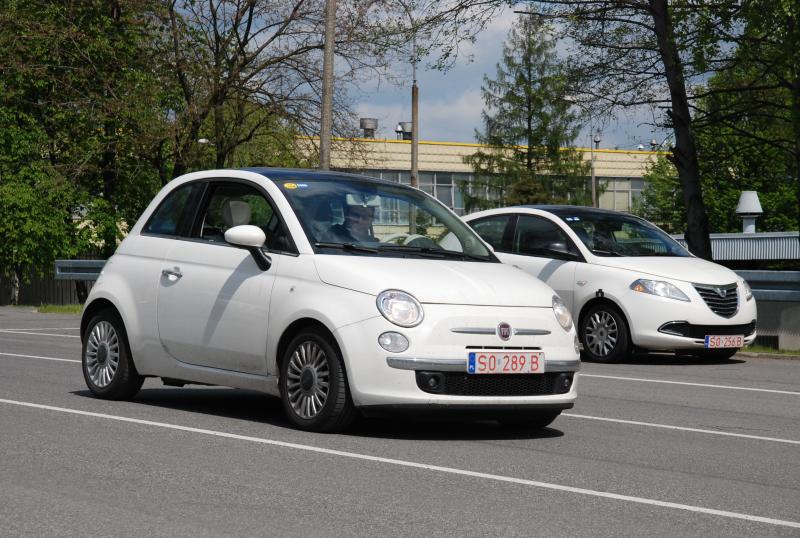

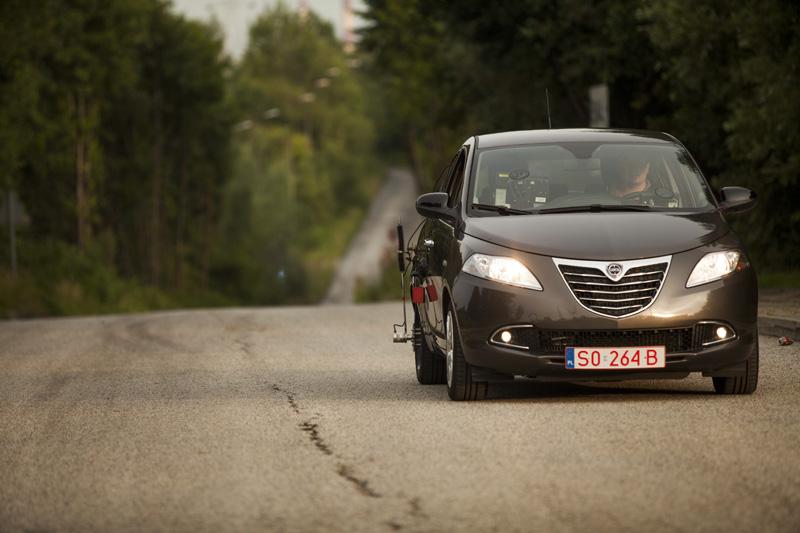

Vehicle road tests

BOSMAL conducts:

• durability, reliability and functionality/drivability tests of the entire vehicle under on-road conditions
• analysis of vehicle faults and irregularities in functioning
• evaluation of durability and functionality of selected vehicle assemblies
  • reliability growth, EOBD, IUPR trials and others
  • passenger cars, trucks, buses of all types, trailers and semi-trailers
  • powertrains: combustion engine (petrol, diesel, LPG, CNG, biofuels, others); electrical, hybrid

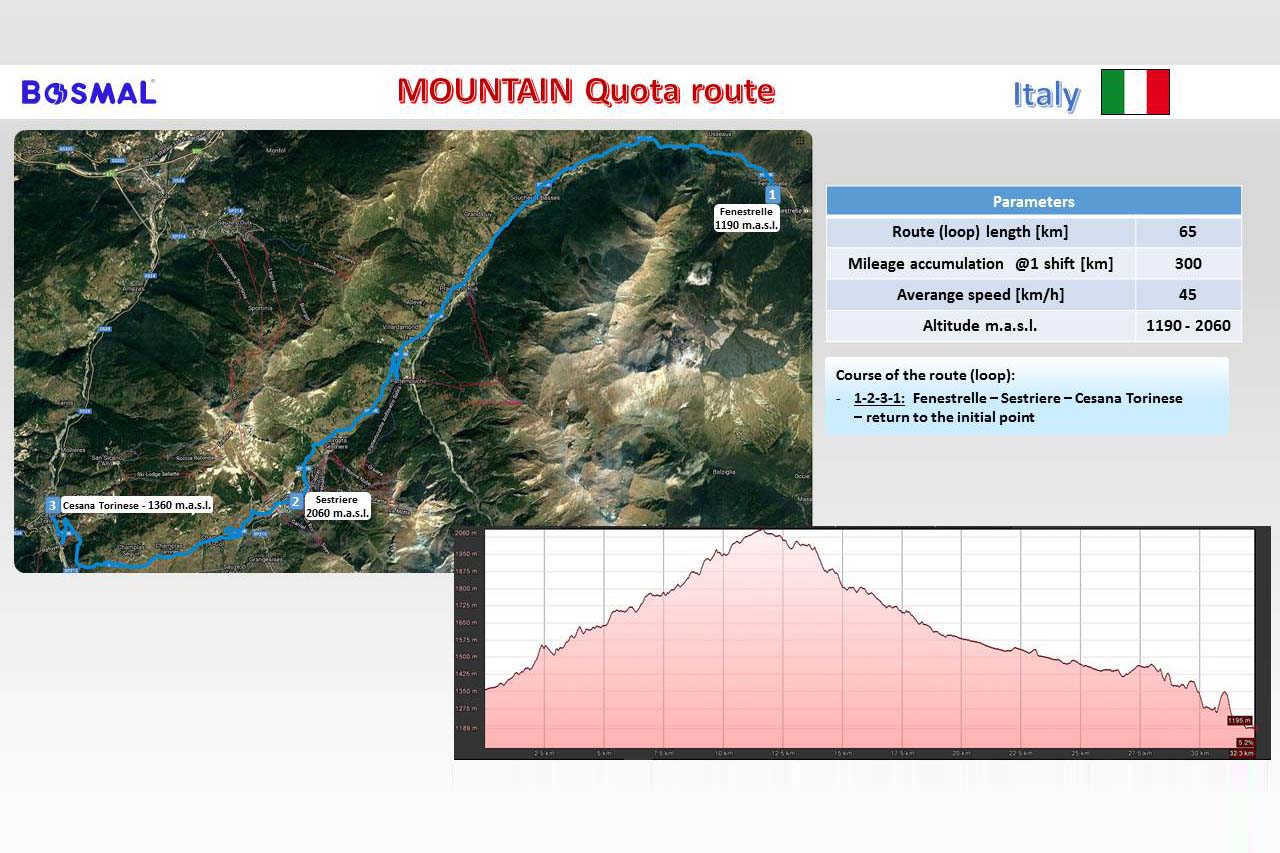

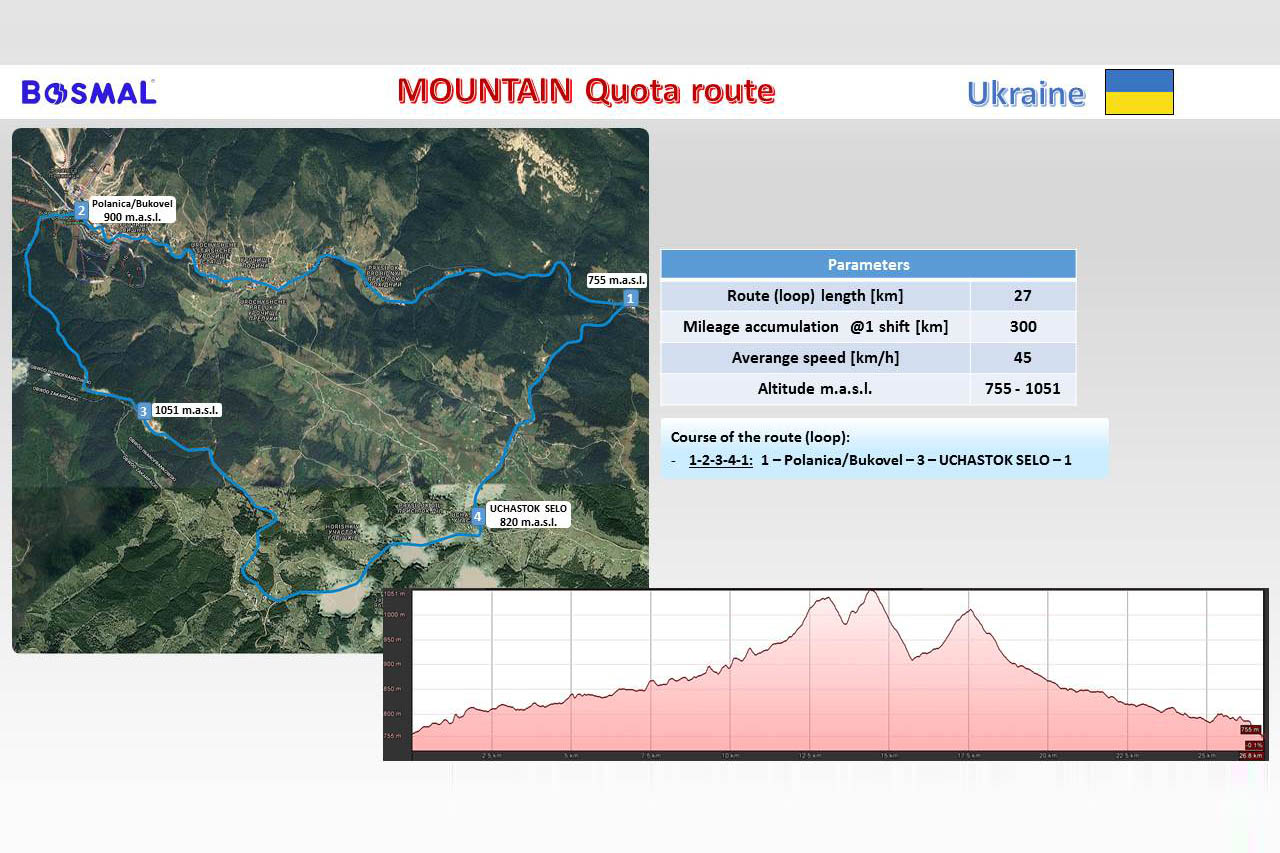

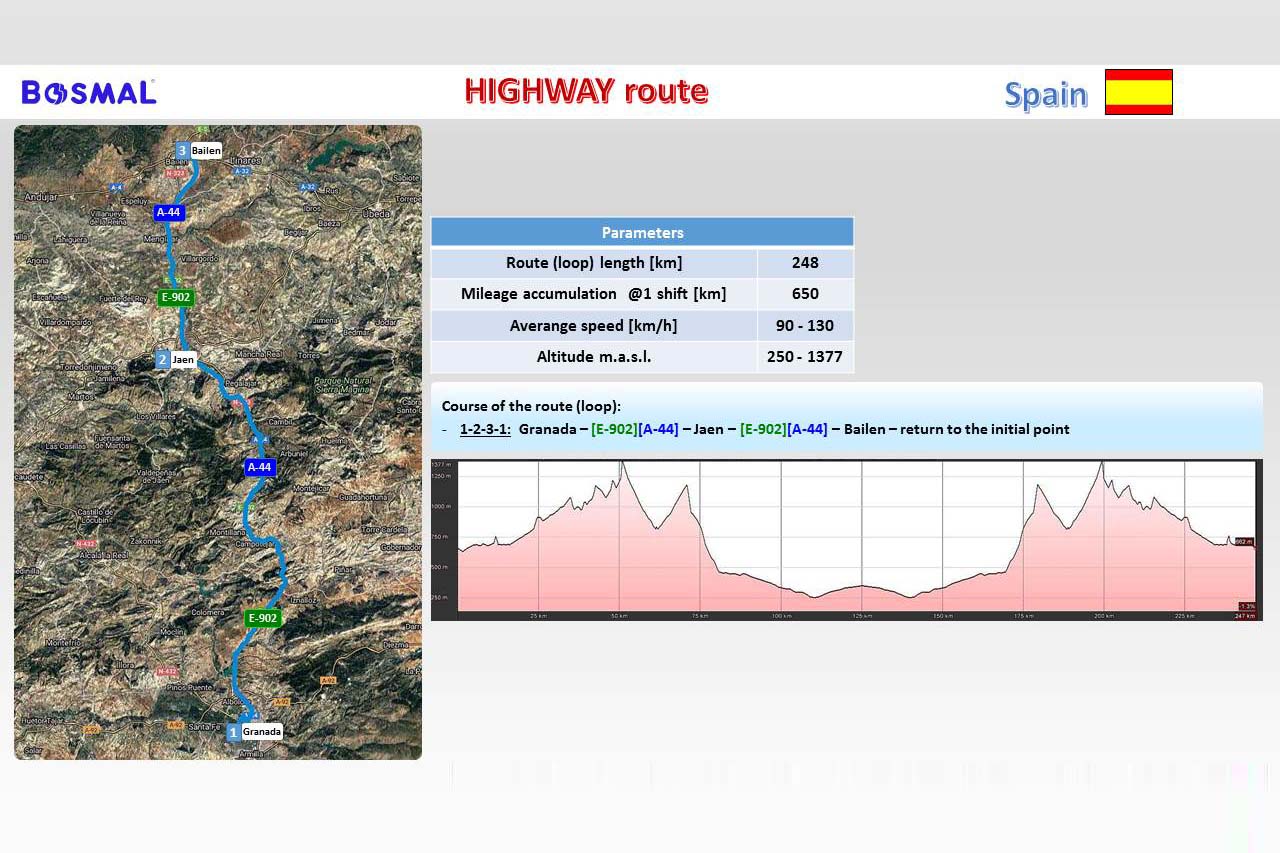

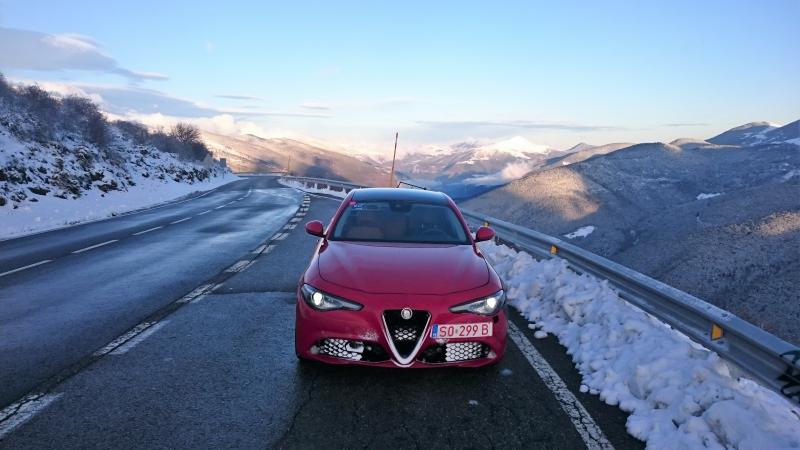

  • different route types: urban, suburban, highway, mountain, off-road, high speed track

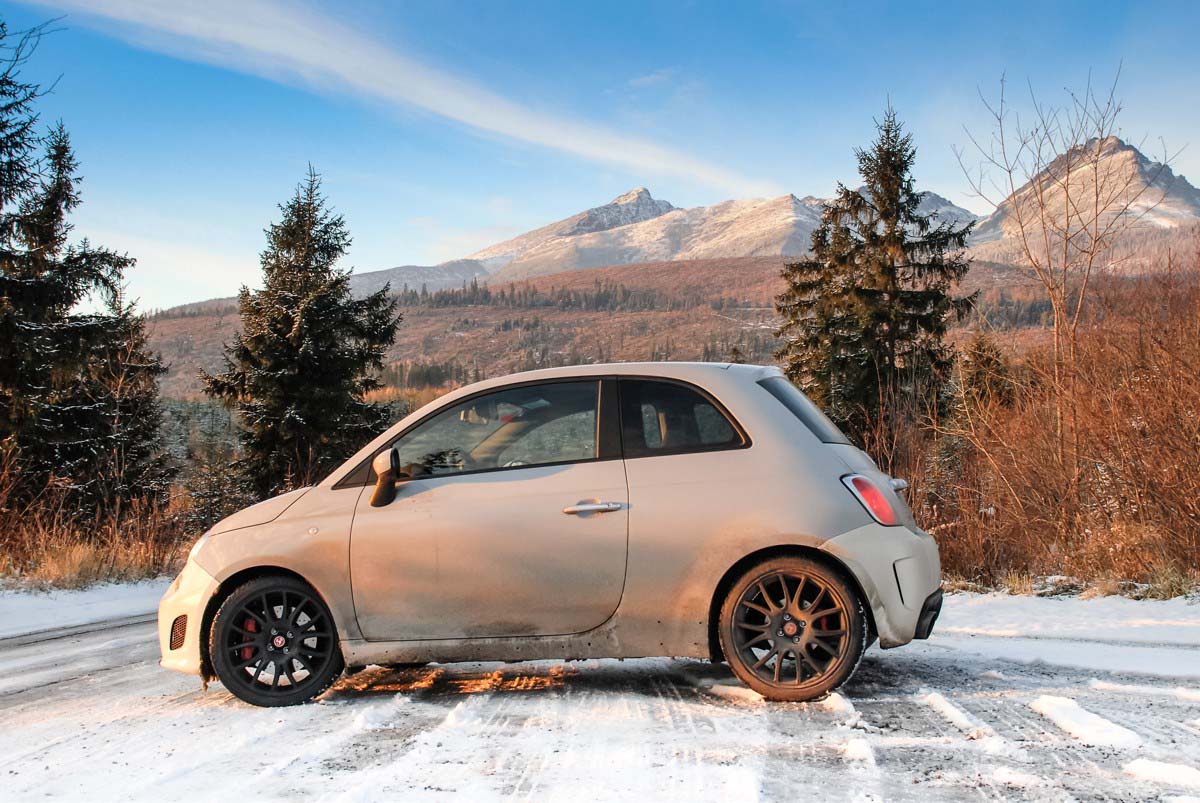

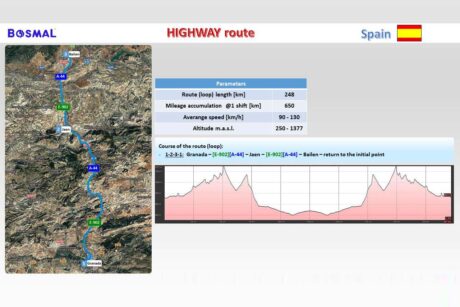

  • possibility of conducting tests outside Poland: in Italy, Spain, Ukraine, Sweden and other European countries, with special requirements (for example, ambient temperature or altitude)

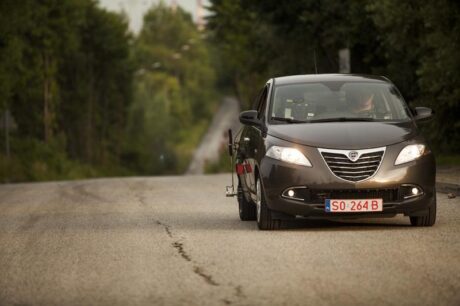

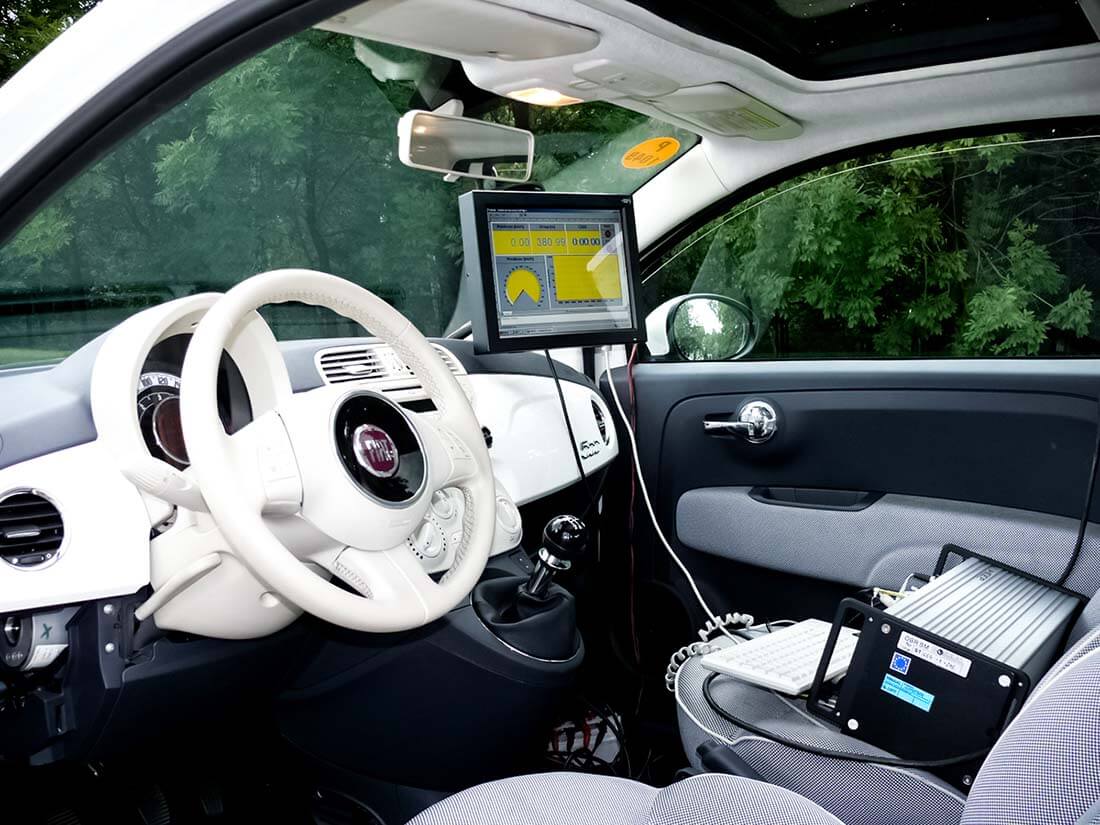

The system for measurements of vehicle travel parameters based on GPS

• Other measurements of vehicle dynamics that require determination of the location, speed and acceleration of the vehicle in longitudinal and lateral directions

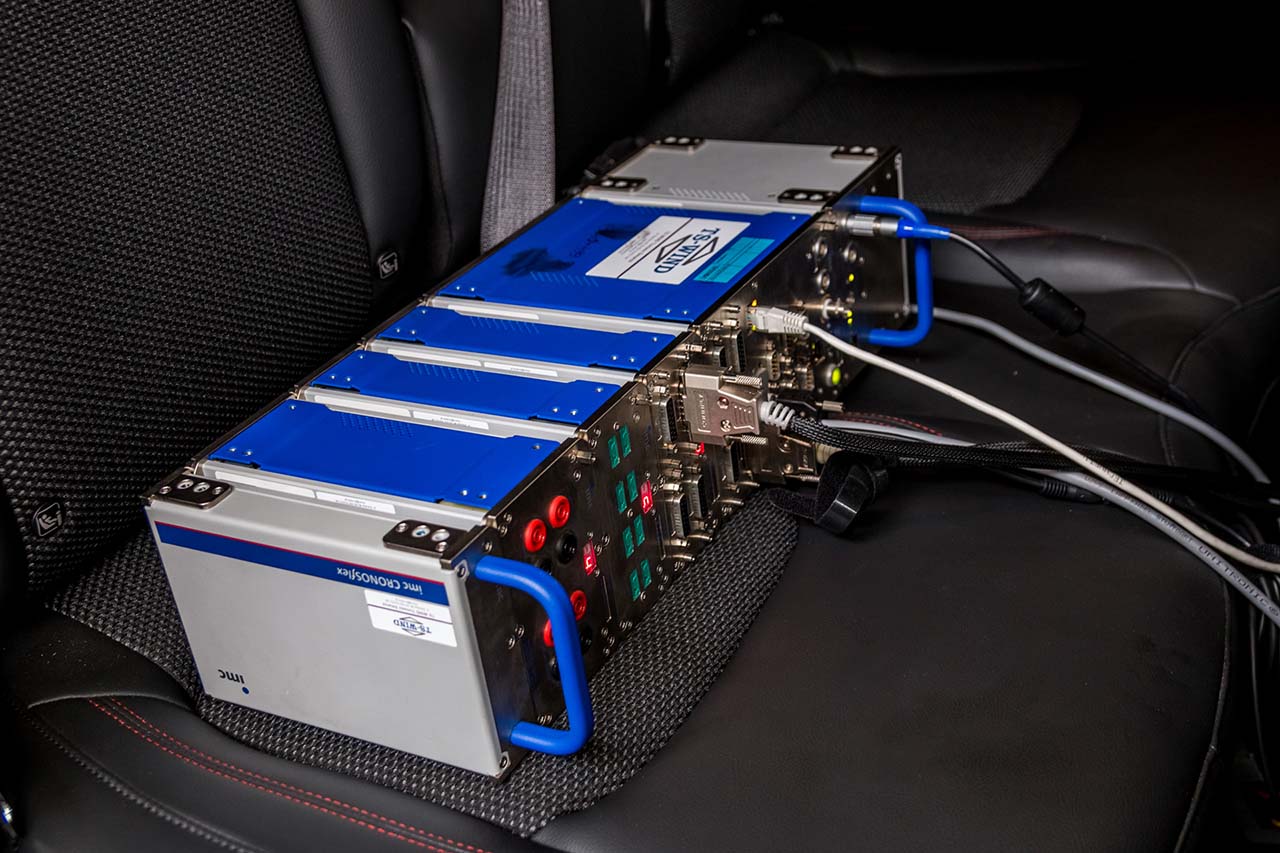

• Measurements made on the road with a no-contact method or with the use of Corrsys-Datron measurement systems with Correvit optical sensor head or inertial navigation system with GNSS OxTS RT2002.

We conduct:

• Measurements of maximum speed
• Measurements of acceleration rate
  • From a standing start, shifting through the gears, or in a chosen gear
  • From a running start, commencing from a chosen speed
• Determination of rolling resistance
  • vehicles of all types; special vehicles, tractors
  • combustion engine (petrol, diesel, LPG, CNG, biofuels, others), electric and hybrid powertrains
  • tests according to UNECE Regulation No. 68
  • measurements performed on-road by a contactless method by means of Corrsys-Datron measuring sets with a Correvi optical head

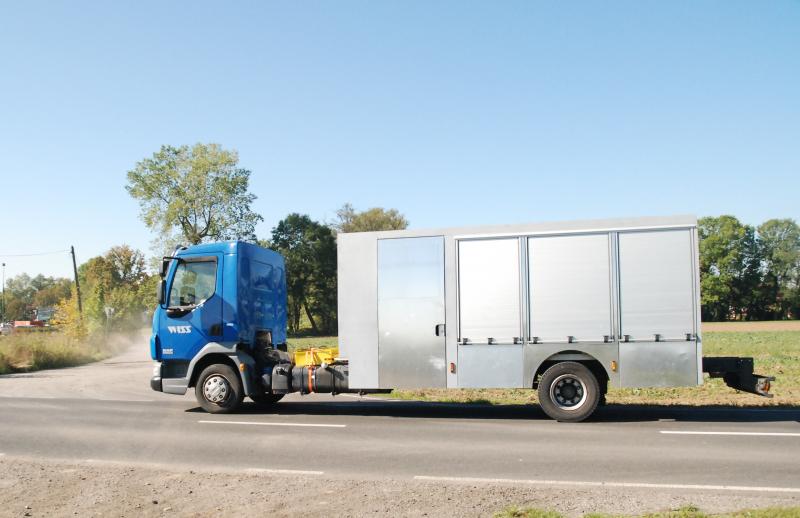

We perform:

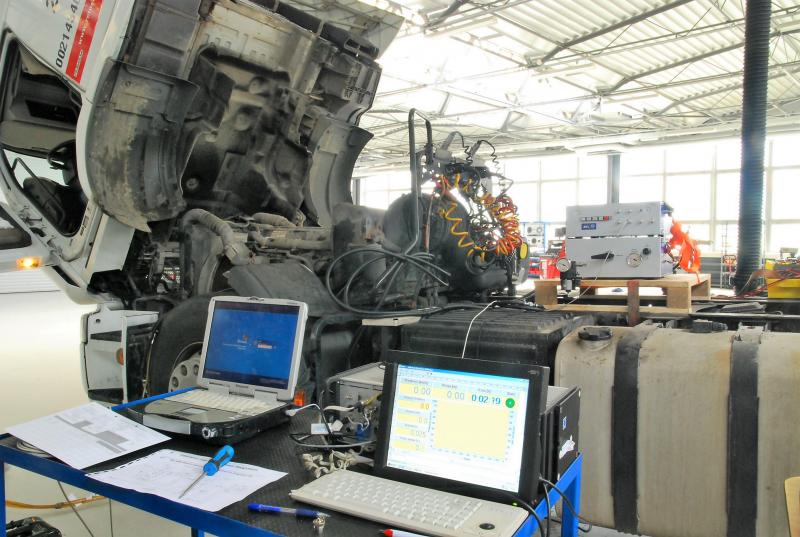

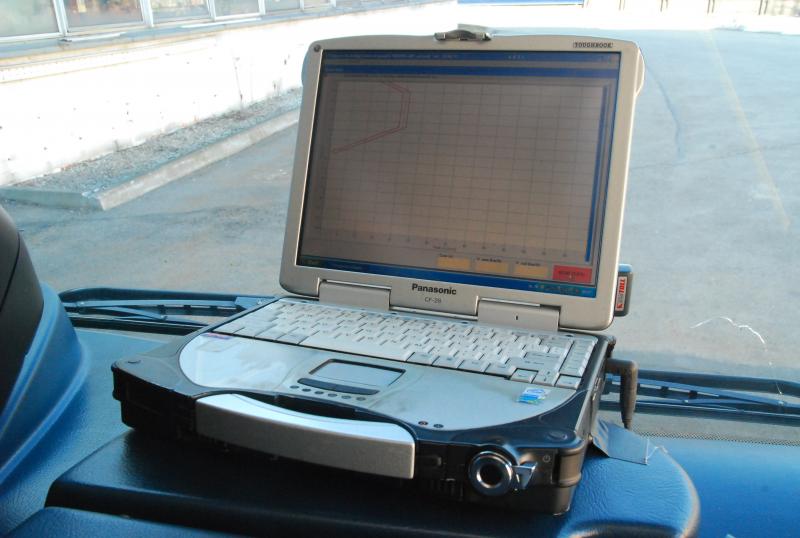

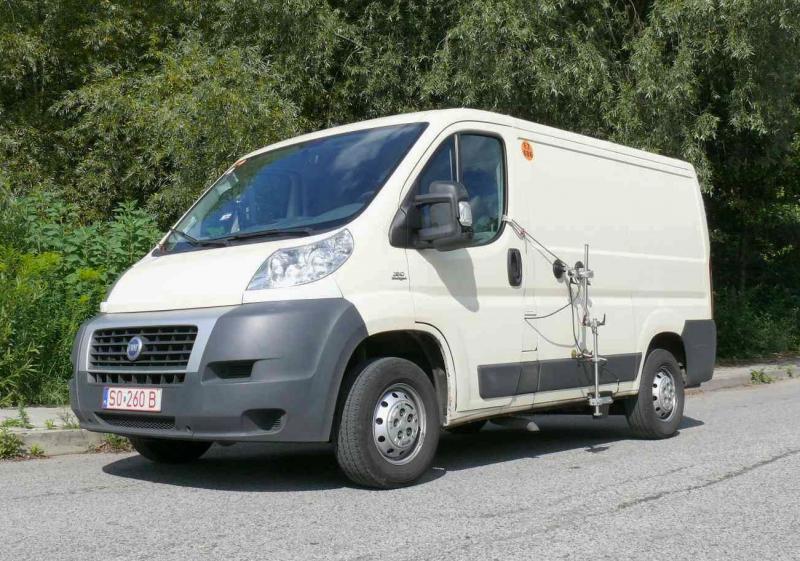

• Measurements of operating fuel consumption on designated routes
• On-road measurements of fuel consumption at constant speed – UNECE Regulation No. 84

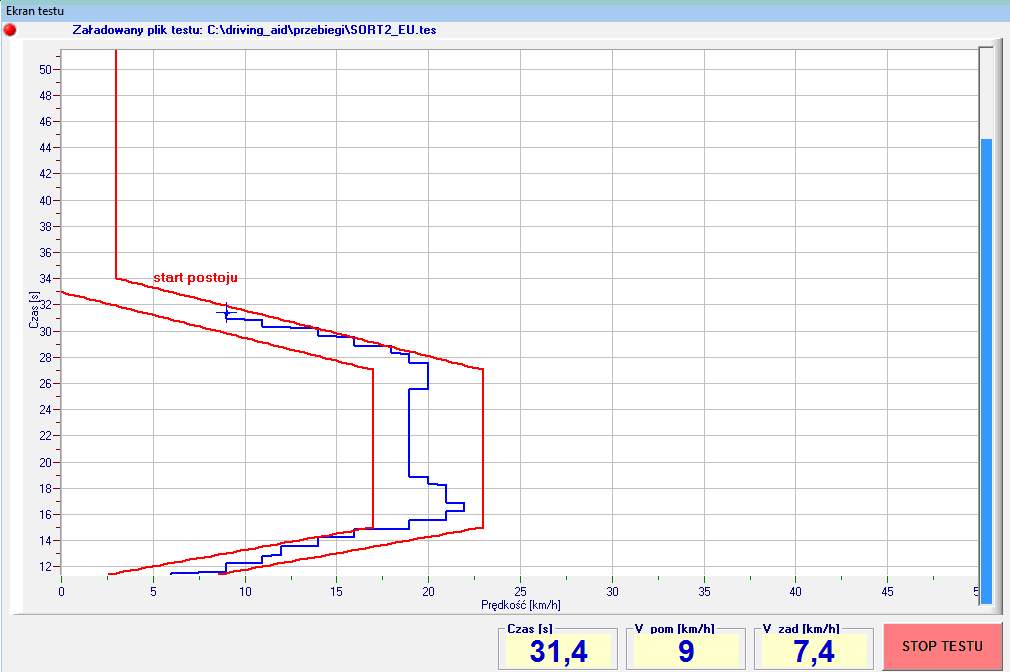

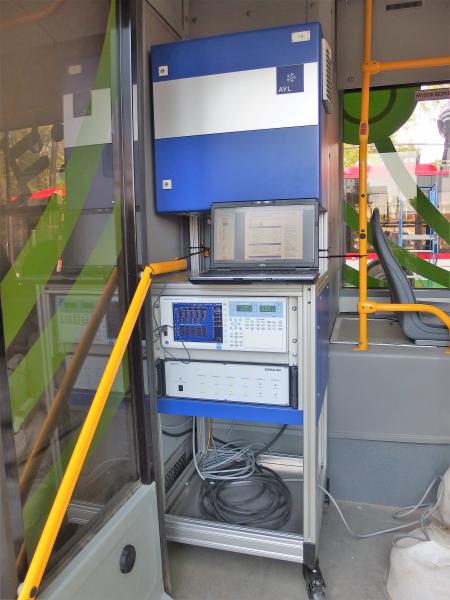

• Measurements of fuel consumption over the SORT on-road cycle (buses) – UITP Project SORT (Standardised On-Road Test Cycles)
  • vehicles of all categories, special vehicles, tractors, working machines and others
  • various types of fuels: petrol, diesel, biofuels

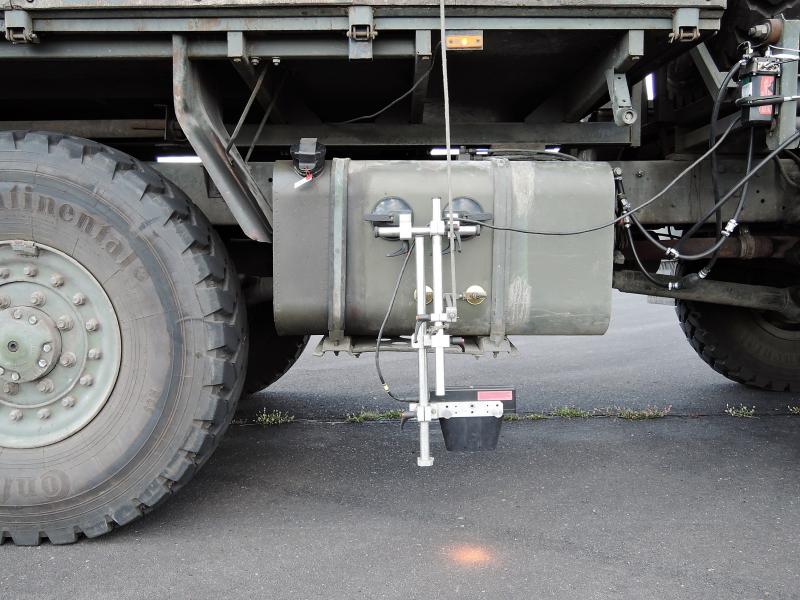

  • measurements performed by volumetric method, by means of Pierburg, AVL flowmeters
  • range up to 150 l/h

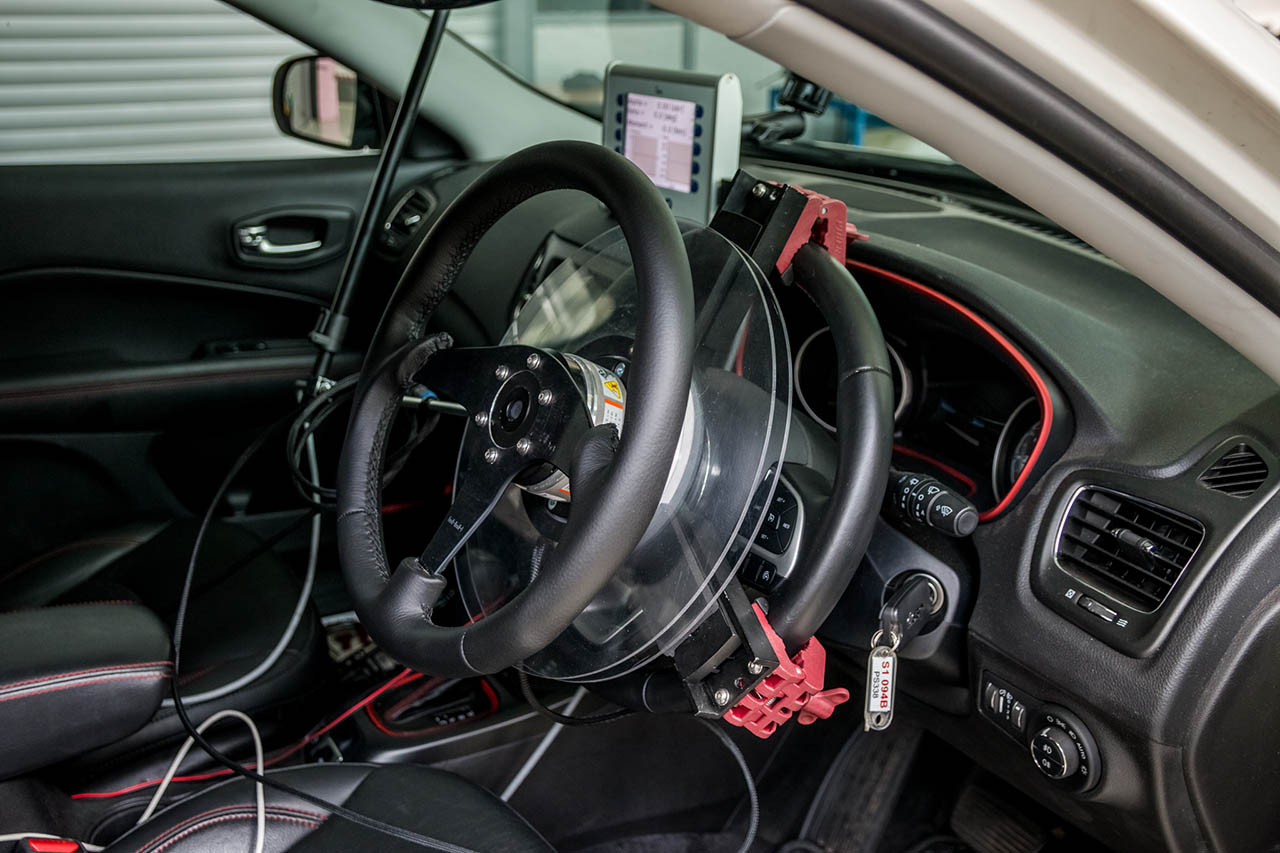

Tester for measurements of the steering wheel angle and torque

BOSMAL carries out:

• Tests that require measurements of the steering angle and torque on the steering wheel
• Cars of any category, special vehicles
• Tests according to and compliant with the Regulation No. 79 of the UN/ECE
• The measuring unit is based on two sensors: torque sensor and incremental encoder, with torque measuring range up to 200 Nm.

• Cars, trucks and buses of all types
• UNECE Regulation No. 39
• Tests for purposes of vehicle type approval

• Cars, trucks and buses, special vehicles

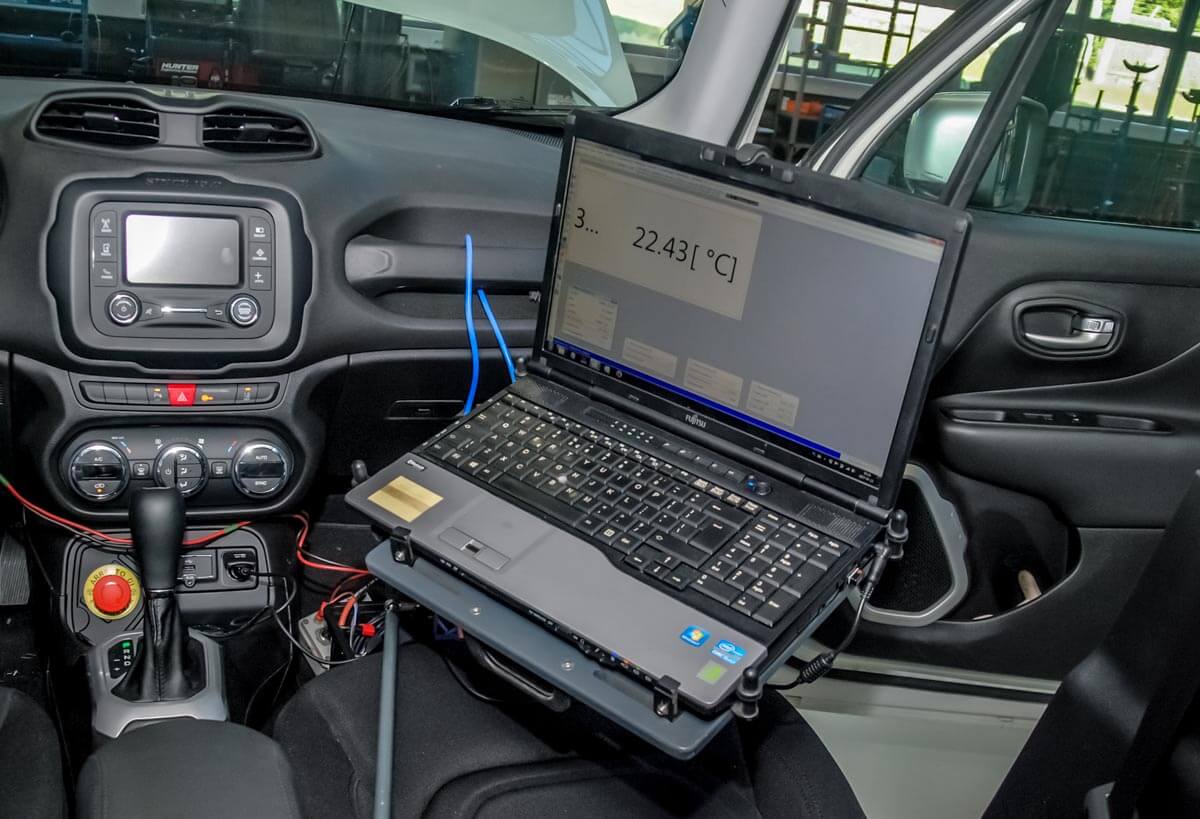

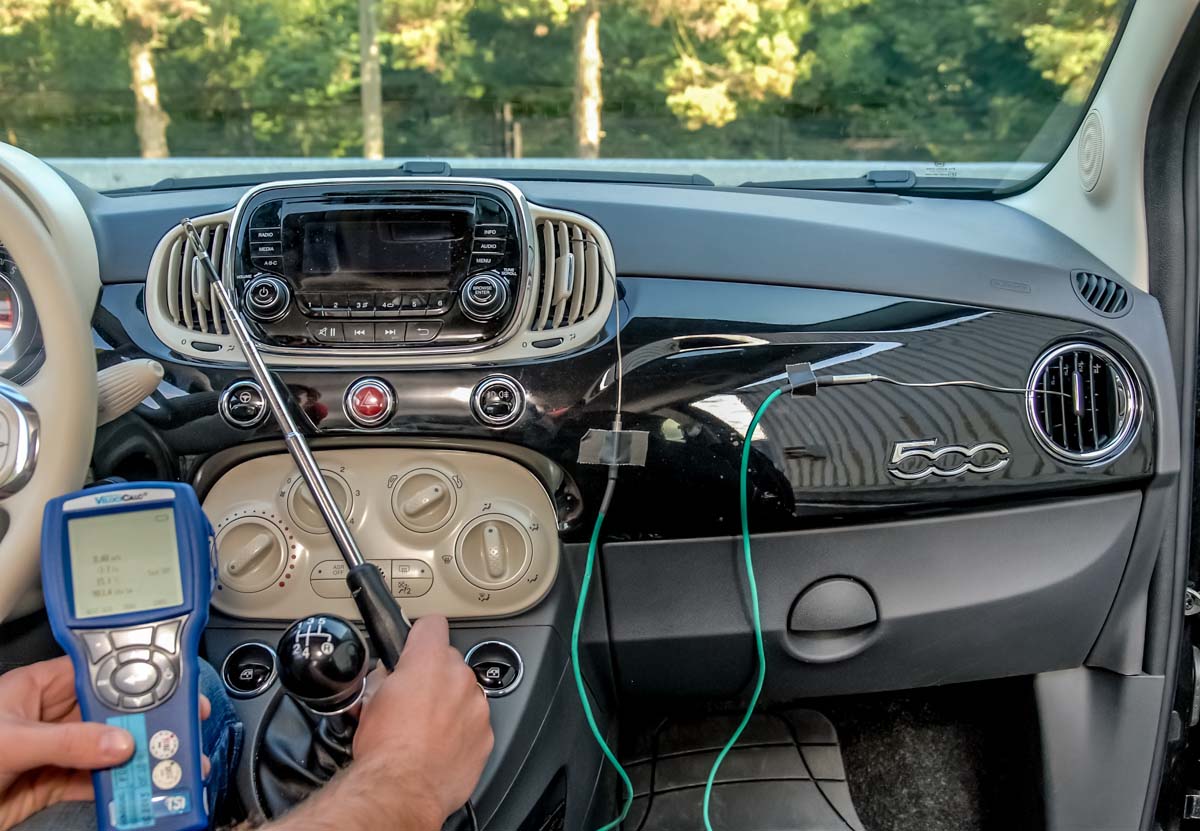

• Methods to measure the temperature at designated locations within the car while driving

• Automobiles, trucks and buses
• Exhaust system, cooling system, transmission and others
• Temperature range: from -30°C (-22°F) to 1200°C (2192°F)
• Pressure range: from 1 to 200 bar

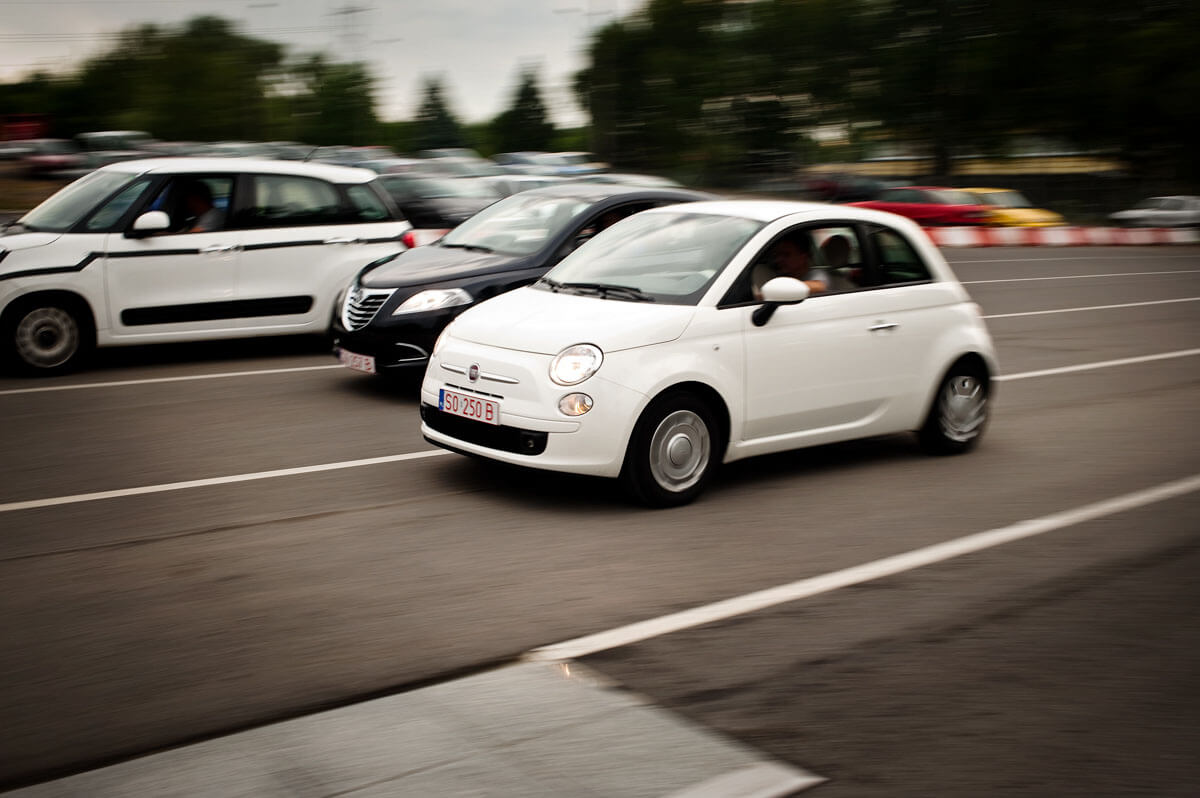

We carry out:

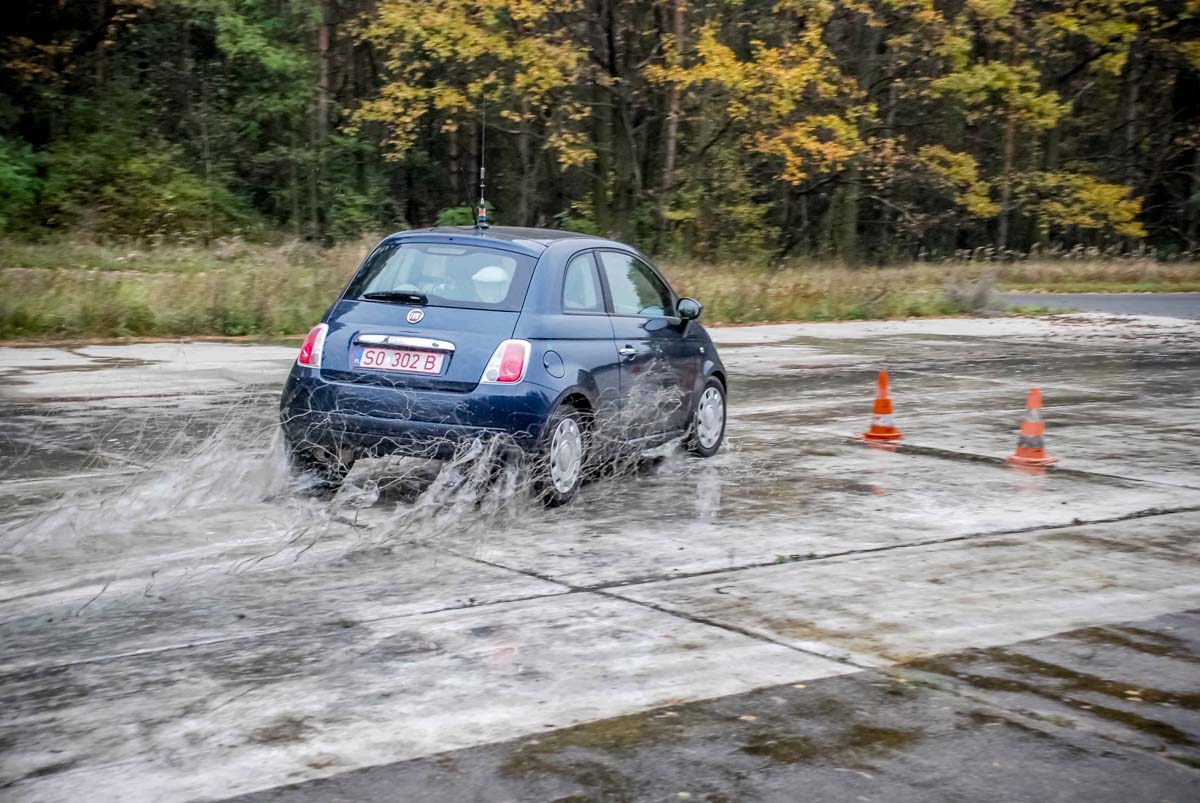

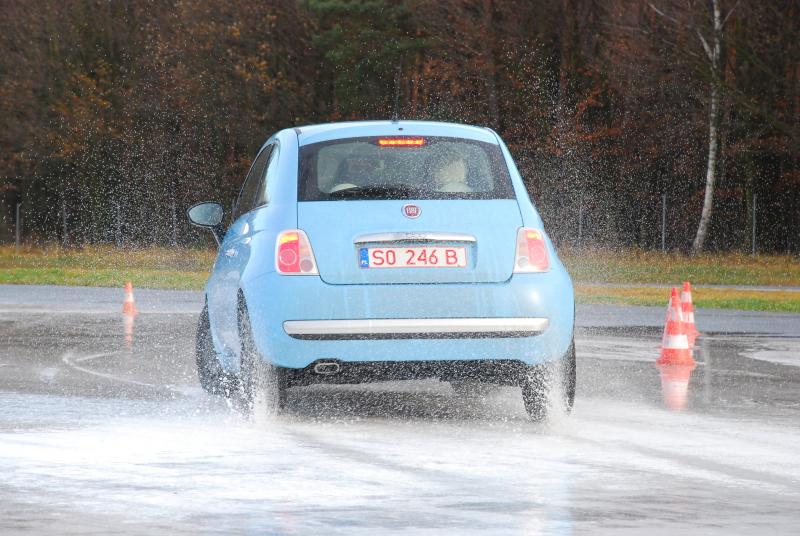

• assessments of ABS and ASR systems on surfaces with limited traction (skid pan)
• assessments of the ability to start on a hill (sloped ramp)
• assessments of the functionality of the steering and suspension systems on various types of routes and surface types
• assessments of the powertrain on various types of routes

• Passenger cars, trucks and buses of all categories
• Use of the method marking the driving path during vehicle movement with a fluid
